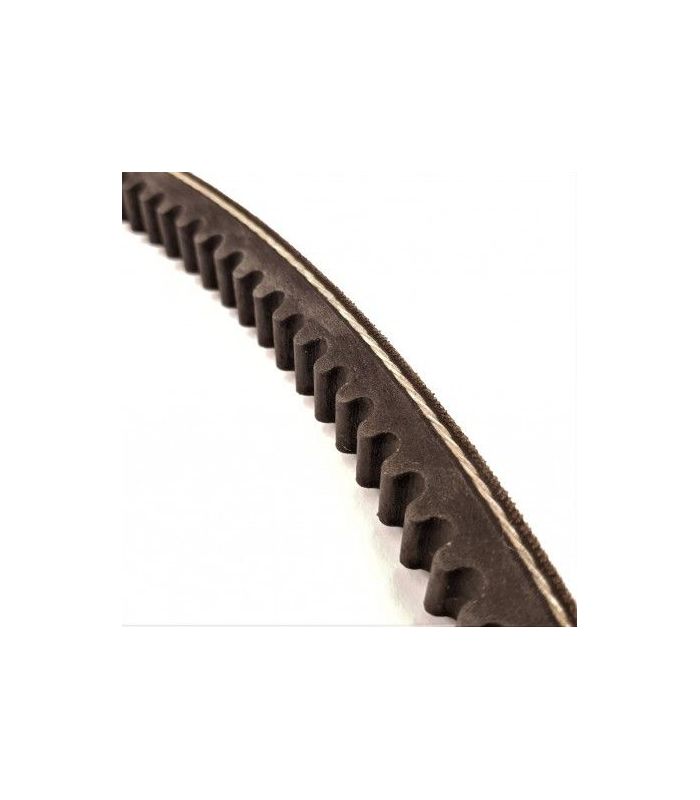

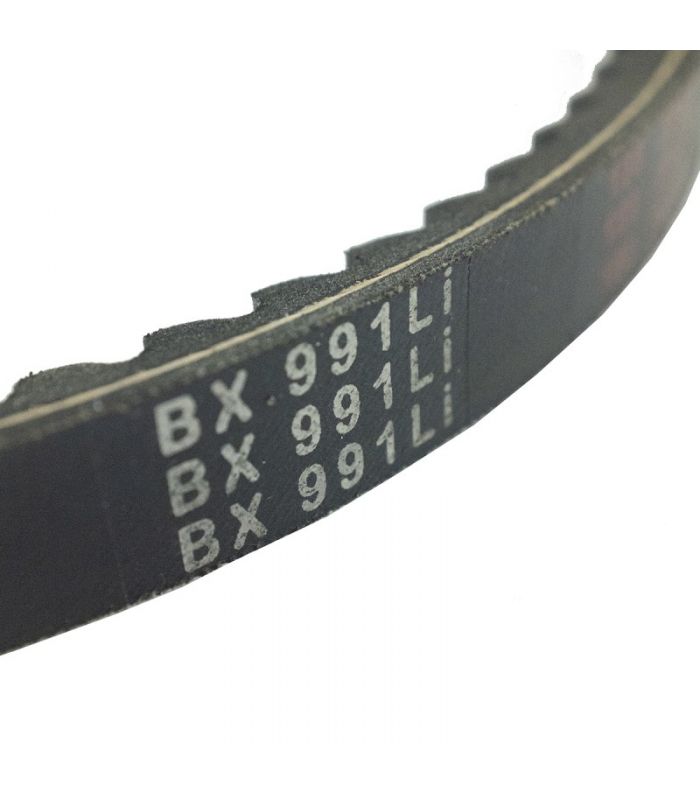

BX Timing Belt

The BX belt has a trapezoidal cross-section. This provides good grip on the pulleys and greater power transmission capacity. BX belts generate less noise than other types of drives.

Technical specifications:

  • Standard according to ISO-4183 ISO-4184 DIN-2215
  • Manufactured according to BS 3790 standard, RMA IP-22 and RMA IP-23.
  • Temperature range -18ºC / 100ºC
  • Maximum linear speed 30 m/sec.
  • Oil resistance
  • Antistatic.

IF YOU CAN'T FIND THE SIZE YOU NEED, CONTACT US.

€9.44 (tax included)
€7.80 (tax excl.)

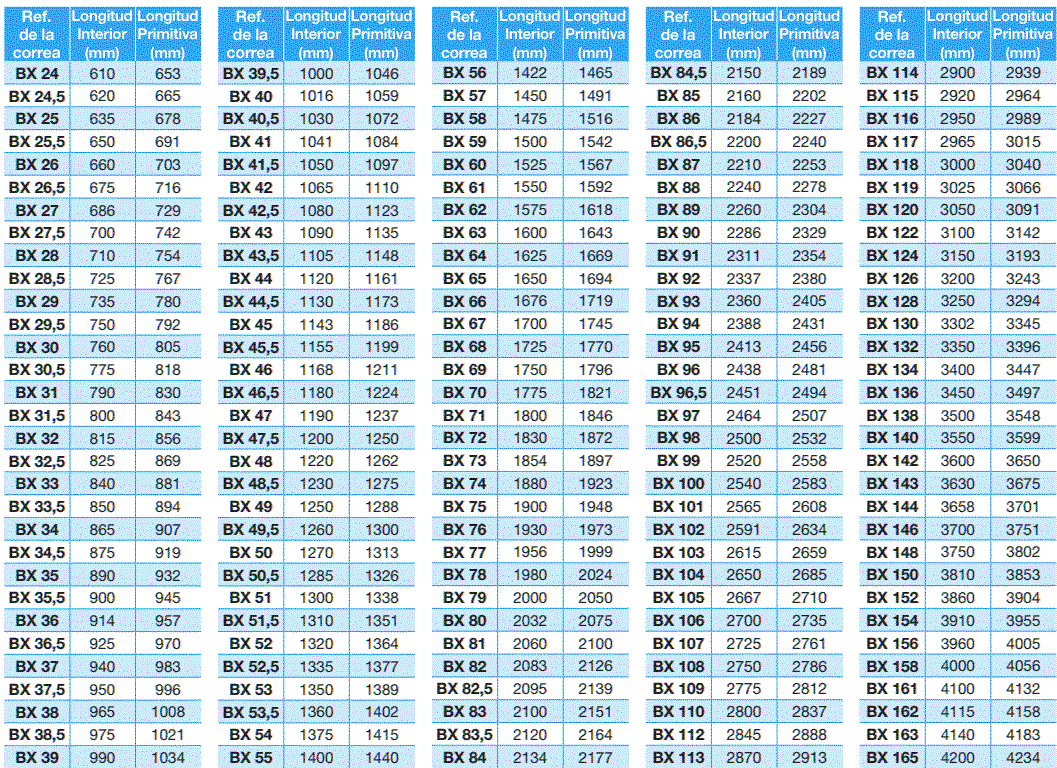

STRAP MEASUREMENT
Reference:
5261000
Description

BX Timing Belt

Product Details
5261000
Comments
