TRAPEZOIDAL BELT B | Buy online at the best price

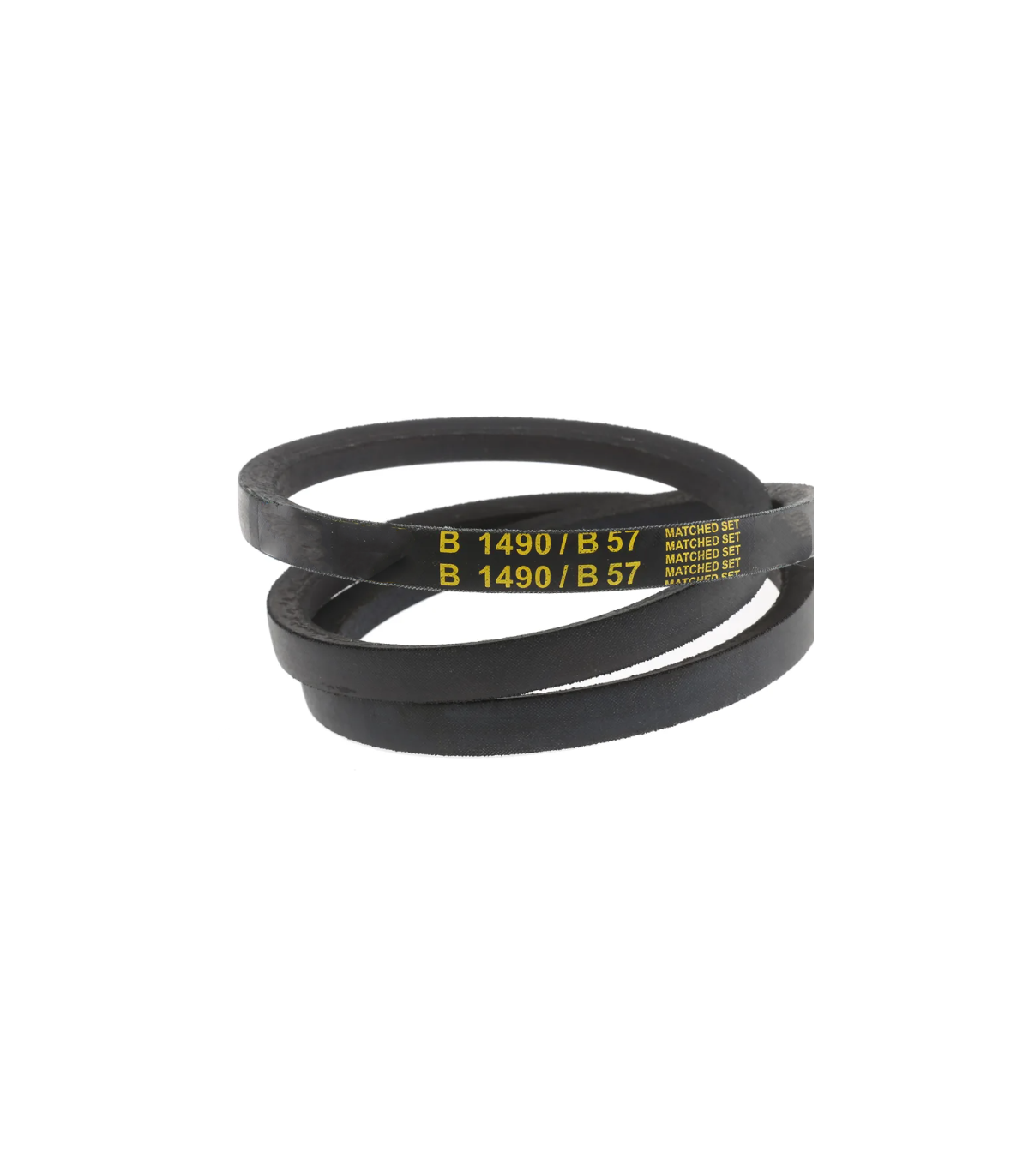

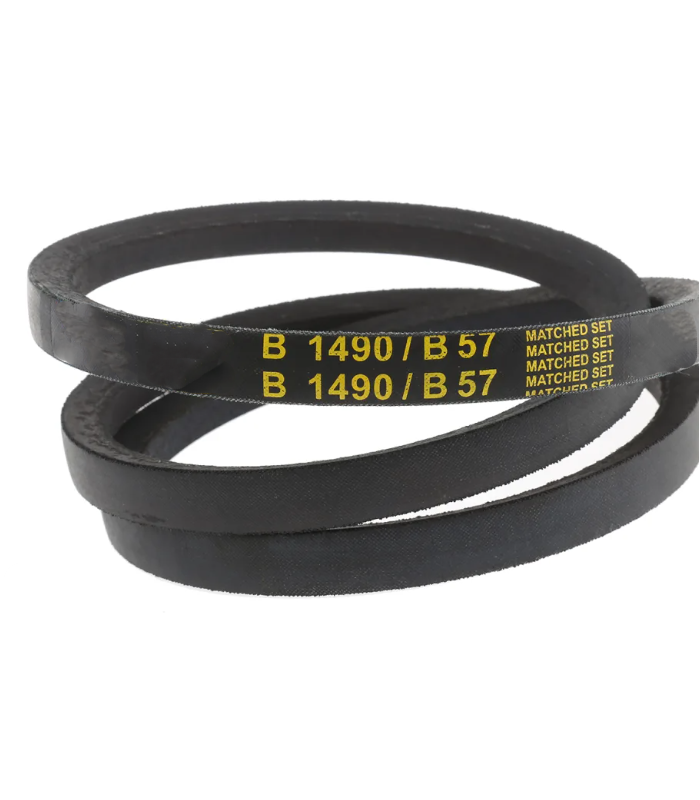

TRAPEZOIDAL BELT B

The V-belt B is designed to transmit motion and power between pulleys in industrial machinery.

Applications: Agricultural machinery, Automotive industry, Industrial machinery or Transportation systems.

Technical specifications:

Manufactured according to ISO-4183, ISO-4184, and DIN-2215
Temperature range -18ºC / 80ºC
Maximum linear speed 30 m/sec.
Oil resistance
Antistatic.

View all V-belts

V-belt B

The trapezoidal belt B It is designed for power transmission in industrial drive systems. Its trapezoidal cross-section ensures a good fit with the pulleys, providing efficient transmission, reliable operation, and good wear resistance.

Common applications

Industrial machinery.
Pumps and compressors.
Fans and air conditioning systems.
Agricultural machinery.
Industrial manufacturing and maintenance equipment.

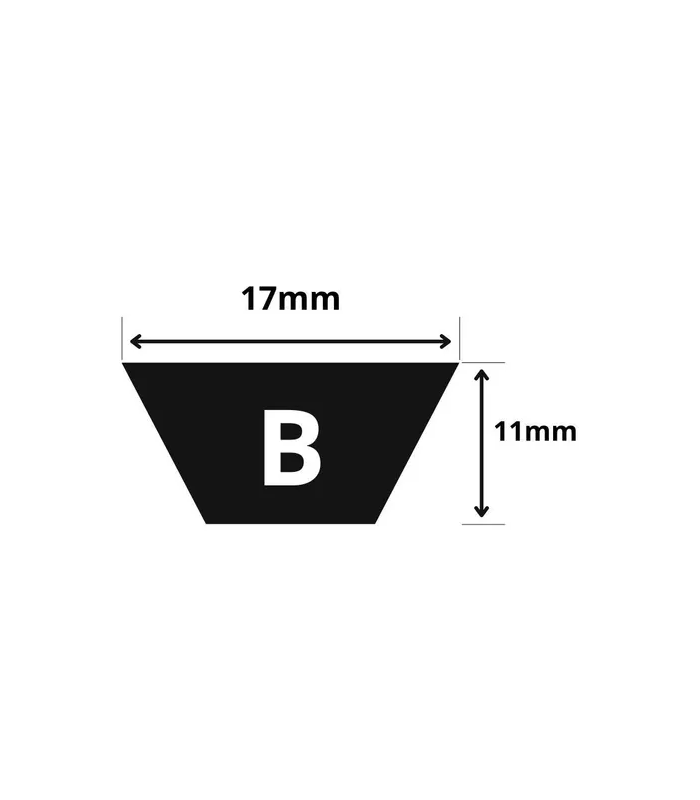

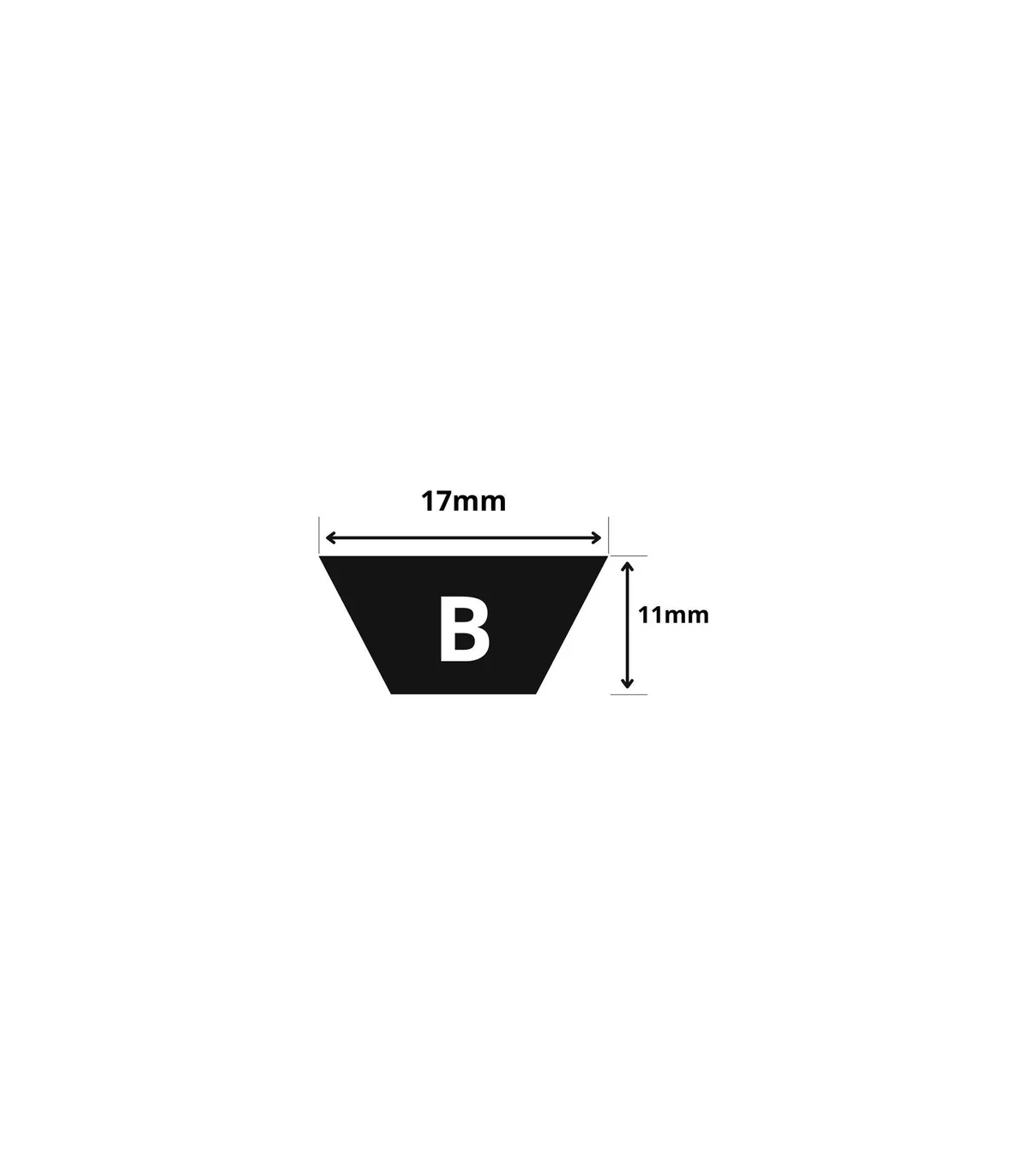

Technical specifications of a V-belt B

Reference	Belt reference	Li (mm)
5253000	B 23	584
5253001	B 25	635
5253002	B 26	660
5253003	B 27	986
5253004	B 28	711
5253005	B 29	737
5253006	B 30	762
5253007	B 31	787
5253008	B 32	813
5253009	B 33	838
5253010	B 34	864
5253011	B 35	889
5253012	B 36	914
5253013	B 37	940
5253014	B 38	965
5253015	B 39	991
5253016	B 40	1016
5253017	B 41	1041
5253018	B 42	1067
5253019	B 43	1092
5253020	B 44	1118
5253021	B 45	1143
5253022	B 46	1168
5253023	B 47	1194
5253024	B 48	1219
5253025	B 49	1245
5253026	B 50	1270
5253027	B 51	1295
5253028	B 52	1321
5253029	B 53	1346
5253030	B 54	1372
5253031	B 55	1397
5253032	B 56	1422
5253033	B 57	1448
5253034	B 58	1473
5253035	B 59	1499
5253036	B 60	1524
5253037	B 61	1549
5253038	B 62	1575
5253039	B 63	1600
5253040	B 64	1626
5253041	B 65	1651
5253042	B 66	1676
5253043	B 67	1702
5253044	B 68	1727
5253045	B 69	1753
5253046	B 70	1778
5253047	B 71	1803
5253048	B 72	1829
5253049	B 73	1854
5253050	B 74	1880
5253051	B 75	1905
5253052	B 76	1930
5253053	B 77	1956
5253054	B 78	1981
5253055	B 79	2007
5253056	B 80	2032
5253057	B 81	2057
5253058	B 82	2083
5253059	B 83	2108
5253060	B 84	2134
5253061	B 85	2159
5253062	B 86	2184
5253063	B 87	2210
5253064	B 88	2235
5253065	B 89	2261
5253066	B 90	2286
5253067	B 91	2311
5253068	B 92	2337
5253069	B 93	2362
5253070	B 94	2388
5253071	B 95	2413
5253072	B 96	2438
5253073	B 97	2464
5253074	B 98	2489
5253075	B 99	2515
5253076	B 100	2540
5253077	B 101	2565
5253078	B 102	2591
5253079	B 103	2616
5253080	B 104	2642
5253081	B 105	2667
5253082	B 106	2692
5253083	B 107	2718
5253084	B 108	2743
5253085	B 110	2794
5253086	B 112	2845
5253087	B 113	2870
5253088	B 114	2896
5253089	B 115	2921
5253090	B 116	2946
5253091	B 117	2972
5253092	B 118	2997
5253093	B 120	3048
5253094	B 122	3099
5253095	B 124	3150
5253096	B 126	3200
5253097	B 128	3251
5253098	B 130	3302
5253099	B 132	3353
5253100	B 134	3404
5253101	B 136	3454
5253102	B 138	3505
5253103	B 140	3556
5253104	B 142	3607
5253105	B 143	3632
5253106	B 144	3658
5253107	B 146	3708
5253108	B 147	3734
5253109	B 148	3759
5253110	B 150	3810
5253111	B 152	3861
5253112	B 154	3912
5253113	B 156	3962
5253114	B 158	4013
5253115	B 160	4064
5253116	B 162	4115
5253117	B 165	4191
5253118	B 167	4242
5253119	B 170	4318
5253120	B 173	4394
5253121	B 177	4496
5253122	B 178	4521
5253123	B 180	4572
5253124	B 187	4750
5253125	B 195	4953
5253126	B 197	5004
5253127	B 204	5182
5253128	B 208	5283
5253129	B 211	5359
5253130	B 224	5690
5253131	B 225	5715
5253132	B 236	5994
5253133	B 240	6096
5253134	B 248	6299
5253135	B 276	7010
5253136	B 394	10008
5253137	B 414	10516
