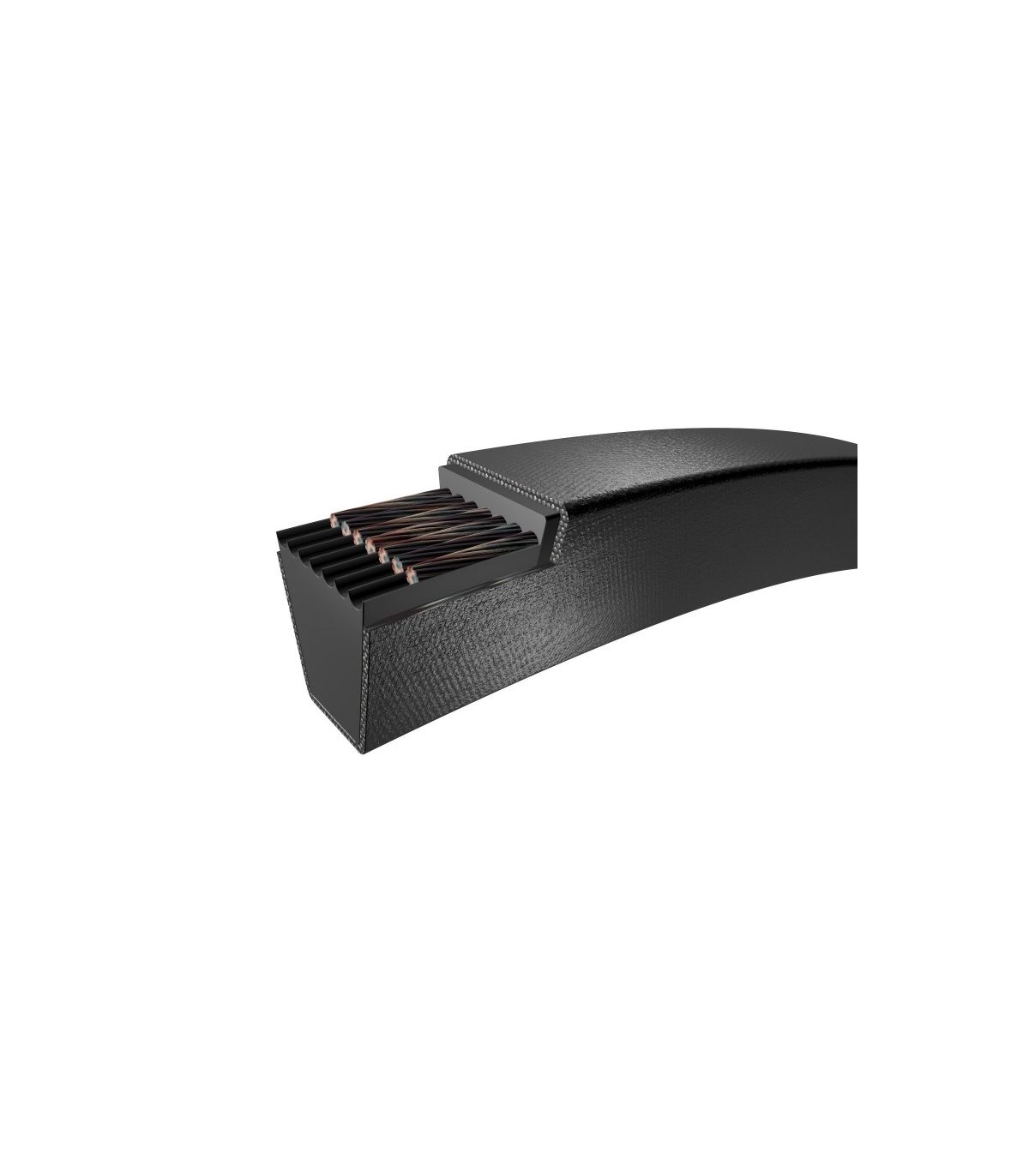

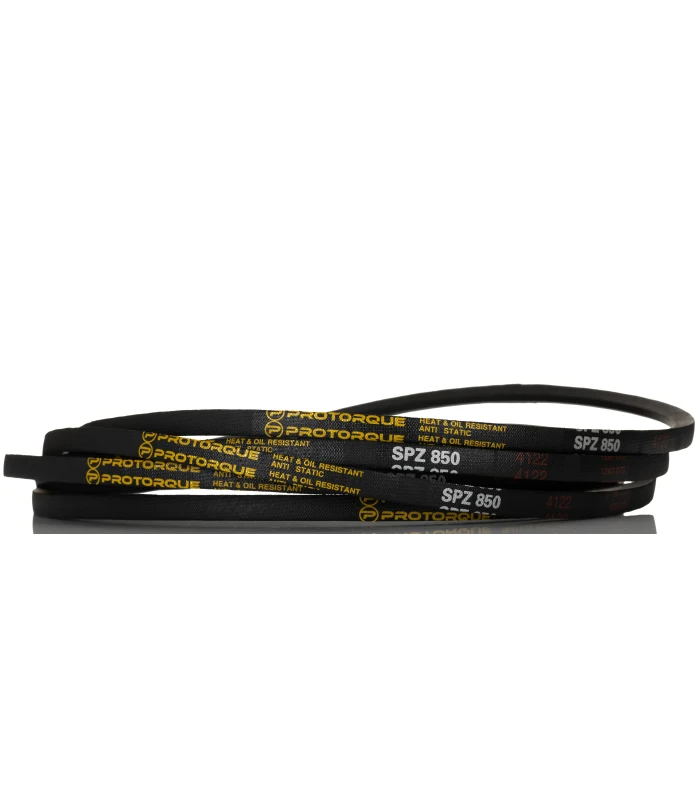

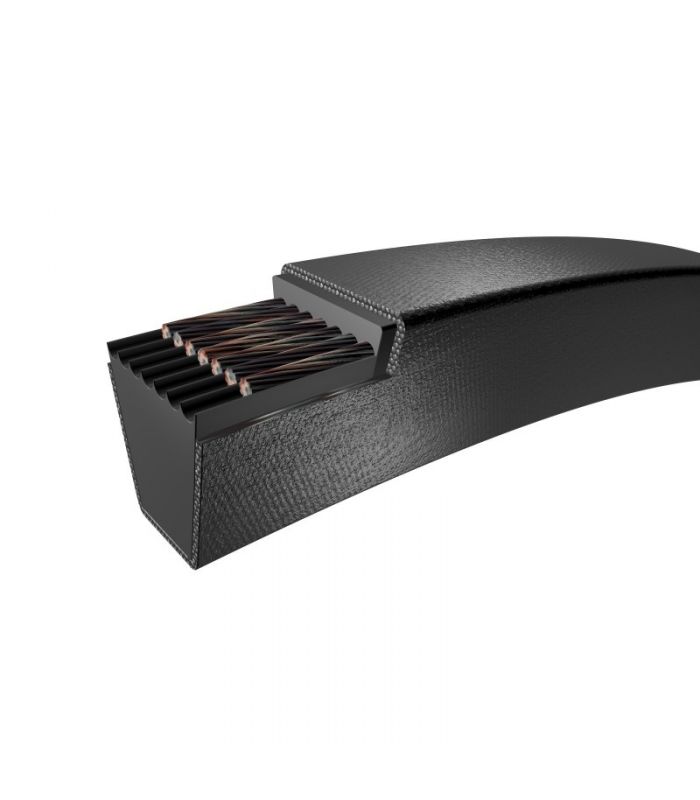

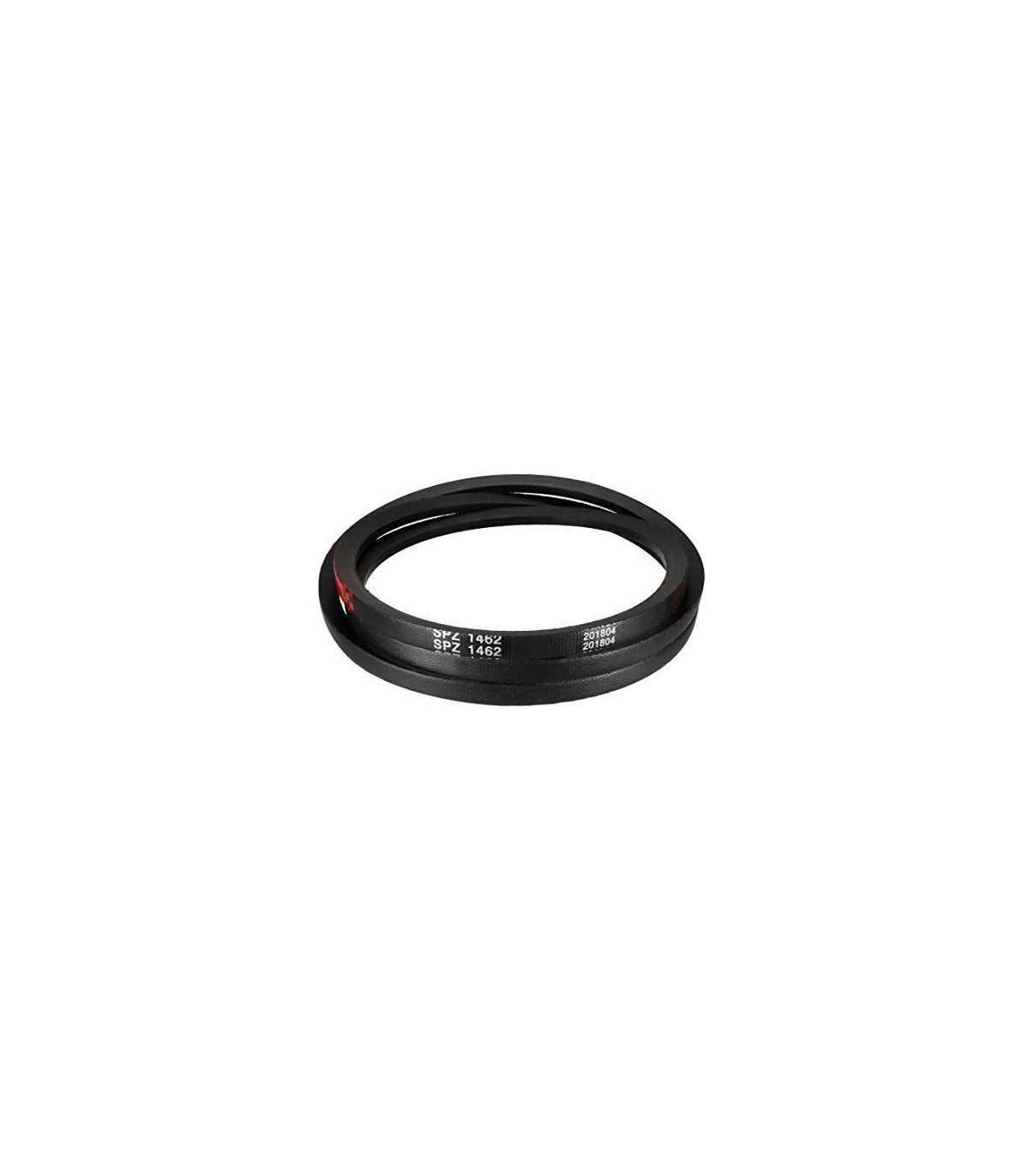

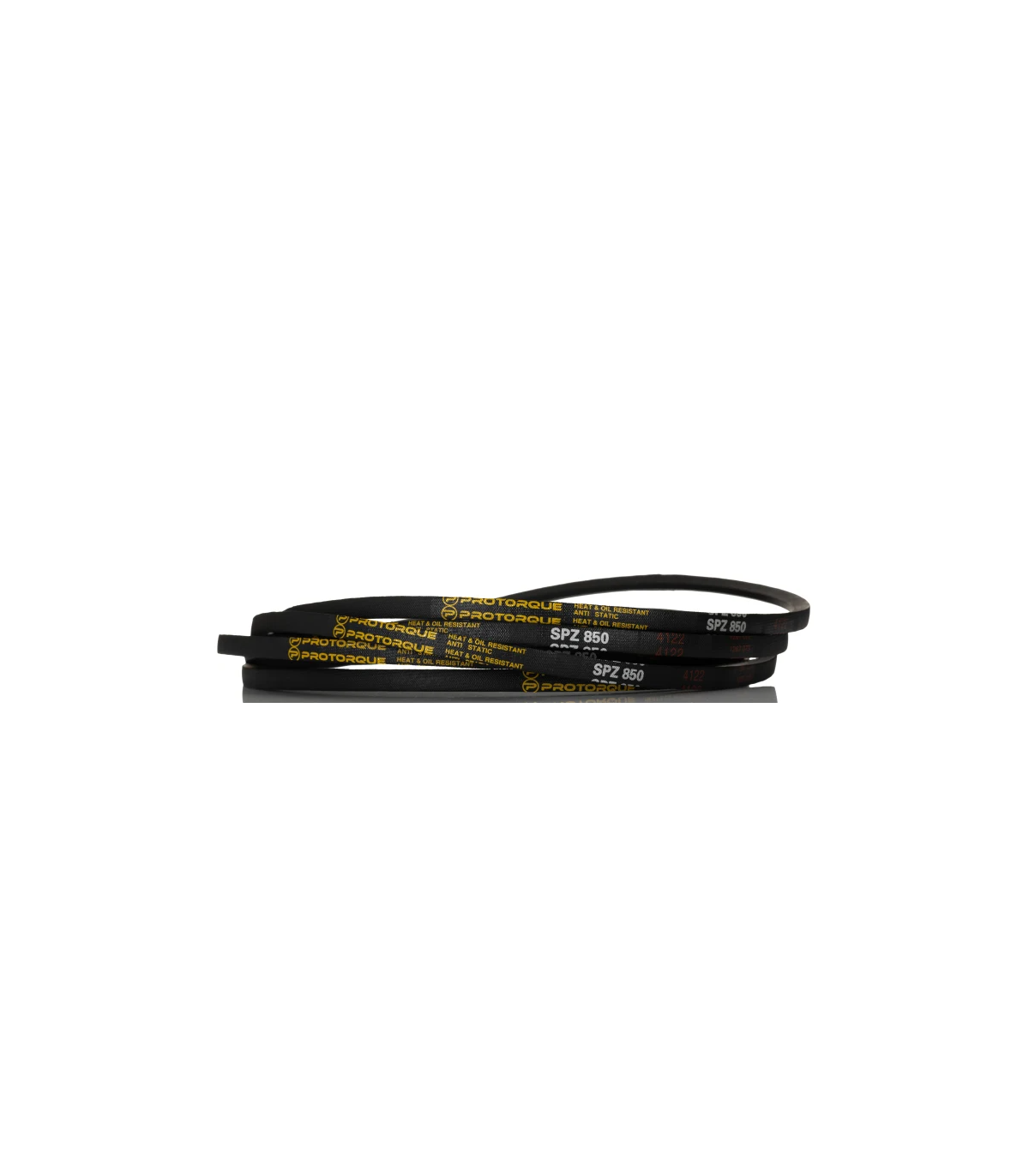

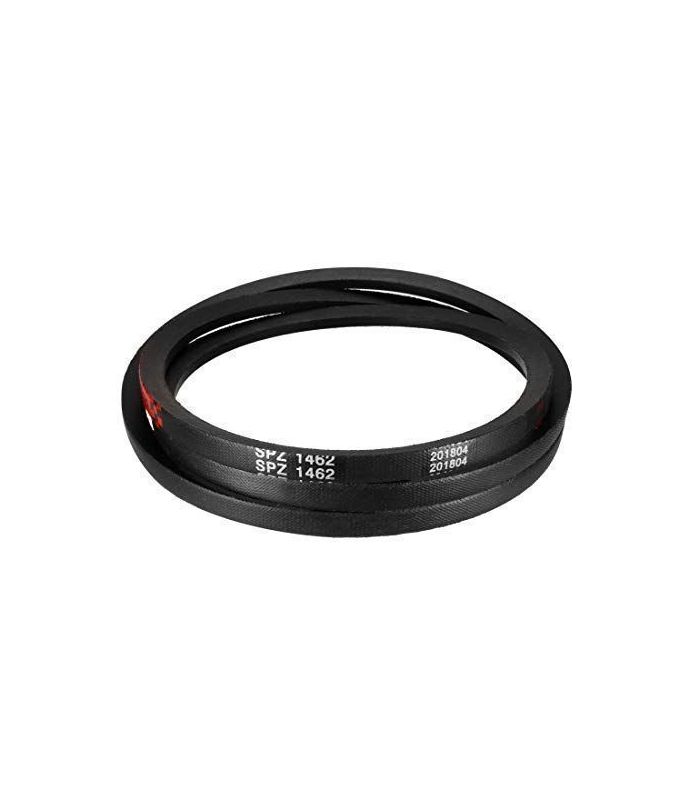

SPZ TRAPEZOIDAL BELT

The SPZ V-belt is a mechanical transmission system that increases the frictional force between the belt and the pulley. Energy is obtained from the friction of a belt with two or more pulleys as they rotate.

Industrial applications, machinery, ventilation, pumps or compressors.

Main features:

Narrow profile SPZ.
Manufactured according to ISO-4183, ISO-4184, and DIN-2215
Temperature range -18ºC / 80ºC
Maximum linear speed 30 m/sec.
Oil resistance
Antistatic.

View all V-belts

SPZ V-belt

The SPZ V-belt is a narrow-section power transmission belt designed to transmit motion and power between pulleys using friction. Its compact design allows for smaller transmissions while maintaining high transmission capacity.

Advantages

Compact and efficient design.
Good power transmission capacity.
Wide range of lengths available.
Suitable for industrial transmissions.

Applications

Industrial machinery
Ventilation and air conditioning systems
Pumps
Compressors
Electric motors
Conveyors
Machine tools
Agricultural equipment
General power transmission systems

Technical specifications for the SPZ trapezoidal belt:

Reference	Belt reference	Pitch length (mm)
5256000	SPZ 487	487
5256001	SPZ 512	512
5256002	SPZ 545	545
5256003	SPZ 562	562
5256004	SPZ 587	587
5256005	SPZ 612	612
5256006	SPZ 630	630
5256007	SPZ 637	637
5256008	SPZ 662	662
5256009	SPZ 670	670
5256010	SPZ 687	687
5256011	SPZ 697	697
5256012	SPZ 710	710
5256013	SPZ 722	722
5256014	SPZ 737	737
5256015	SPZ 750	750
5256016	SPZ 762	762
5256017	SPZ 772	772
5256018	SPZ 787	787
5256019	SPZ 800	800
5256020	SPZ 812	812
5256021	SPZ 825	825
5256022	SPZ 837	837
5256023	SPZ 850	850
5256024	SPZ 862	862
5256025	SPZ 875	875
5256026	SPZ 887	887
5256027	SPZ 900	900
5256028	SPZ 912	912
5256029	SPZ 925	925
5256030	SPZ 937	937
5256031	SPZ 950	950
5256032	SPZ 960	960
5256033	SPZ 962	962
5256034	SPZ 987	987
5256035	SPZ 1000	1000
5256036	SPZ 1010	1010
5256037	SPZ 1012	1012
5256038	SPZ 1024	1024
5256039	SPZ 1037	1037
5256040	SPZ 1047	1047
5256041	SPZ 1060	1060
5256042	SPZ 1080	1080
5256043	SPZ 1087	1087
5256044	SPZ 1112	1112
5256045	SPZ 1120	1120
5256046	SPZ 1137	1137
5256047	SPZ 1140	1140
5256048	SPZ 1150	1150
5256049	SPZ 1162	1162
5256050	SPZ 1180	1180
5256046	SPZ 1137	1137
5256047	SPZ 1140	1140
5256048	SPZ 1150	1150
5256049	SPZ 1162	1162
5256050	SPZ 1180	1180
5256051	SPZ 1187	1187
5256052	SPZ 1200	1200
5256053	SPZ 1212	1212
5256054	SPZ 1237	1237
5256055	SPZ 1250	1250
5256056	SPZ 1262	1262
5256057	SPZ 1270	1270
5256058	SPZ 1287	1287
5256059	SPZ 1312	1312
5256060	SPZ 1320	1320
5256061	SPZ 1337	1337
5256062	SPZ 1347	1347
5256063	SPZ 1362	1362
5256064	SPZ 1387	1387
5256065	SPZ 1400	1400
5256066	SPZ 1412	1412
5256067	SPZ 1420	1420
5256068	SPZ 1437	1437
5256069	SPZ 1462	1462
5256070	SPZ 1487	1487
5256071	SPZ 1500	1500
5256072	SPZ 1512	1512
5256073	SPZ 1520	1520
5256074	SPZ 1537	1537
5256075	SPZ 1562	1562
5256076	SPZ 1587	1587
5256077	SPZ 1600	1600
5256078	SPZ 1612	1612
5256079	SPZ 1632	1632
5256080	SPZ 1637	1637
5256081	SPZ 1650	1650
5256082	SPZ 1662	1662
5256083	SPZ 1687	1687
5256084	SPZ 1700	1700
5256085	SPZ 1737	1737
5256086	SPZ 1762	1762
5256087	SPZ 1787	1787
5256088	SPZ 1800	1800
5256089	SPZ 1812	1812
5256090	SPZ 1837	1837
5256091	SPZ 1850	1850
5256092	SPZ 1862	1862
5256093	SPZ 1887	1887
5256094	SPZ 1900	1900
5256095	SPZ 1937	1937
5256096	SPZ 1987	1987
5256097	SPZ 2000	2000
5256098	SPZ 2037	2037
5256099	SPZ 2060	2060
5256100	SPZ 2087	2087
5256101	SPZ 2120	2120
5256102	SPZ 2137	2137
5256103	SPZ 2160	2160
5256104	SPZ 2187	2187
5256105	SPZ 2240	2240
5256106	SPZ 2280	2280
5256107	SPZ 2287	2287
5256108	SPZ 2300	2300
5256109	SPZ 2360	2360
5256110	SPZ 2430	2430
5256111	SPZ 2450	2450
5256112	SPZ 2487	2487
5256113	SPZ 2500	2500
5256114	SPZ 2540	2540
5256115	SPZ 2650	2650
5256116	SPZ 2690	2690
5256117	SPZ 2800	2800
5256118	SPZ 2840	2840
5256119	SPZ 2900	2900
5256120	SPZ 3000	3000
5256121	SPZ 3150	3150
5256122	SPZ 3170	3170
5256123	SPZ 3350	3350
5256124	SPZ 3550	3550
