SPB V-belt | Buy online at the best price

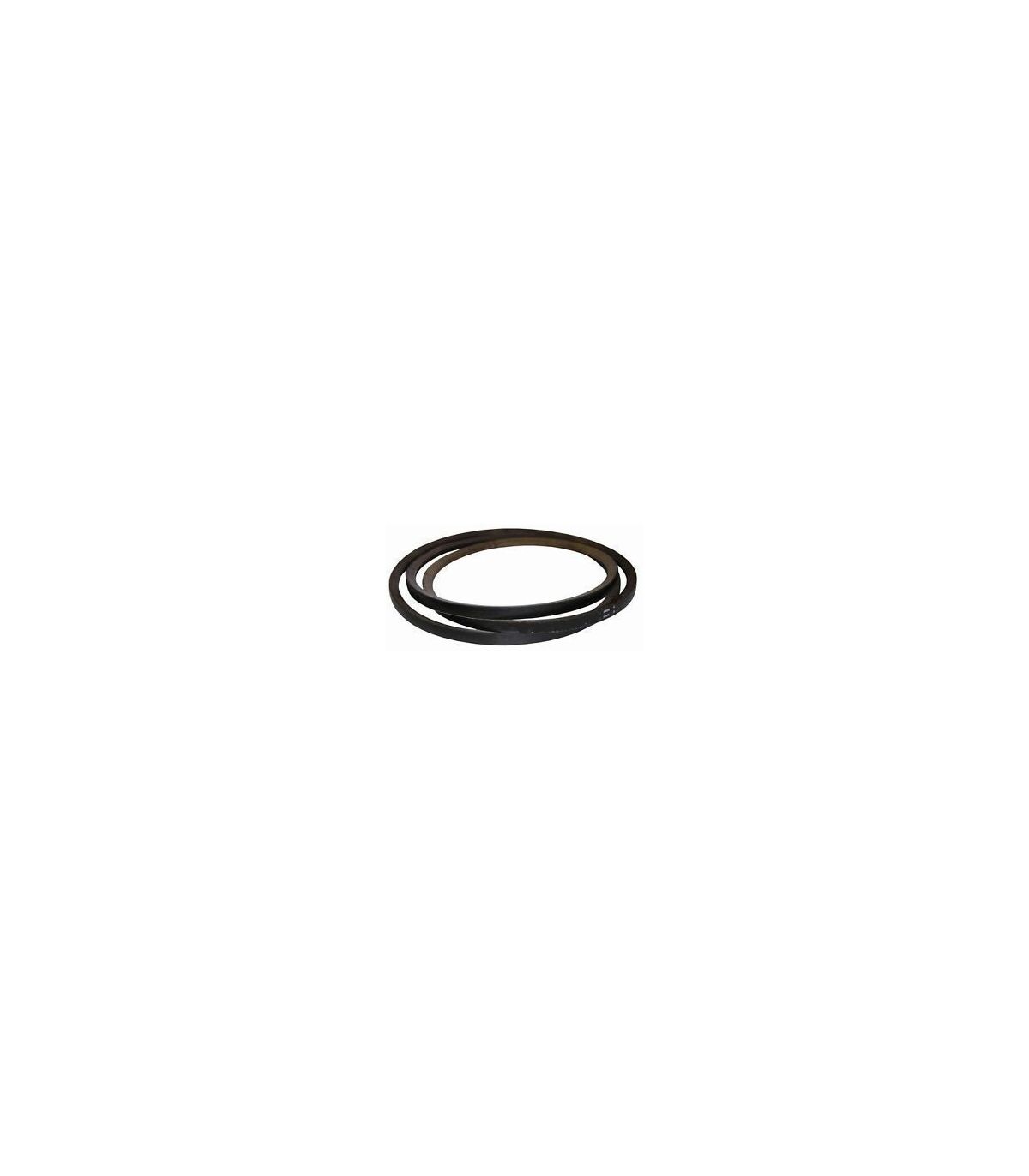

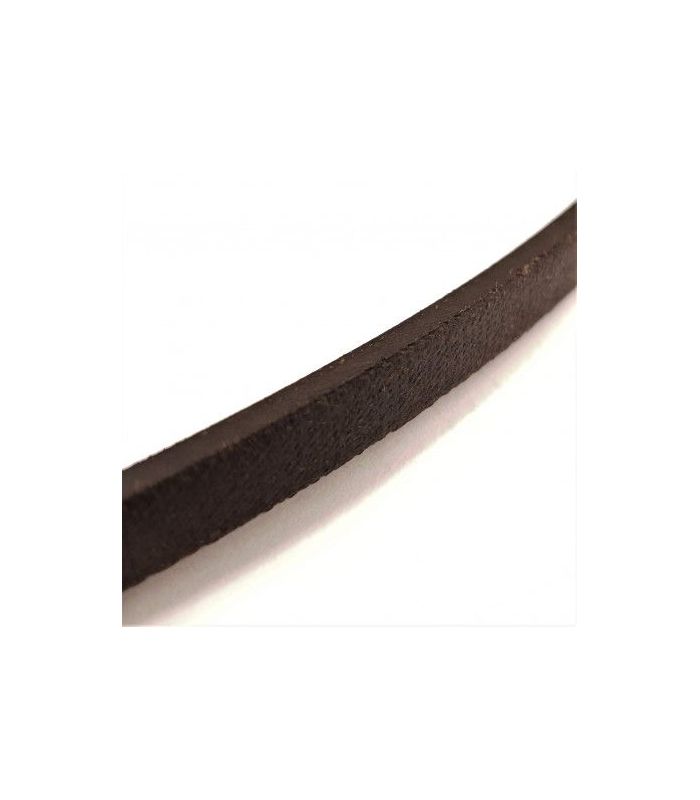

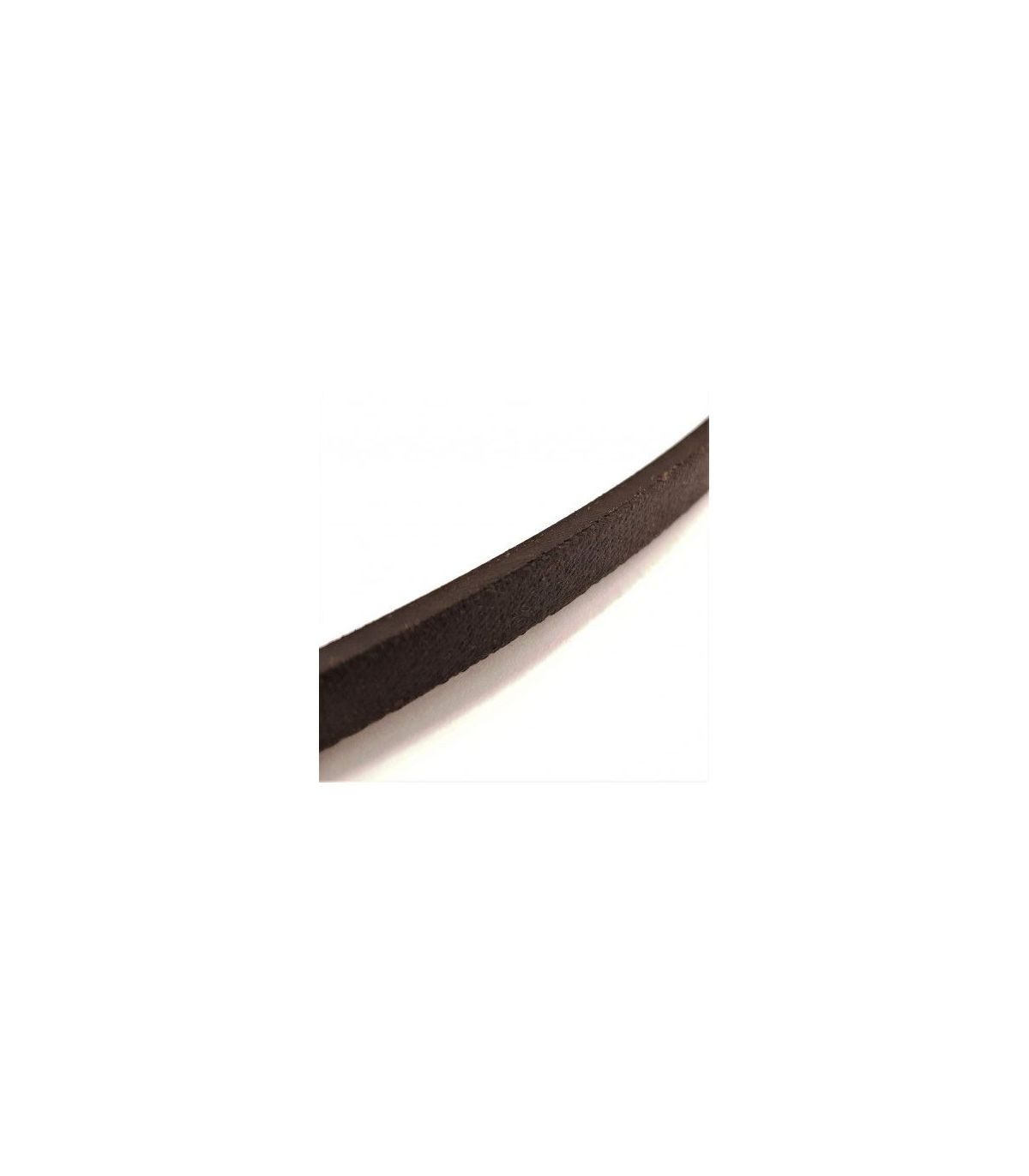

SPB TRAPEZOIDAL BELT

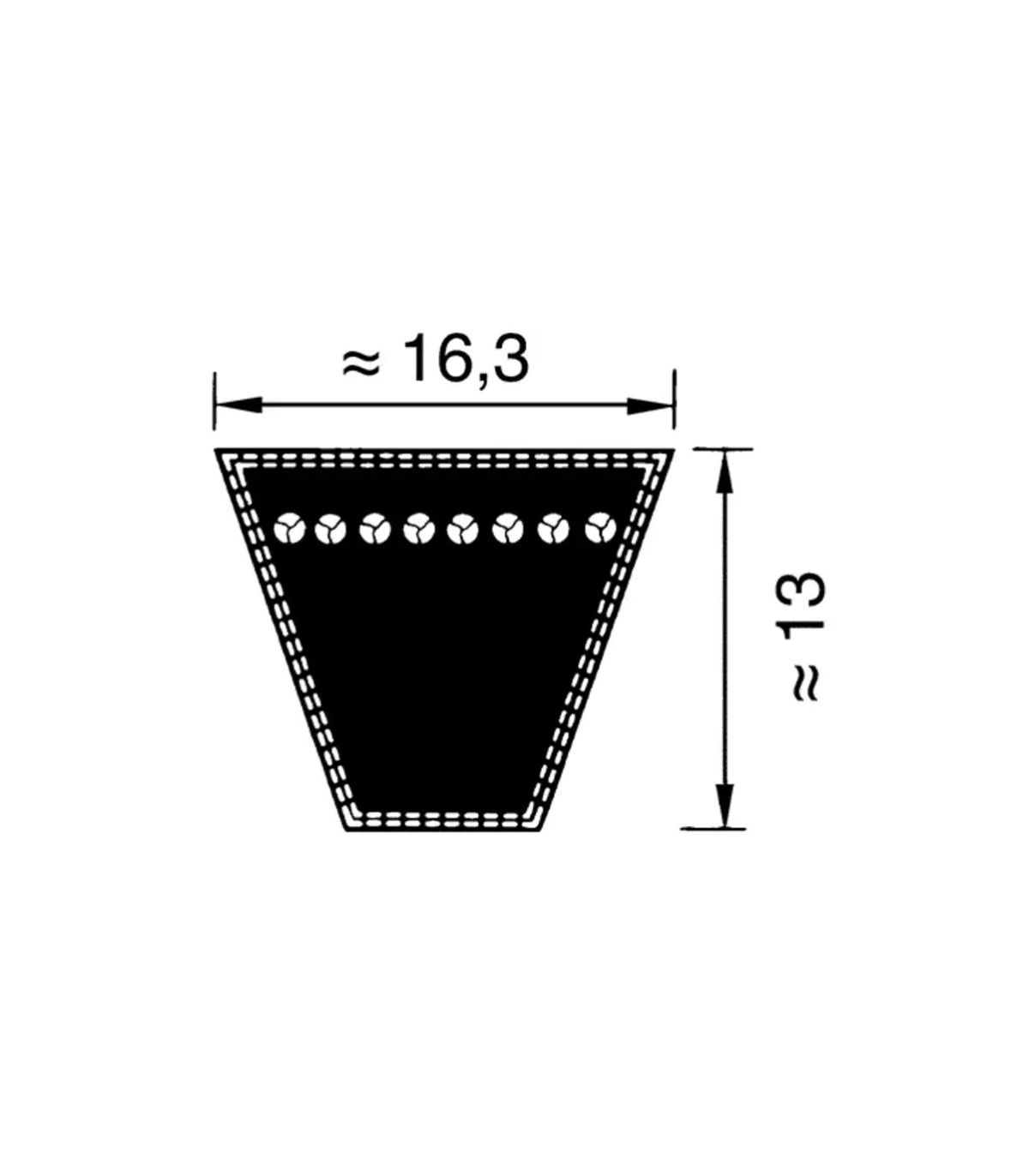

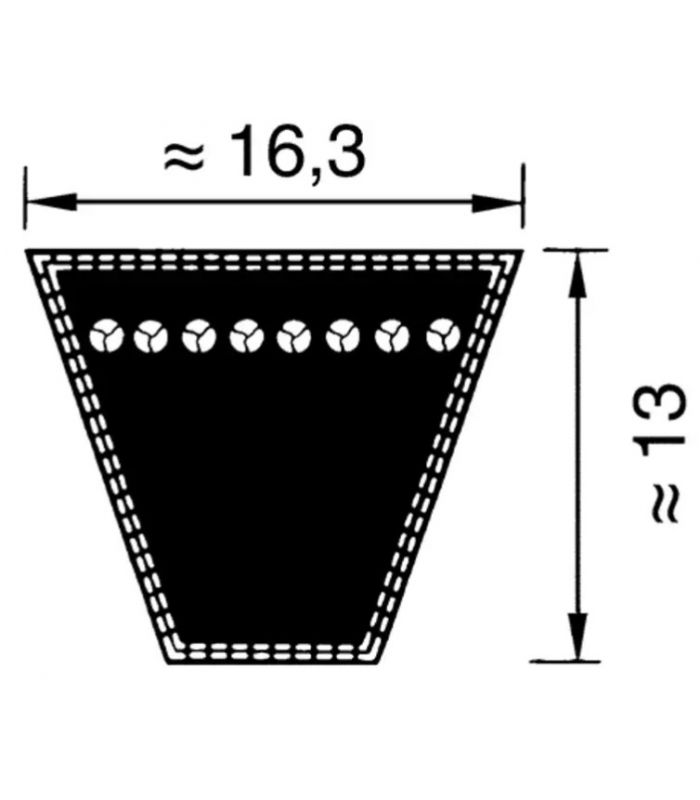

The SPB trapezoidal belt has a narrow trapezoidal profile, SPB 16x13. The SPB profile is characterized by being narrower and having a higher power transmission capacity per unit of width.

Applications: industrial machinery, electric motors, pumps, fans, compressors and other mechanical transmission equipment.

Technical specifications:

Made of rubber.
Manufactured according to ISO-4183, ISO-4184, and DIN-2215
Temperature range -18ºC / 80ºC
Maximum linear speed 30 m/sec.
Oil resistance
Antistatic.

View all V-belts

SPB V-belt

The SPB V-belt is a narrow-profile power transmission belt designed for efficient and reliable operation in demanding industrial applications. Its construction provides good resistance to wear and stretching, ensuring effective power transmission between pulleys.

It is a suitable solution for industrial machinery, electric motors, pumps, fans, compressors and other mechanical transmission equipment.

Technical specifications of an SPB trapezoidal belt:

Reference	Belt reference	Pitch length (mm)
5258000	SPB 1250	1250
5258001	SPB 1320	1320
5258002	SPB 1340	1340
5258003	SPB 1360	1360
5258004	SPB 1400	1400
5258005	SPB 1410	1410
5258006	SPB 1450	1450
5258007	SPB 1500	1500
5258008	SPB 1550	1550
5258009	SPB 1590	1590
5258010	SPB 1600	1600
5258011	SPB 1650	1650
5258012	SPB 1690	1690
5258013	SPB 1700	1700
5258014	SPB 1750	1750
5258015	SPB 1800	1800
5258016	SPB 1850	1850
5258017	SPB 1900	1900
5258018	SPB 1950	1950
5258019	SPB 2000	2000
5258020	SPB 2020	2020
5258021	SPB 2060	2060
5258022	SPB 2120	2120
5258023	SPB 2150	2150
5258024	SPB 2180	2180
5258025	SPB 2240	2240
5258026	SPB 2280	2280
5258027	SPB 2300	2300
5258028	SPB 2360	2360
5258029	SPB 2410	2410
5258030	SPB 2430	2430
5258031	SPB 2500	2500
5258032	SPB 2530	2530
5258033	SPB 2600	2600
5258034	SPB 2650	2650
5258035	SPB 2680	2680
5258036	SPB 2720	2720
5258037	SPB 2760	2760
5258038	SPB 2800	2800
5258039	SPB 2840	2840
5258040	SPB 2850	2850
5258041	SPB 2900	2900
5258042	SPB 2990	2990
5258043	SPB 3000	3000
5258044	SPB 3070	3070
5258045	SPB 3150	3150
5258046	SPB 3170	3170
5258047	SPB 3250	3250
5258048	SPB 3340	3340
5258049	SPB 3350	3350
5258050	SPB 3450	3450
5258051	SPB 3550	3550
5258052	SPB 3650	3650
5258053	SPB 3750	3750
5258054	SPB 3800	3800
5258055	SPB 4000	4000
5258056	SPB 4060	4060
5258057	SPB 4250	4250
5258058	SPB 4310	4310
5258059	SPB 4370	4370
5258060	SPB 4500	4500
5258061	SPB 4560	4560
5258062	SPB 4620	4620
5258063	SPB 4750	4750
5258064	SPB 4820	4820
5258065	SPB 5000	5000
5258066	SPB 5300	5300
5258067	SPB 5380	5380
5258068	SPB 5600	5600
5258069	SPB 6000	6000
5258070	SPB 6300	6300
5258071	SPB 6340	6340
5258072	SPB 6700	6700
5258073	SPB 7100	7100
5258074	SPB 7500	7500
5258075	SPB 8500	8500
