The Z trapezoidal belt stands out for its high mechanical resistance and good working conditions at high and low temperatures.
Applications: Agricultural machinery, Industrial machinery, Conveyors, Production lines.
Technical specifications:
Contact us if you cannot find the desired size.

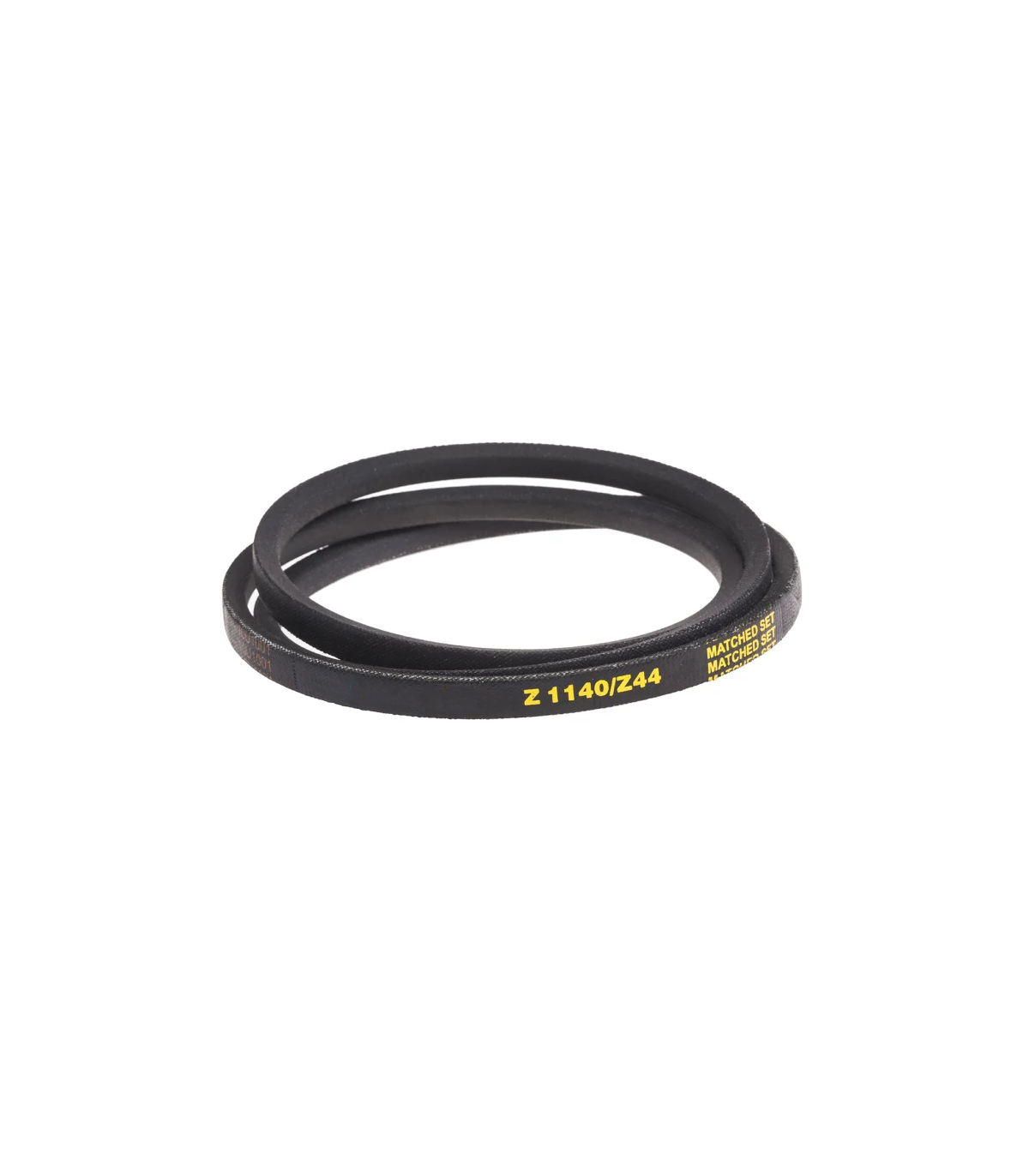

The Z-belt is a drive belt designed to transmit motion and power between pulleys in machinery and mechanical equipment. Its compact design makes it suitable for light-duty drives and applications requiring a reliable and functional solution.
Suitable for power transmission systems in light industrial machinery, electric motors, fans, pumps and other mechanical equipment compatible with the Z profile.

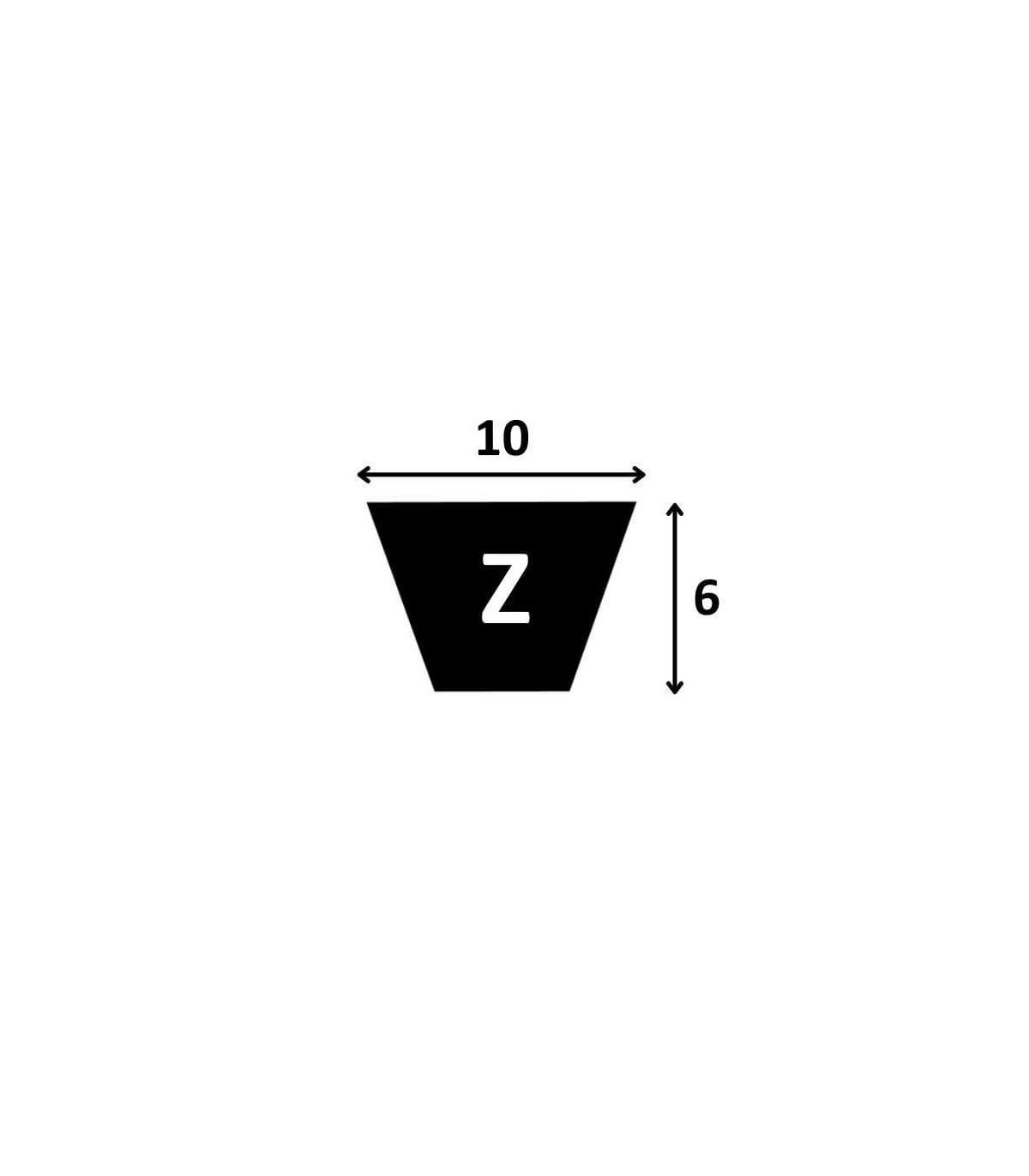

Technical specifications of the Z-belt:
| Reference | Belt reference | Li (mm) |
| 5251000 | Z 13 | 330 |
| 5251001 | Z 14 | 356 |
| 5251002 | Z 14 1/2 | 368 |
| 5251003 | Z 15 | 381 |
| 5251004 | Z 15 1/2 | 394 |
| 5251005 | Z 16 | 406 |
| 5251006 | Z 17 | 432 |
| 5251007 | Z 17 1/2 | 445 |
| 5251008 | Z 18 | 457 |
| 5251009 | Z 19 | 483 |
| 5251010 | Z 20 | 508 |
| 5251011 | Z 21 | 533 |
| 5251012 | Z 21 1/2 | 546 |
| 5251013 | Z 22 | 559 |
| 5251014 | Z 22 1/2 | 572 |
| 5251015 | Z 23 | 584 |
| 5251016 | Z 23 1/2 | 597 |
| 5251017 | Z 24 | 610 |
| 5251018 | Z 24.5 | 622 |
| 5251019 | Z 25 | 635 |
| 5251020 | Z 26 | 660 |
| 5251021 | Z 27 | 686 |
| 5251022 | Z 27 1/2 | 699 |
| 5251023 | Z 28 | 711 |
| 5251024 | Z 29 | 737 |
| 5251025 | Z 29 1/2 | 749 |
| 5251026 | Z 30 | 762 |
| 5251027 | Z 30 1/2 | 775 |
| 5251028 | Z 31 | 787 |
| 5251029 | Z 32 | 813 |
| 5251030 | Z 33 | 838 |
| 5251031 | Z 33 1/2 | 851 |
| 5251032 | Z 34 | 864 |
| 5251033 | Z 34 1/2 | 876 |
| 5251034 | Z 35 | 889 |
| 5251035 | Z 36 | 914 |
| 5251036 | Z 37 | 940 |
| 5251037 | Z 37 1/2 | 959 |
| 5251038 | Z 38 | 965 |
| 5251039 | Z 39 | 991 |
| 5251040 | Z 40 | 1016 |
| 5251041 | Z 40 1/2 | 1029 |
| 5251042 | Z 41 | 1041 |
| 5251043 | Z 42 | 1092 |
| 5251044 | Z 42 1/2 | 1080 |
| 5251045 | Z 43 | 1092 |
| 5251046 | Z 44 | 1118 |
| 5251047 | Z 45 | 1143 |
| 5251048 | Z 46 | 1168 |
| 5251049 | Z 46 1/2 | 1181 |
| 5251050 | Z 47 | 1194 |
| 5251051 | Z 48 | 1219 |
| 5251052 | Z 49 | 1245 |
| 5251053 | Z 50 | 1270 |
| 5251054 | Z 51 | 1295 |
| 5251055 | Z 52 | 1321 |
| 5251056 | Z 53 | 1346 |
| 5251057 | Z 54 | 1372 |
| 5251058 | Z 55 | 1397 |
| 5251059 | Z 56 | 1422 |
| 5251060 | Z 57 | 1448 |
| 5251061 | Z 58 | 1473 |
| 5251062 | Z 59 | 1499 |
| 5251063 | Z 59 1/2 | 1511 |
| 5251064 | Z 60 | 1524 |
| 5251065 | Z 61 | 1549 |
| 5251066 | Z 62 | 1575 |
| 5251067 | Z 63 | 1600 |
| 5251068 | Z 64 | 1626 |
| 5251069 | Z 65 | 1651 |
| 5251070 | Z 66 | 1676 |
| 5251071 | Z 67 | 1702 |
| 5251072 | Z 68 | 1727 |
| 5251073 | Z 73 | 1854 |
| 5251074 | Z 85 | 2159 |
| 5251075 | Z 93 | 2362 |
