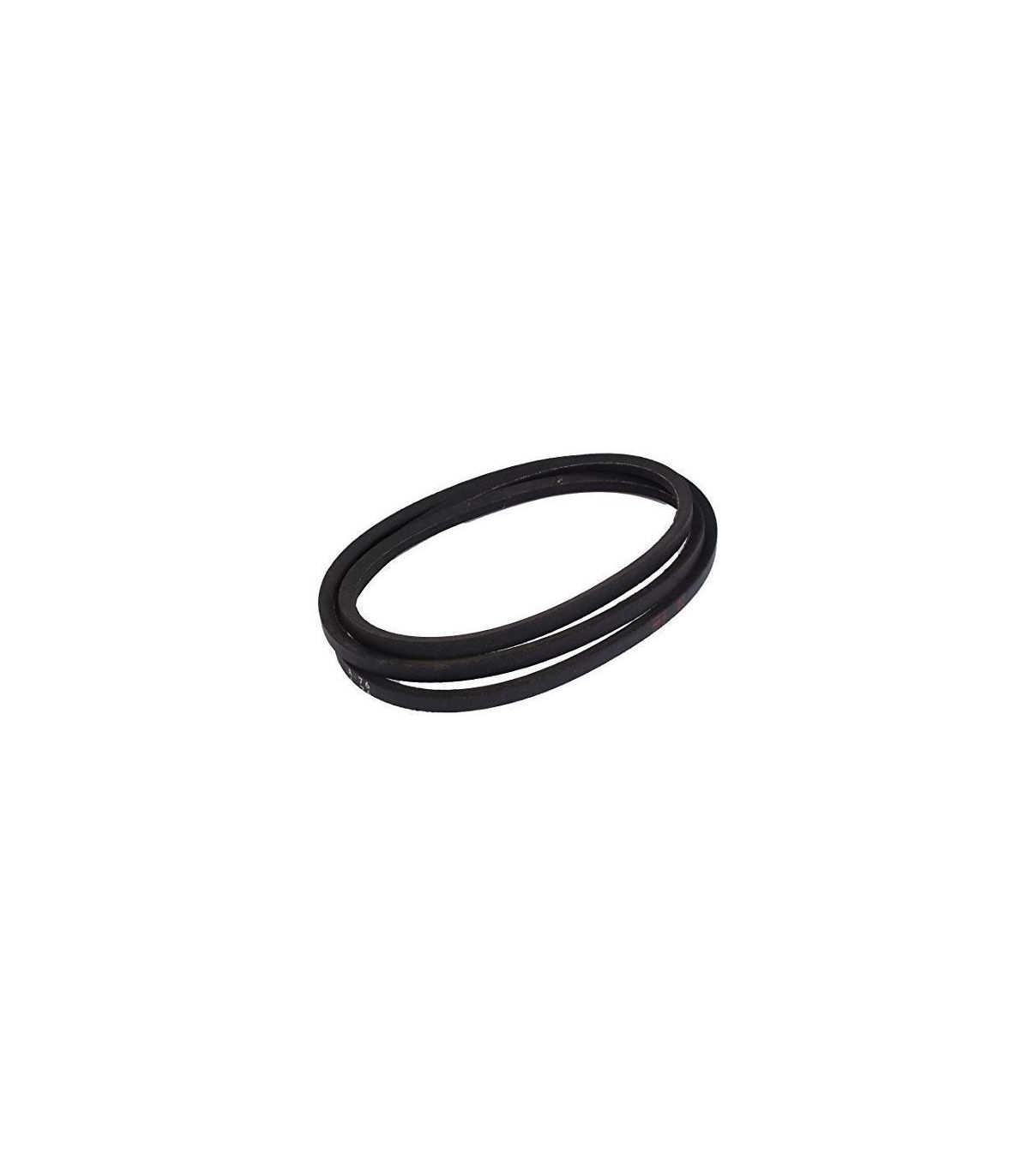

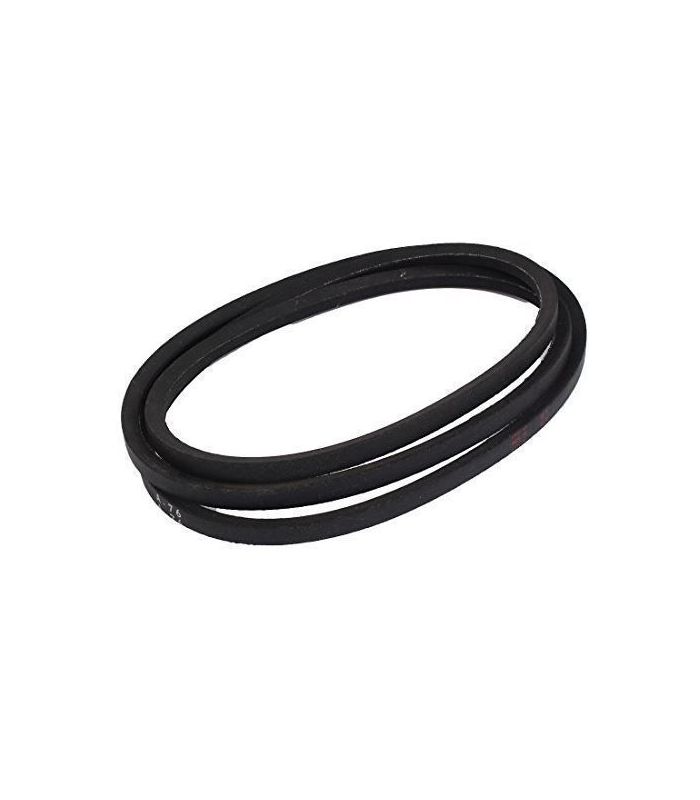

TRAPEZOIDAL BELT D

The D-belt is a power transmission element designed for industrial applications that require high transmission capacity and reliable, continuous operation.

Typical applications: Industrial machinery, Agriculture, Automotive.

Technical specifications:

Manufactured according to ISO-4183, ISO-4184, and DIN-2215
Temperature range -18ºC / 80ºC
Max. linear speed 30 m/sec.
Oil resistance
Antistatic.

View all V-belts

D-belt

The D-belt is a power transmission element designed for industrial applications that require high transmission capacity and reliable, continuous operation.

Applications

Industrial machinery
Pumps and compressors
Fans
Generators
Agricultural equipment
Machine tools
Industrial drive systems

Advantages

High power transmission capacity.
Good abrasion resistance.
Flexibility.
Long service life.
Easy installation and maintenance

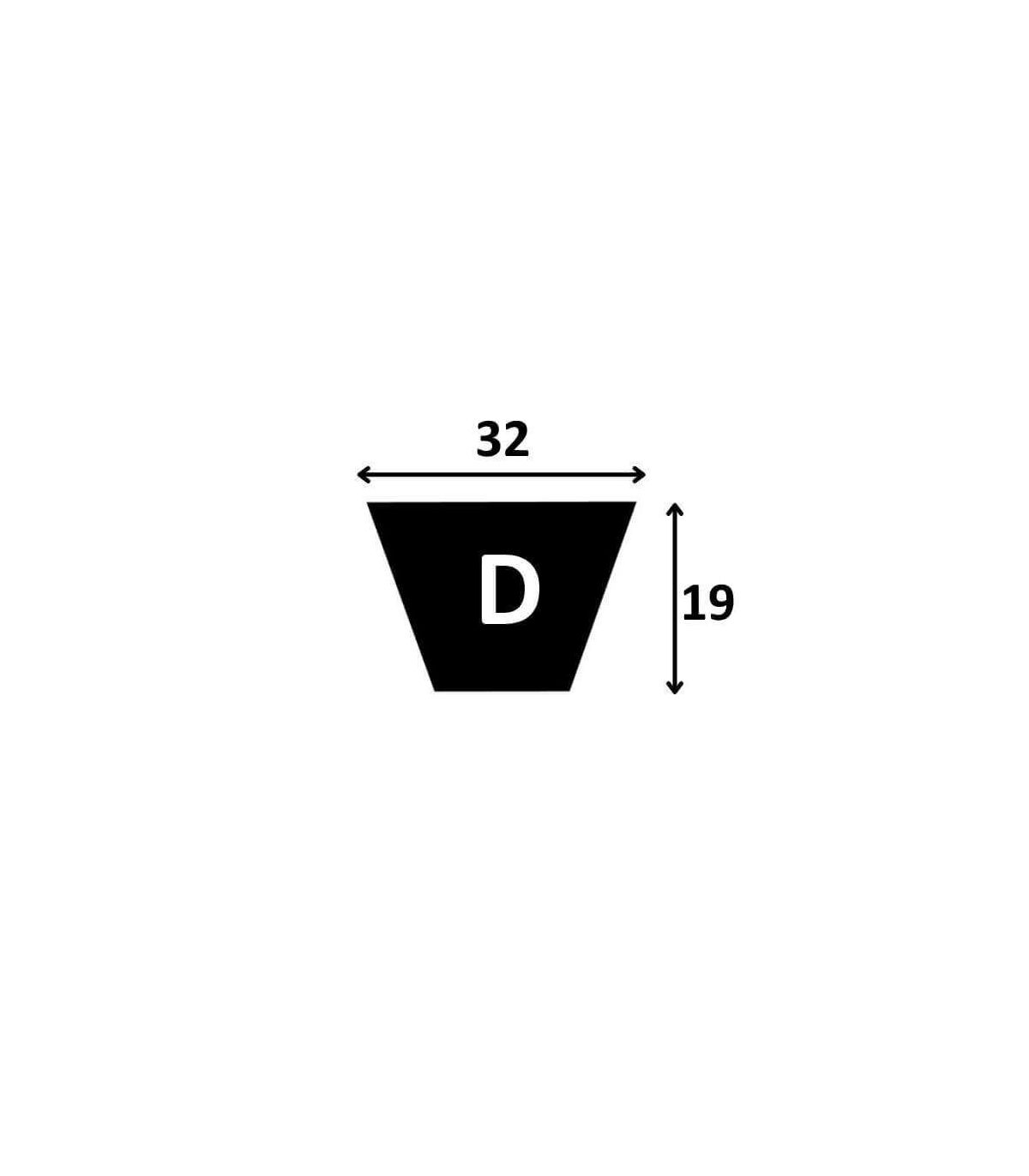

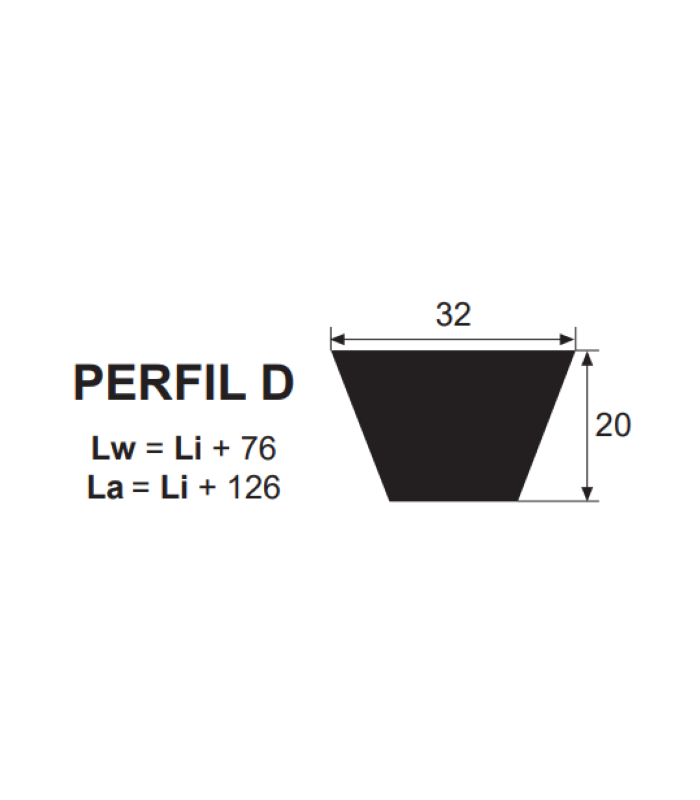

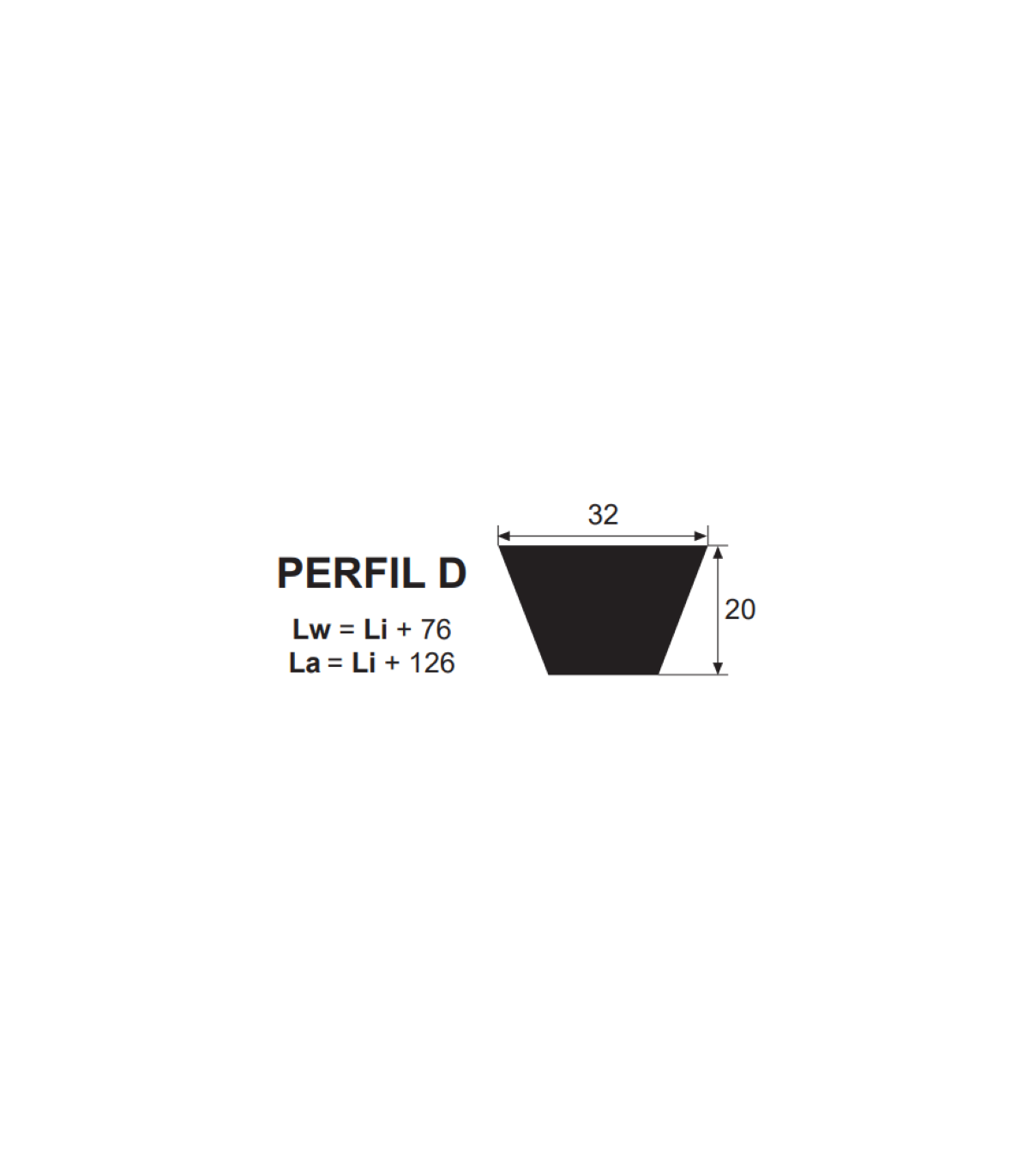

Technical specifications of a D-belt

Reference	Belt reference	Pitch length (mm)
5255000	D 98	2489
5255001	D 105	2667
5255002	D 112	2845
5255003	D 118	2997
5255004	D 125	3175
5255005	D 128	3251
5255006	D 135	3429
5255007	D 136	3454
5255008	D 140	3556
5255009	D 144	3658
5255010	D 148	3759
5255011	D 154	3912
5255012	D 162	4115
5255013	D 163	4140
5255014	D 165	4191
5255015	D 167	4242
5255016	D 173	4394
5255017	D 180	4572
5255018	D 187	4750
5255019	D 195	4953
5255020	D 197	5004
5255021	D 204	5182
5255022	D 208	5283
5255023	D 210	5334
5255024	D 220	5588
5255025	D 223	5664
5255026	D 225	5715
5255027	D 238	6045
5255028	D 240	6096
5255029	D 248	6299
5255030	D 250	6350
5255031	D 264	6706
5255032	D 270	6858
5255033	D 280	7112
5255034	D 298	7569
5255035	D 300	7620
5255036	D 314	7976
5255037	D 316	8026
5255038	D 330	8382
5255039	D 335	8509
5255040	D 345	8763
5255041	D 354	8992
5255042	D 360	9144
5255043	D 374	9500
5255044	D 380	9652
5255045	D 394	10008
5255046	D 430	10922
5255047	D 441	11201
5255048	D 480	12192
