JIC Wall Pass-Through Elbow

JIC Wall Pass-Through Elbow

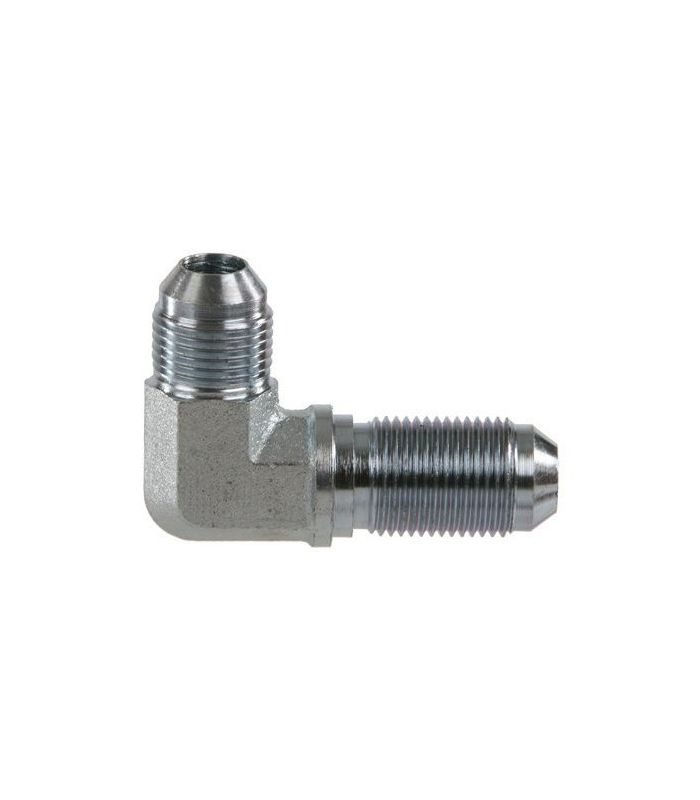

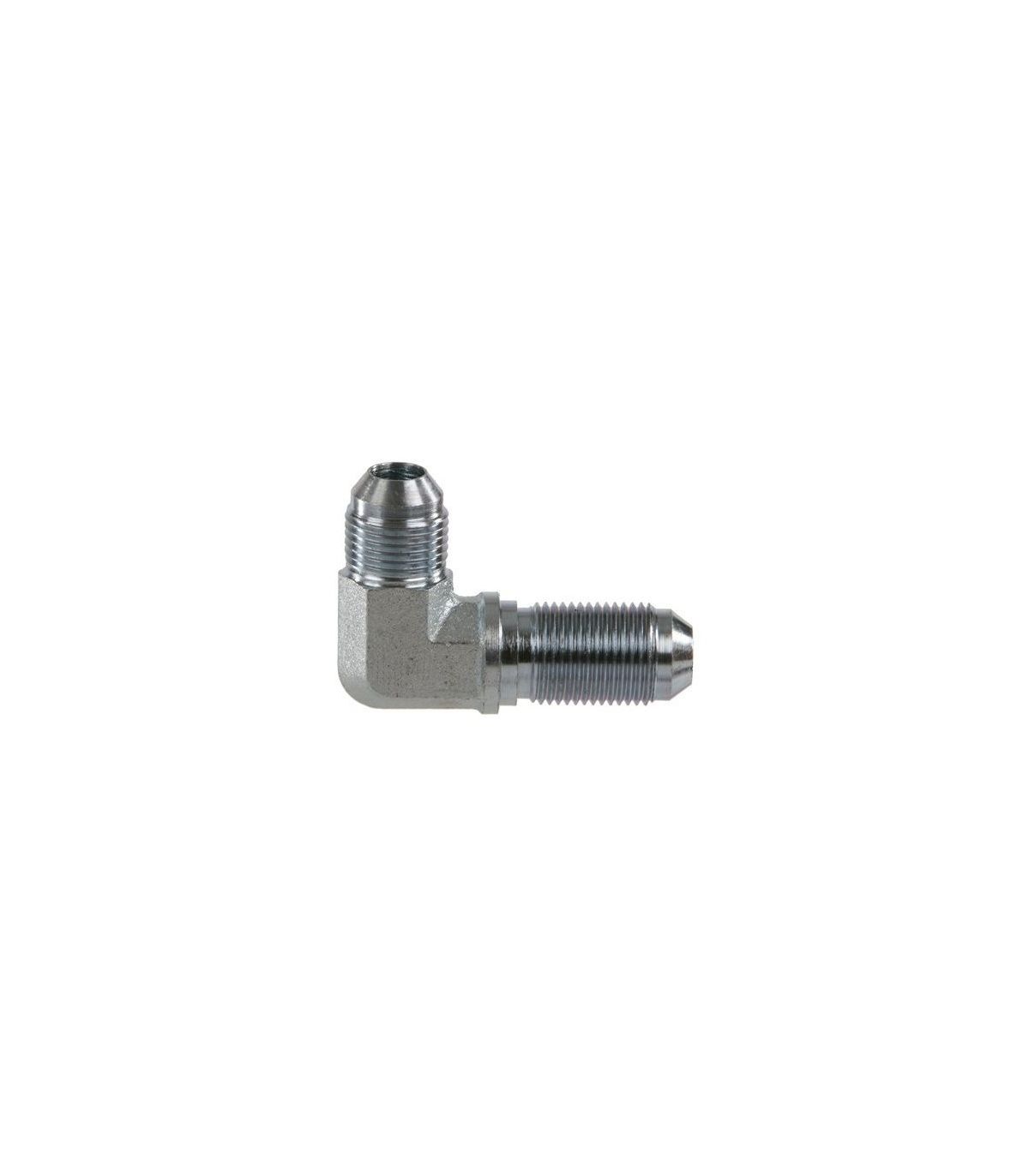

JIC through-wall elbow

A JIC through-wall elbow is a hydraulic fitting designed to connect a line by means of a 90° turn and allow watertight passage through a panel, wall or bulkhead.

Main features :

  • SAE J-514 standard fitting (ISO 8434-2)
  • Seamless coupling.
  • Made of carbon steel.
  • Fittings for 37° flared pipe
  • High mechanical assembly security.
  • Max. pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.

Supplied without nut

€9.16 (tax included)
€7.57 (tax excl.)
THREAD TYPE
Reference:
45150001
Description

JIC through-wall elbow

A JIC through-wall elbow is a hydraulic fitting designed to connect a line with a 90° turn , allowing a watertight passage through a panel, wall, or bulkhead (through-wall function). It is a 90° elbow fitting with a through-wall thread for securing it to a surface with a nut, and a JIC connection.

Main features

  • Metal-to-metal sealing (37° cone)
  • High resistance to pressure and vibration
  • Secure and detachable assembly
  • Made of carbon steel

Applications

  • Industrial hydraulic systems
  • Mobile machinery
  • Agricultural and public works equipment
  • Installations where a line must pass through a panel with a change of direction

Technical specifications of a JIC through-wall elbow:

CODO PASAMUROS JIC

Product Details
45150001
Comments
12 other products in the same category:
JIC MALE PLUG

€1.24 (tax excl.)
€1.50 (tax included)
A JIC male plug is used to securely and watertightly close or seal a female JIC port or connection. Common applications: Hydraulic systems in heavy machinery, Construction and mining equipment, High pressure systems...
TEA MACHO JIC

€3.48 (tax excl.)
€4.21 (tax included)
A JIC male tee is used to connect three hydraulic pipes or hoses in high-pressure systems. It allows hydraulic fluid flow to branch in three directions, minimizing leaks. Applications: Hydraulic systems in heavy...
STRAIGHT UNION MALE JIC - MALE SAE

€2.04 (tax excl.)
€2.47 (tax included)
A male JIC - male SAE straight union is a hydraulic fitting used to join two sections of pipe or hose that have a male end with a 37º flare angle. Assembly is carried out by screwing both male ends into the respective...
REDUCED MALE-TO-MALE JOINT JIC

€3.75 (tax excl.)
€4.54 (tax included)
JIC Reduced Male-Male Splice A JIC reducing male-to-male coupling is a hydraulic connection fitting that allows two components with male JIC threads of different sizes to be joined, achieving a reduction in the...
JIC CENTRAL LOOSE NUT MALE TE

€4.39 (tax excl.)
€5.31 (tax included)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
ADJUSTABLE ELBOW MALE JIC MALE GAS

€5.33 (tax excl.)
€6.45 (tax included)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
JIC FEMALE PLUG

€1.30 (tax excl.)
€1.57 (tax included)
A JIC female plug is a type of hydraulic fitting designed to securely close or block a JIC male port or connection. Applications: Construction machinery, Agricultural machinery, Industrial equipment, Oil and gas...
STRAIGHT UNION MALE JIC MALE BSP

€3.02 (tax excl.)
€3.65 (tax included)
A male JIC male BSP straight union is used to connect pipes or hoses that have different thread types in a straight line. Common applications: Hydraulic systems where JIC and BSP threads are combined, Adaptation of...
JIC NUT

€0.42 (tax excl.)
€0.51 (tax included)
A JIC nut is used in hydraulic systems that follow the JIC standard to hold and seal the JIC connection. Common applications: Hydraulic systems in heavy machinery, Construction and mining equipment, High-pressure...
JIC-NPT MALE ELBOW UNION

€3.89 (tax excl.)
€4.71 (tax included)
A male JIC-male NPT elbow union is a hydraulic fitting that allows a component or hose with a male JIC connection to be connected to a component with a male NPT connection, while changing the flow direction by 90º....
JIC SIDE IDLE NUT FIXED MALE TE

€4.42 (tax excl.)
€5.35 (tax included)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
JIC MALE PLASTIC PLUG

€0.30 (tax excl.)
€0.36 (tax included)
A male JIC plastic plug is used to temporarily protect and seal the female JIC connection of a hose, tube, or component to prevent the entry of dirt, moisture, or to temporarily contain fluid. Applications: Hydraulic...
