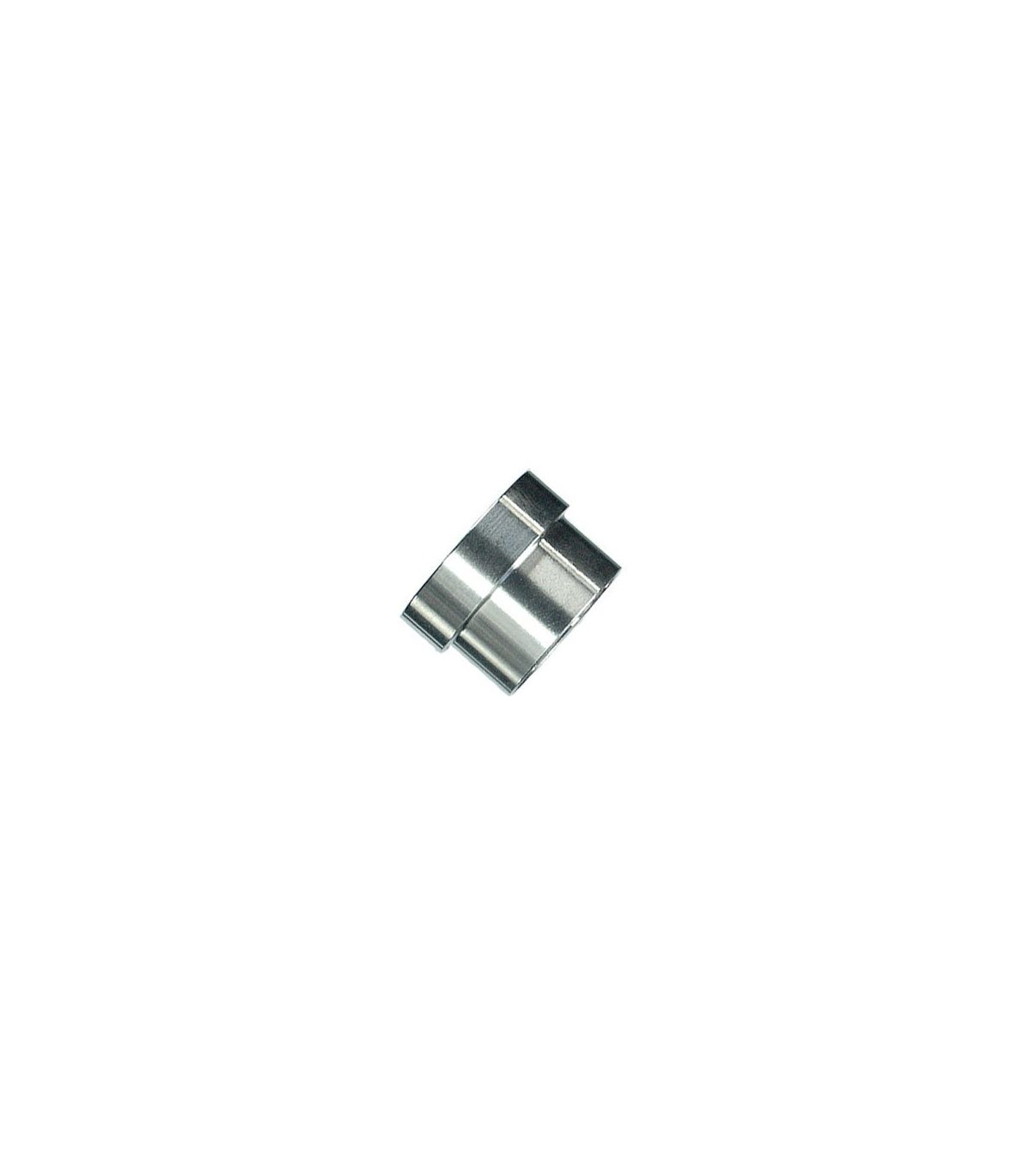

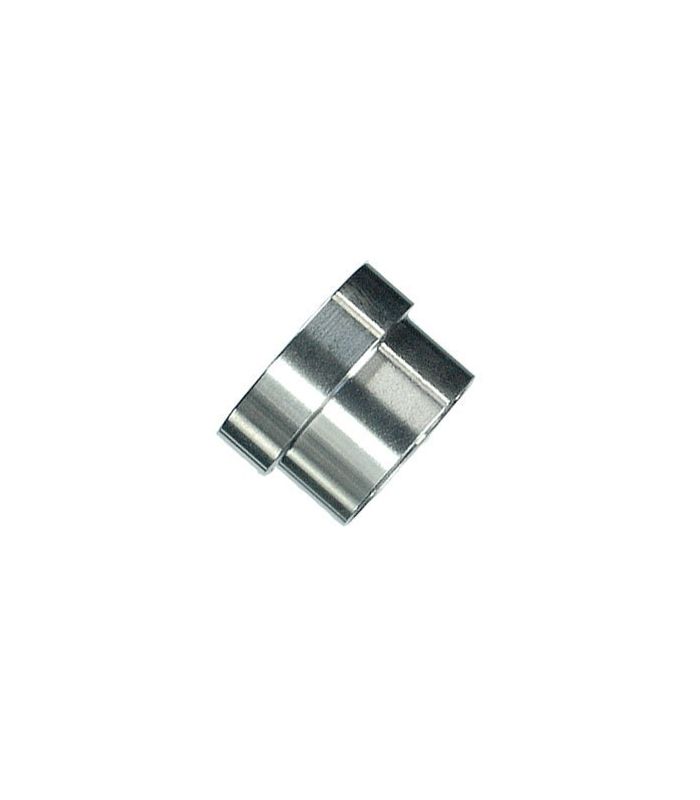

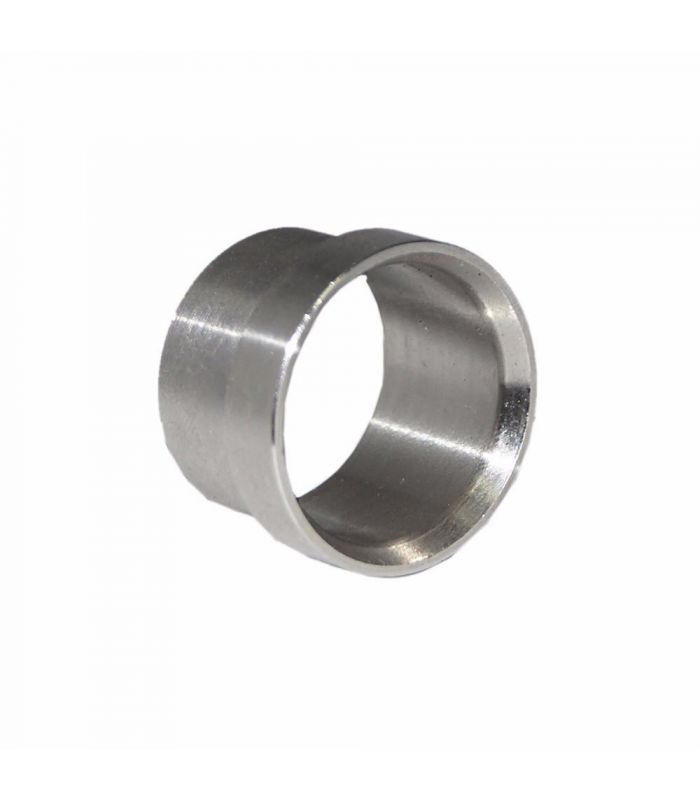

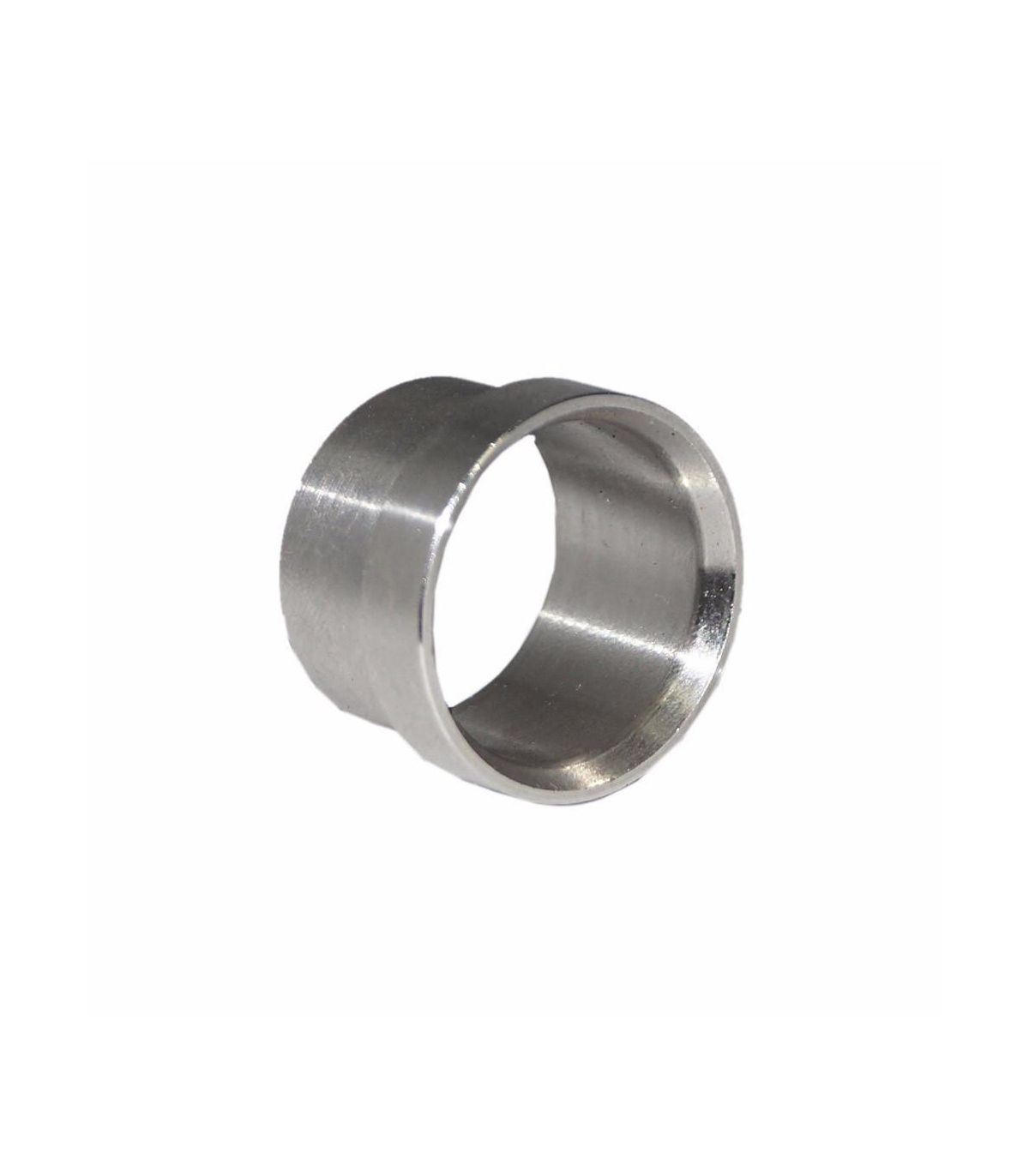

JIC FERRULE METRIC TUBE
JIC FERRULE METRIC TUBE
JIC FERRULE METRIC TUBE
JIC FERRULE METRIC TUBE

JIC FERRULE METRIC TUBE

A JIC metric tube ferrule is used in the assembly of 37° JIC flare fittings for metric rigid pipe. Its function is to create a proper sealing seat and a retaining point for the JIC nut.

Applications: Heavy machinery, Fluid power systems, Special vehicles, Process lines.

Technical sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • 37º flared tube fittings
  • High security of mechanical assembly.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€0.44 (tax included)
€0.36 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 16
  • Ø 20
  • Ø 25
  • Ø 38
Reference:
45010005
Description

JIC ferrule metric tube

FERULA JIC TUBO METRICO

Product Details
45010005
