JIC-NPT MALE ELBOW UNION
JIC-NPT MALE ELBOW UNION
JIC-NPT MALE ELBOW UNION
JIC-NPT MALE ELBOW UNION

JIC-NPT MALE ELBOW UNION

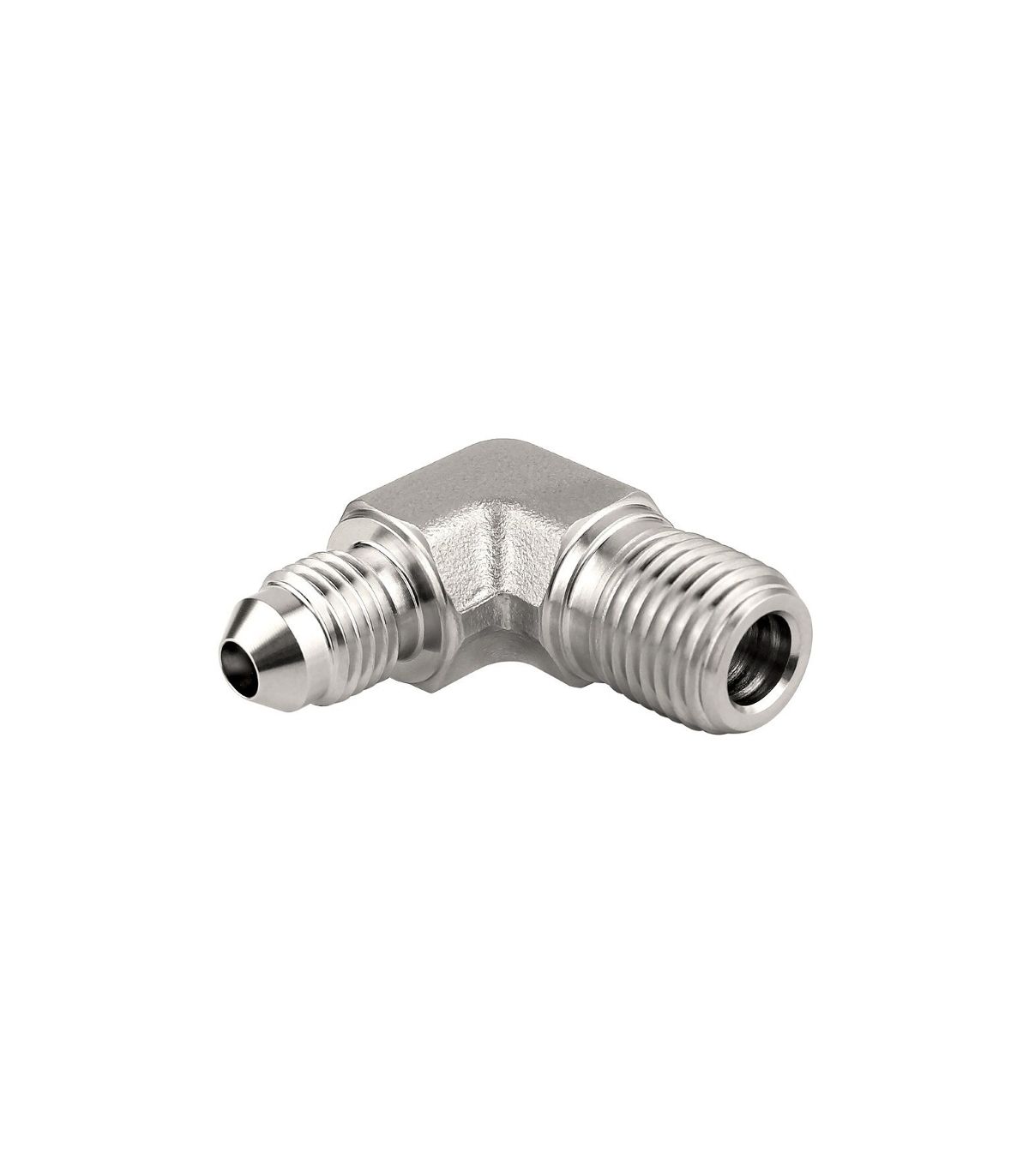

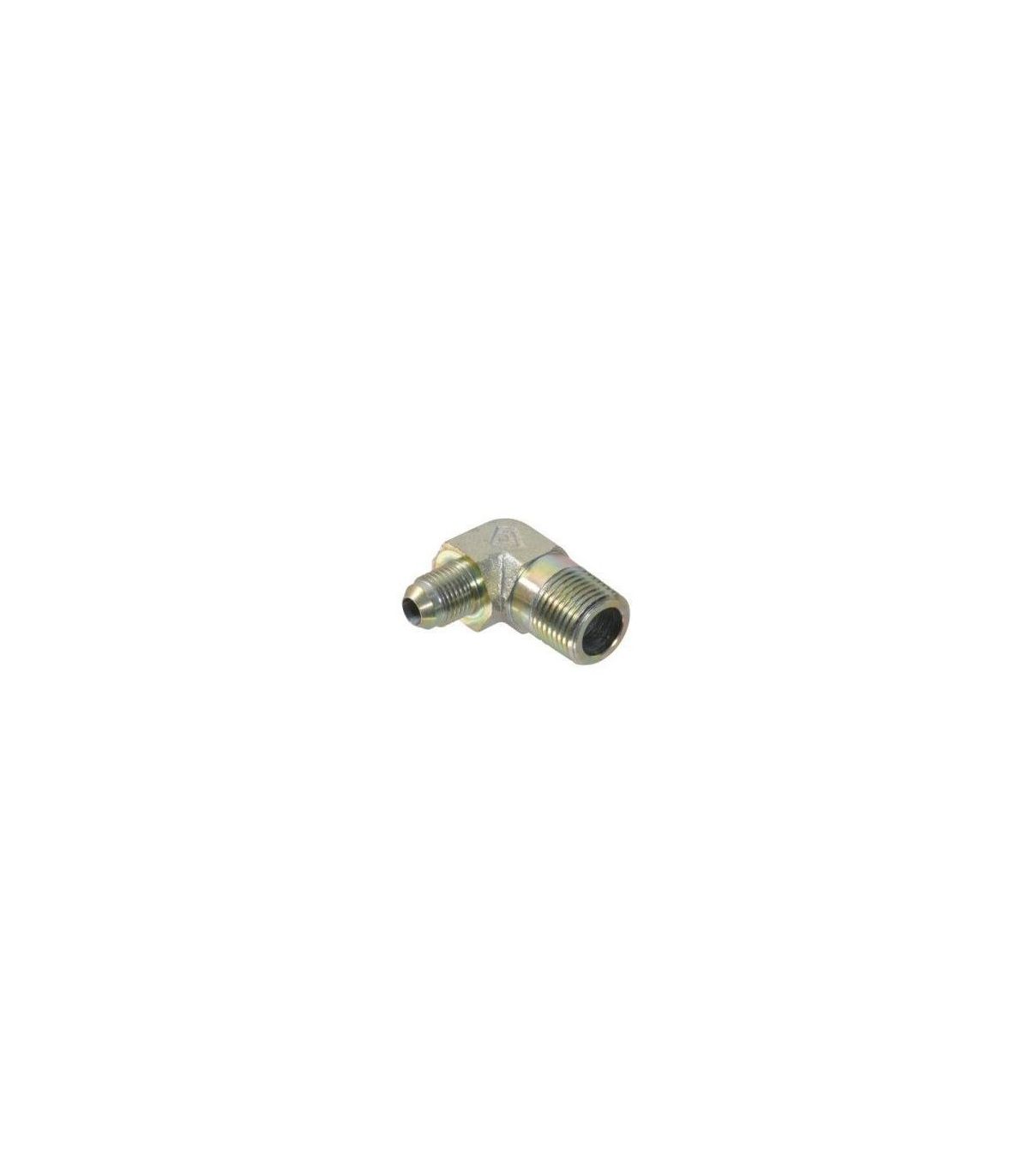

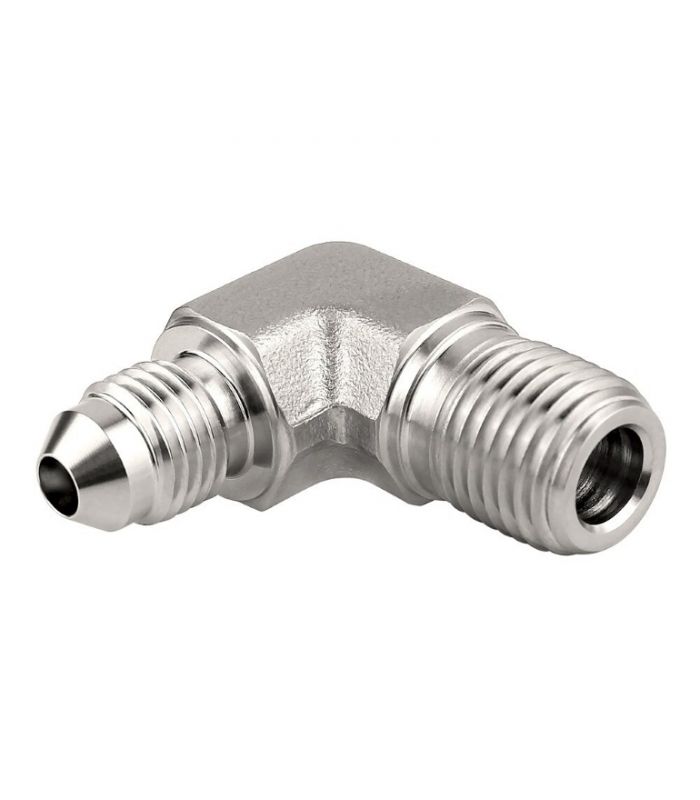

A male JIC-male NPT elbow union is a hydraulic fitting that allows a component or hose with a male JIC connection to be connected to a component with a male NPT connection, while changing the flow direction by 90º.

Applications: Heavy machinery, Power unit systems, Hydraulic test benches, Maintenance, Industrial automation.

Technical sheet:

  • SAE J-514 (ISO 8434-2) standard fitting
  • Jointless coupling.
  • Made of carbon steel.
  • 37º flared tube fittings
  • High security of mechanical assembly.
  • Max pressure:
    • 6-8-10 450 bar.
    • 12-16-18-20-22 350 bar.
    • 25-30-38 250 bar.
€4.71 (tax included)
€3.89 (tax excl.)
SELECT THE THREAD
  • 1/8 NPT
  • 1/4 NPT
  • 3/8 NPT
  • 1/2 NPT
  • 3/4 NPT
  • 1 NPT
  • 1-1/4 NPT
  • 1-1/2 NPT
THREAD TYPE
Reference:
45240000
Description

male JIC-male NPT elbow union

Product Details
45240000
Comments
