STRAIGHT UNION MINIATURE THREADED TUBE
STRAIGHT UNION MINIATURE THREADED TUBE
STRAIGHT UNION MINIATURE THREADED TUBE
STRAIGHT UNION MINIATURE THREADED TUBE

STRAIGHT UNION MINIATURE THREADED TUBE

rating Read the review

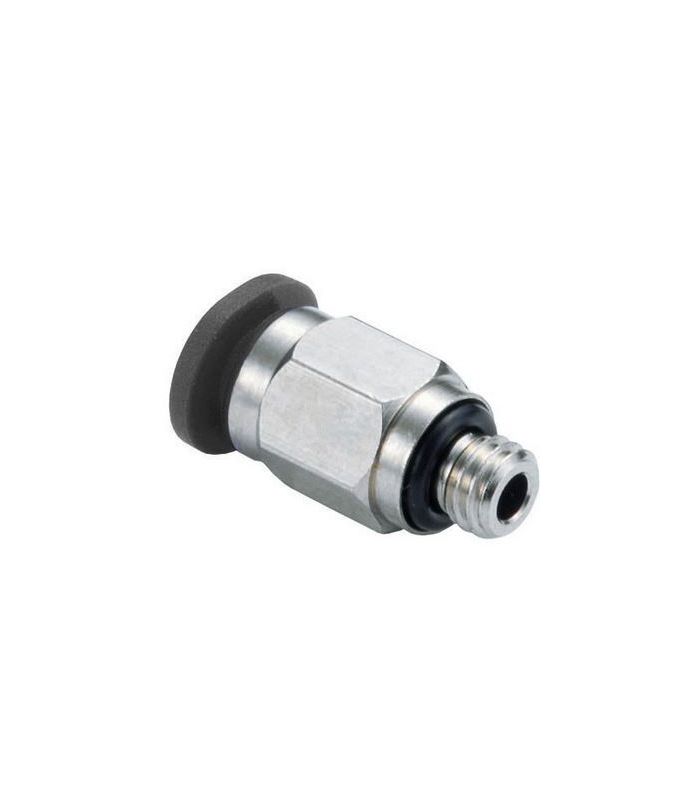

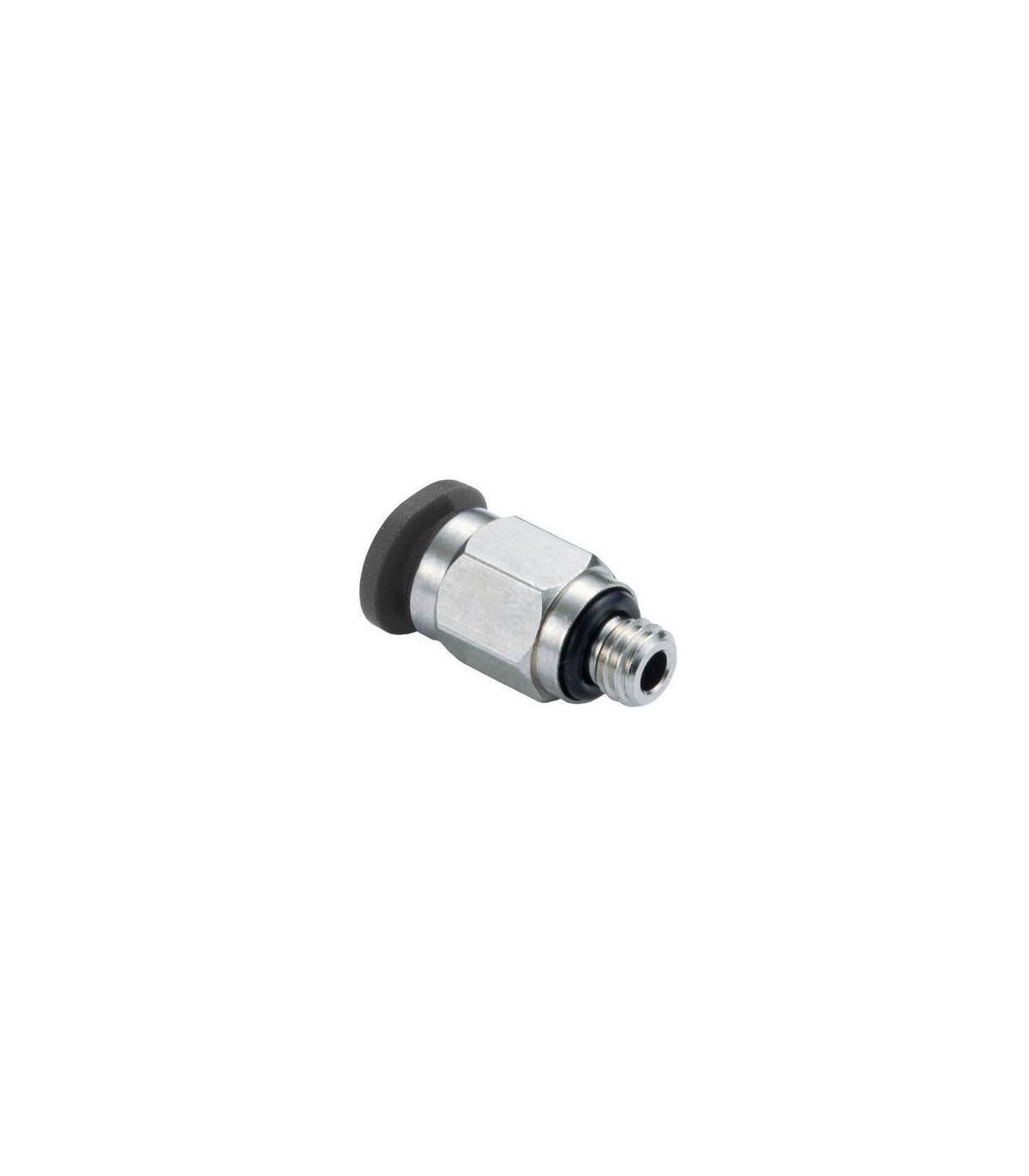

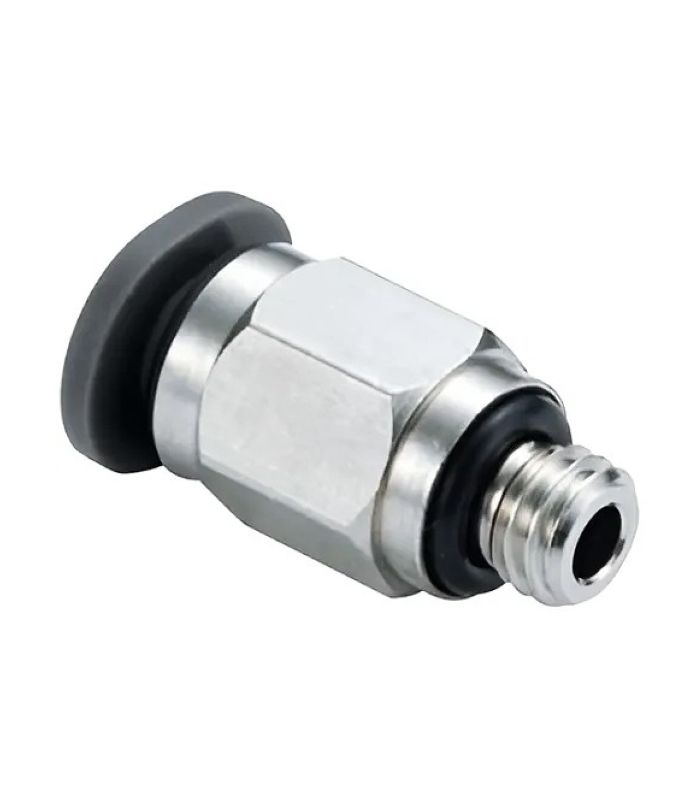

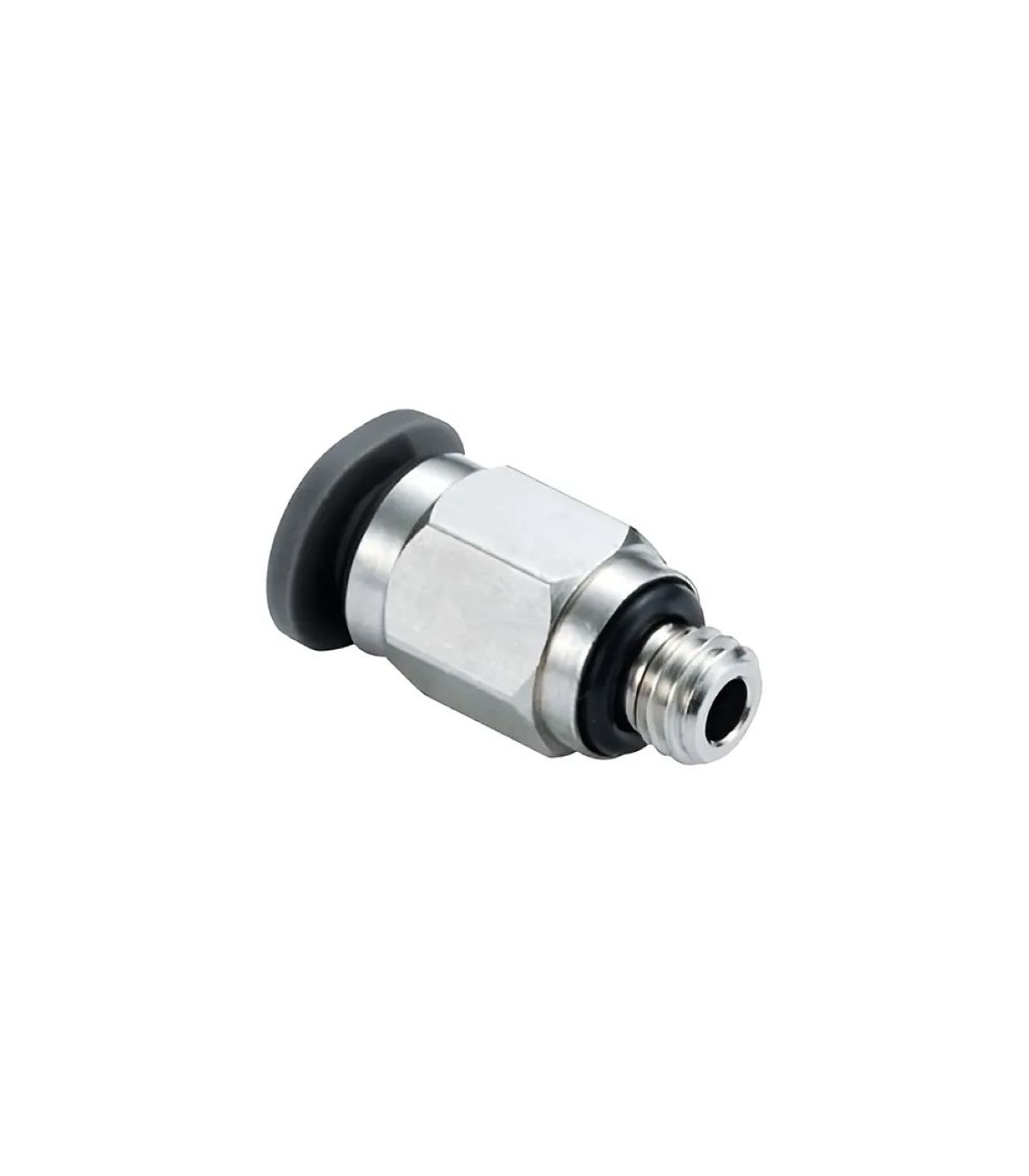

Straight union tube miniature thread

A miniature threaded straight pipe coupling is a compact fitting designed to connect flexible tubing to a component with a small thread. Its size allows for connections in very confined spaces, while maintaining a high level of watertightness and reliability.

Applications: precision pneumatic circuits, instrumentation and equipment where very small fittings are required.

Main features:

  • Acetyl resin body. Nickel-plated brass metal parts.
  • Ideal for mounting in micro pneumatics.
  • Reduced by 40% compared to a conventional fitting.
  • Elliptical push button: Easy disassembly without tools.
  • Maximum working pressure: 16 bar.
  • Vacuum pressure: -750 mm Hg (10 Torr.).
  • Temperature: -15ºC to +70ºC.
€2.03 (tax included)
€1.68 (tax excl.)
Tube diameter - Thread
  • Ø 3-M5
  • Ø 3-M6
  • Ø 4-M3
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-M7
  • Ø 6-M7
  • Ø 6-M12
  • Ø 8-M12
  • Ø 3-M3
Reference:
37000001
Description

Straight union tube miniature thread

The miniature threaded straight tube union is a compact fitting designed to connect a section of pneumatic tubing with a male or female thread.

Its small size makes it ideal for applications where space is limited, such as instrumentation, medical equipment, light automation, mini-cylinders and precision devices.

Usually made of nickel-plated brass , it guarantees a secure, watertight and quick connection thanks to its clamping or push-in system.

Applications

  • Micro-automation
  • Instrumentation and sensors
  • Miniature pneumatic circuits
  • Medical and laboratory equipment
  • Precision machinery

Technical data sheet for the straight threaded pipe joint:

UNION RECTA TUBO

Product Details
37000001
