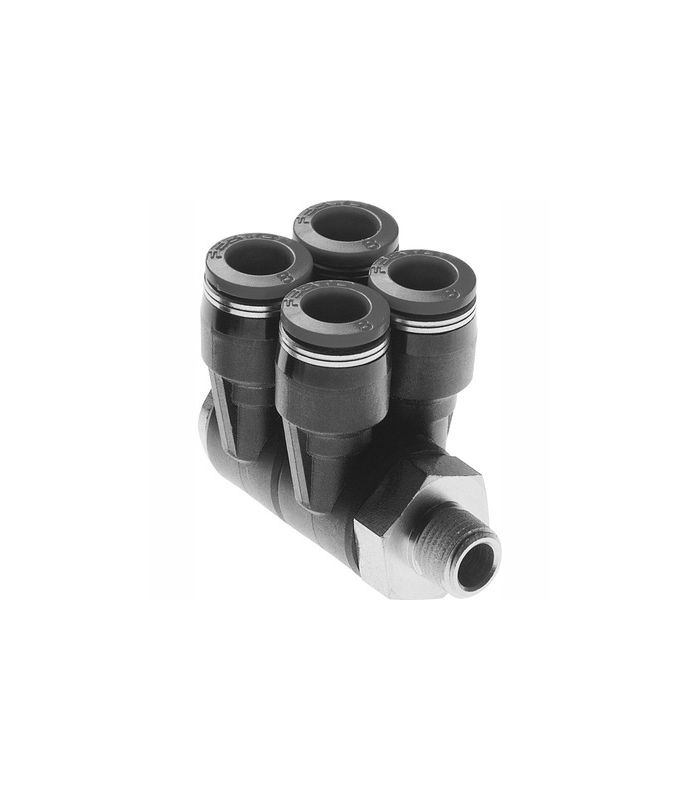

INSTANT FITTING MALE ELBOW OUTLET 4 TUBES

INSTANT FITTING MALE ELBOW OUTLET 4 TUBES

Instant male elbow fitting 4 tube outlet

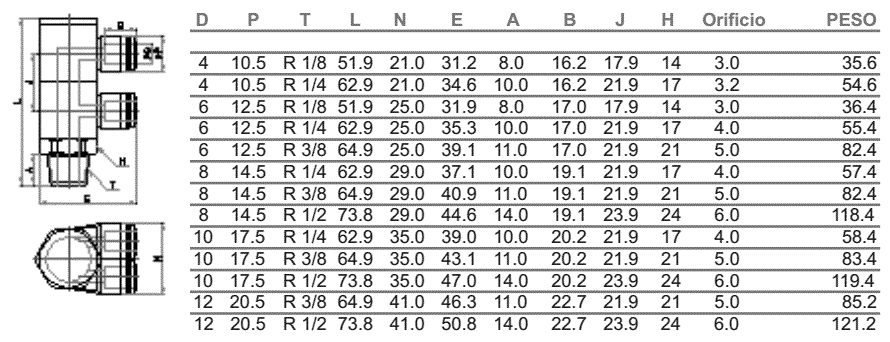

Technical data sheet:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of diameters Ø 4-16
  • Ease of connection
  • Cylindrical or conical thread
  • Nickel-plated brass body and PBT
  • 301 stainless steel gripping pliers
  • Push-button ring in POM resin
€10.02 (tax included)
€8.28 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30190003
Description

Instant male elbow fitting 4 tube outlet

CODO MACHO SALIDA 4 TUBOS

Product Details
30190003
