INSTANT FITTING LONG ELBOW UNION CONICAL THREAD PIPE
INSTANT FITTING LONG ELBOW UNION CONICAL THREAD PIPE
INSTANT FITTING LONG ELBOW UNION CONICAL THREAD PIPE
INSTANT FITTING LONG ELBOW UNION CONICAL THREAD PIPE

INSTANT FITTING LONG ELBOW UNION CONICAL THREAD PIPE

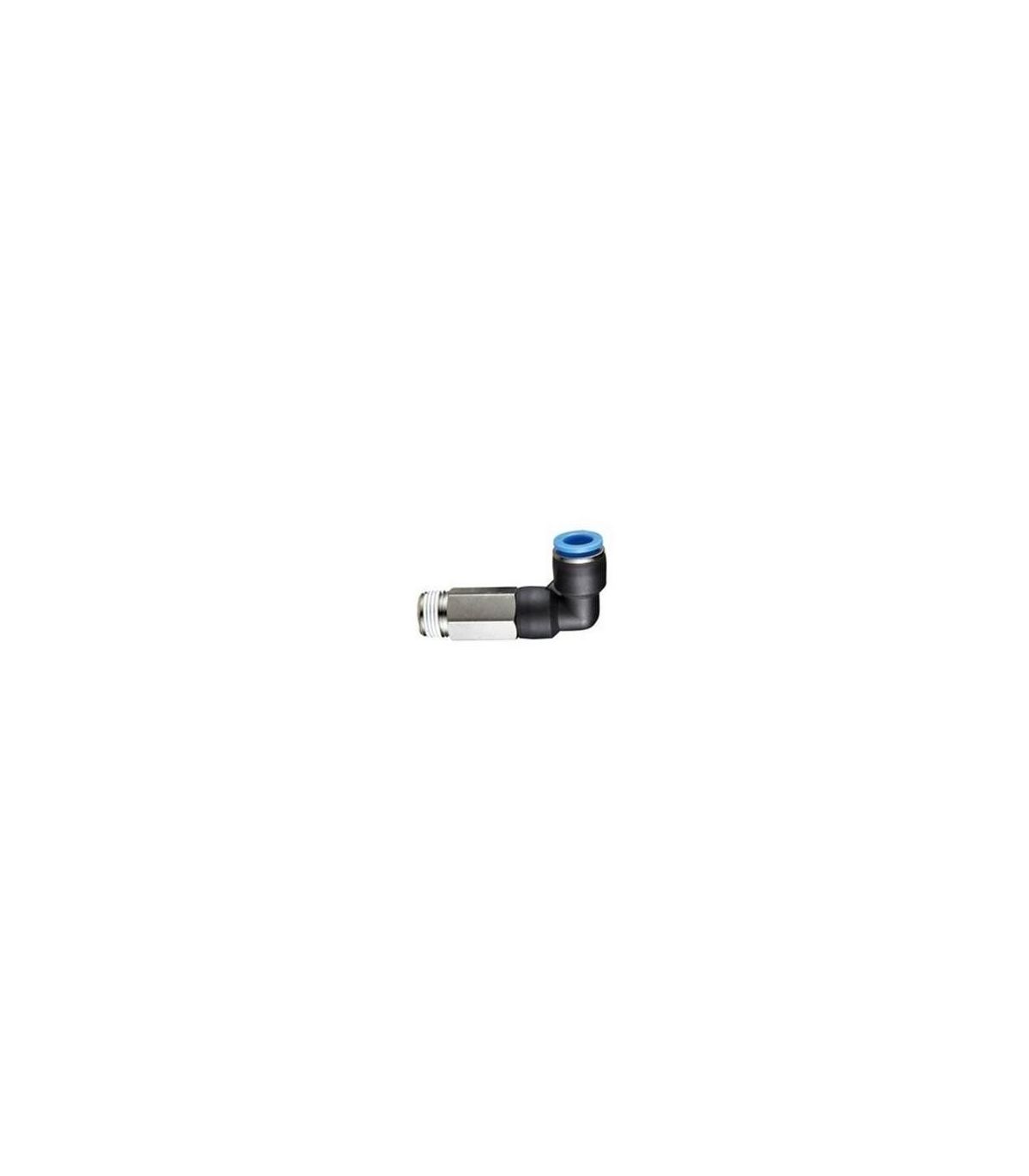

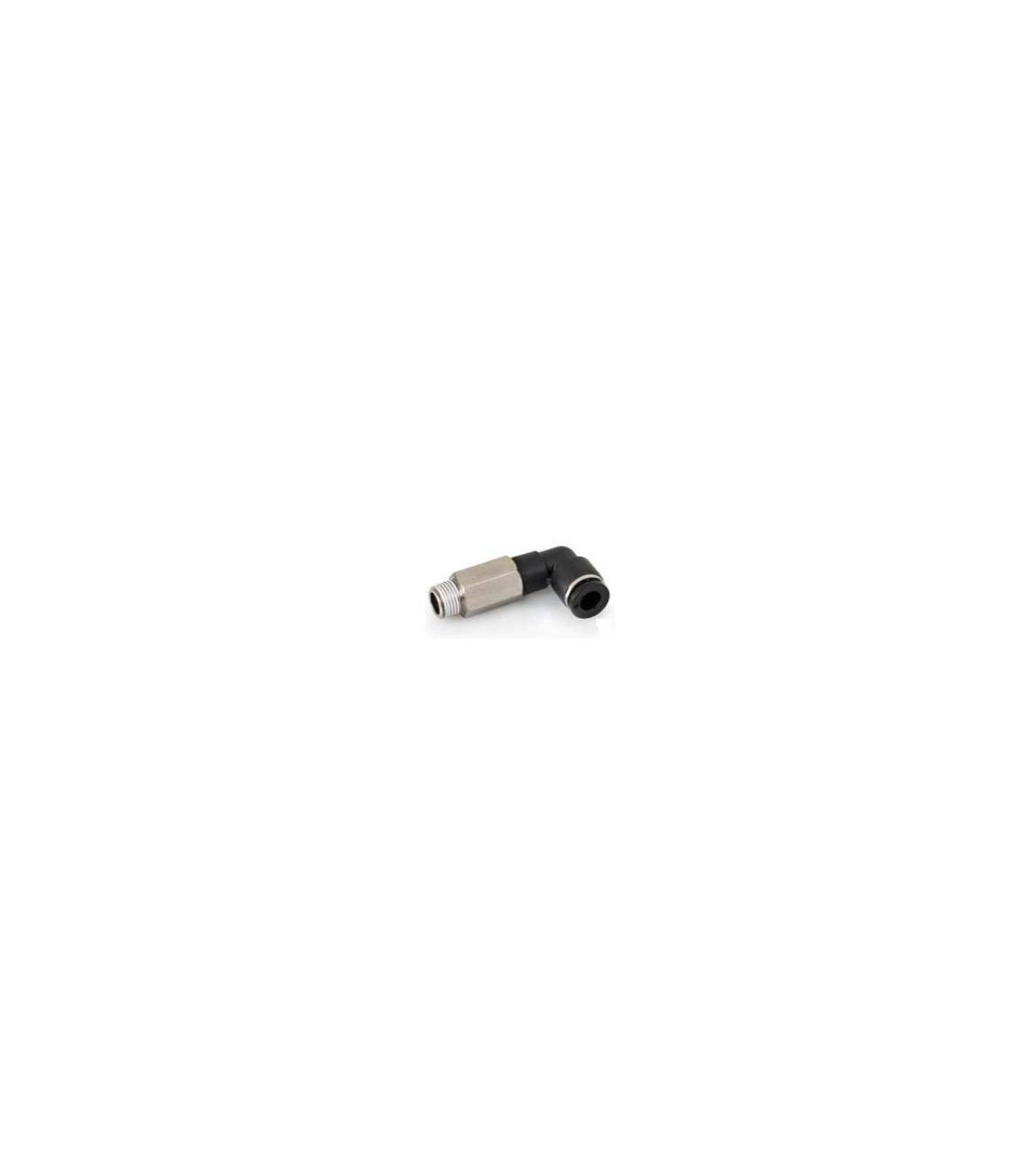

An instant fitting with a long tapered thread elbow joint is used to change the direction of a pipe line 90° immediately upon exiting a component, while also providing a connection further away from the body of that component.

Applications: machinery, industrial automation, robotics and control panels.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT.
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€2.64 (tax included)
€2.18 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 6-1/2
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30100003
Description

Instant fitting for long elbow joint with tapered thread.

An instant fitting for long elbow tapered threaded tube is a pneumatic connection element designed to join a flexible tube to a component with a tapered thread, also allowing a change of flow direction at 90° through its elongated elbow design.

This type of fitting incorporates an instant connection system for the tube, which facilitates quick, safe and tool-free assembly, while the tapered thread ensures a reliable seal at the joint with the threaded element.

Common applications

It is used in compressed air systems and industrial automation where it is necessary to redirect the flow in confined spaces, ensuring a secure connection between tubes and components with tapered threads.

Technical specifications of an instant fitting for long elbow joint with tapered thread:

UNION CODO LARGO ROSCA CONIICA TUBO
