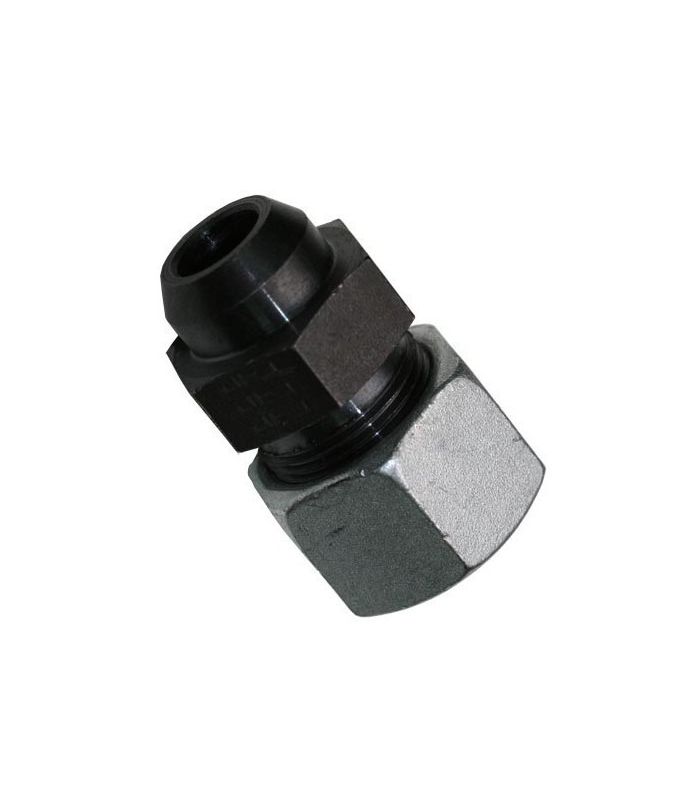

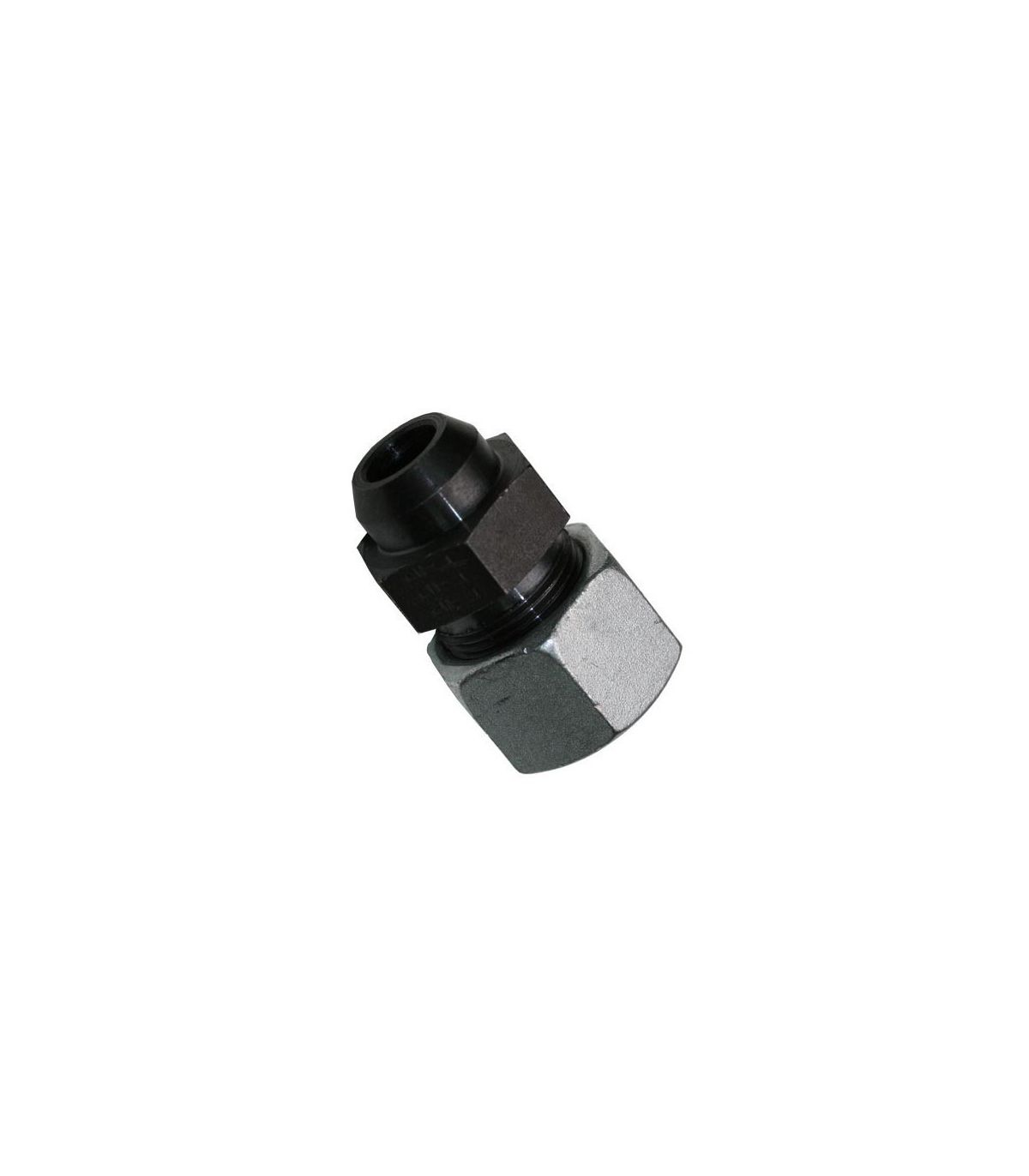

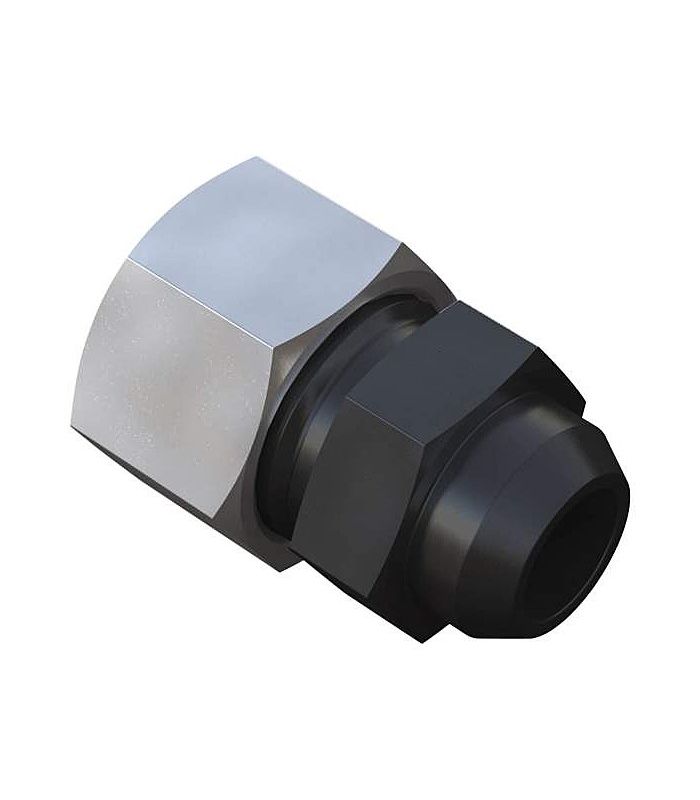

WELDABLE STRAIGHT TUBE JOINT DIN 2353 L

A DIN 2353 L weldable straight tube coupling is a hydraulic fitting designed to permanently and directly join a rigid tube to a system or component by welding, while the other end allows the connection of another rigid tube using the compression method with a shear ring.

Applications: Heavy and construction machinery, Hydraulic systems, Manufacturing of hydraulic manifolds and blocks, Shipbuilding industry, Petrochemical and chemical industry.

Technical specifications:

• Operating temperature -20 / 120ºC.
• Made of drawn steel DIN3859-1.
• Bichromated coating ISO 4042.
• Corrosion resistance.
• Working pressures:
  • Ø 6-8-10-12-15 250 bar
  • Ø 18-22 160 bar
  • Ø 28-35-42 100 bar

Assembly instructions
