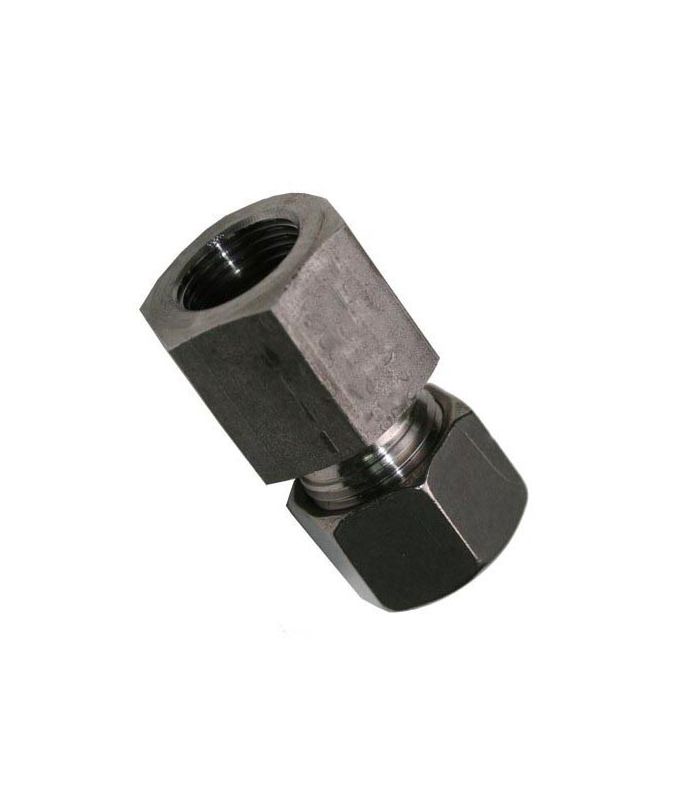

STRAIGHT TUBE UNION FEMALE THREAD DIN 2353 L

STRAIGHT TUBE UNION FEMALE THREAD DIN 2353 L

A DIN 2353 L female threaded straight pipe union is a hydraulic fitting used to connect a rigid pipe in a linear fashion to a component with a male thread.

Applications: Industrial machinery, Control panels, Hydraulic return circuits, Compressed air systems, Construction, Agricultural machinery.

Technical specifications:

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 bar
    • Ø 28-35-42 100 bar

Assembly instructions

€2.60 (tax included)
€2.15 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 8-1/4
  • Ø 10-1/4
  • Ø 12-3/8
  • Ø 15-1/2
  • Ø 18-1/2
  • Ø 22-3/4
  • Ø 28-1
  • Ø 35-1-1/4
  • Ø 42-1-1/2
Reference:
33250016
Description

straight pipe union female thread DIN 2353 L

Product Details
33250016
