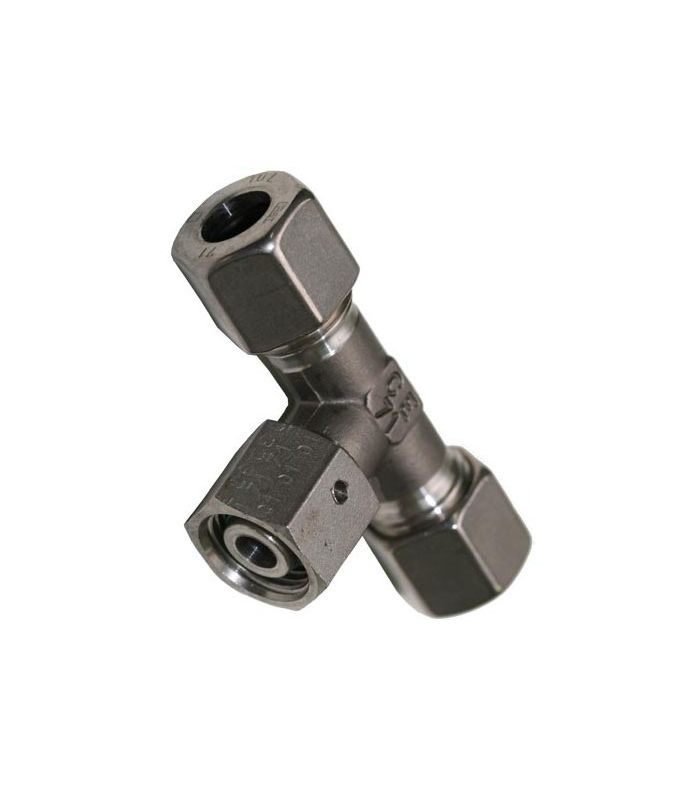

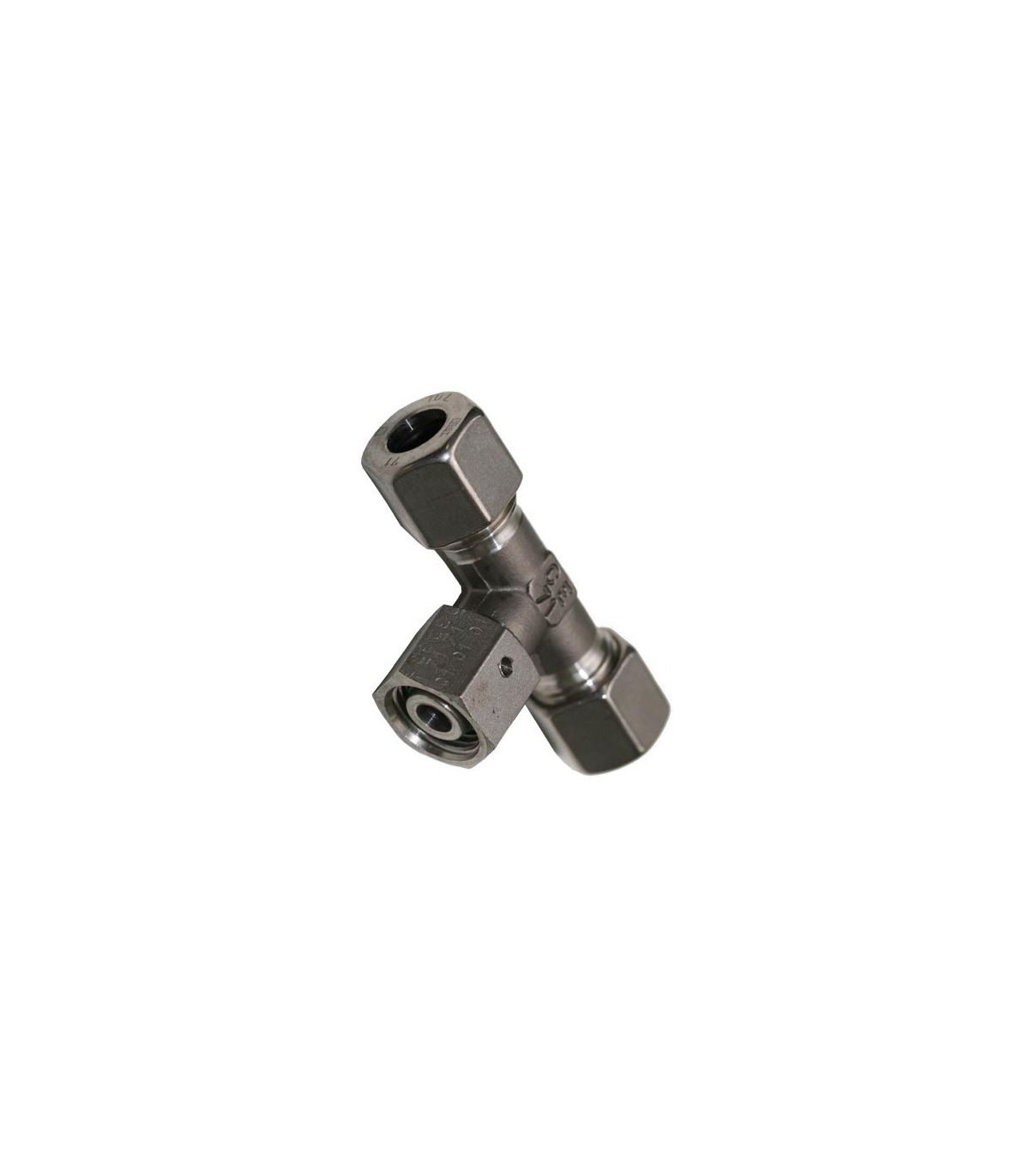

SWIVEL ADAPTER CENTRAL TEE TUBE DIN 2353 L

SWIVEL ADAPTER CENTRAL TEE TUBE DIN 2353 L

A DIN 2353 L center tee swivel adapter is used in hydraulic or pneumatic systems to create a "T" connection where the center outlet of the "T" is swivel.

Applications: Industrial machinery, Measurement and control systems, Mobile equipment, Test benches, Centralized lubrication systems.

Technical specifications:

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 bar
    • Ø 28-35-42 100 bar

Assembly instructions

€9.52 (tax included)
€7.87 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33230004
Description

DIN 2353 L center tee swivel adapter

Product Details
33230004
Comments
