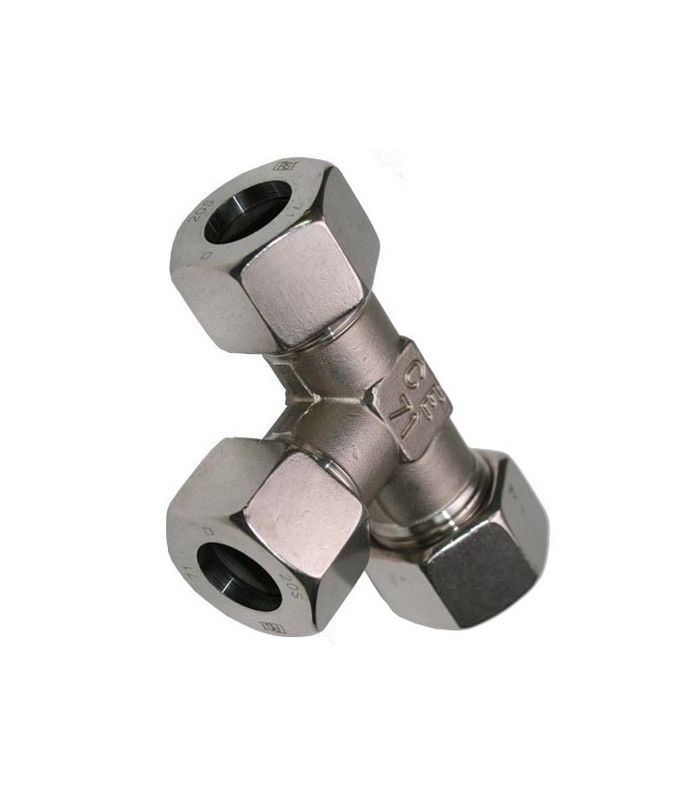

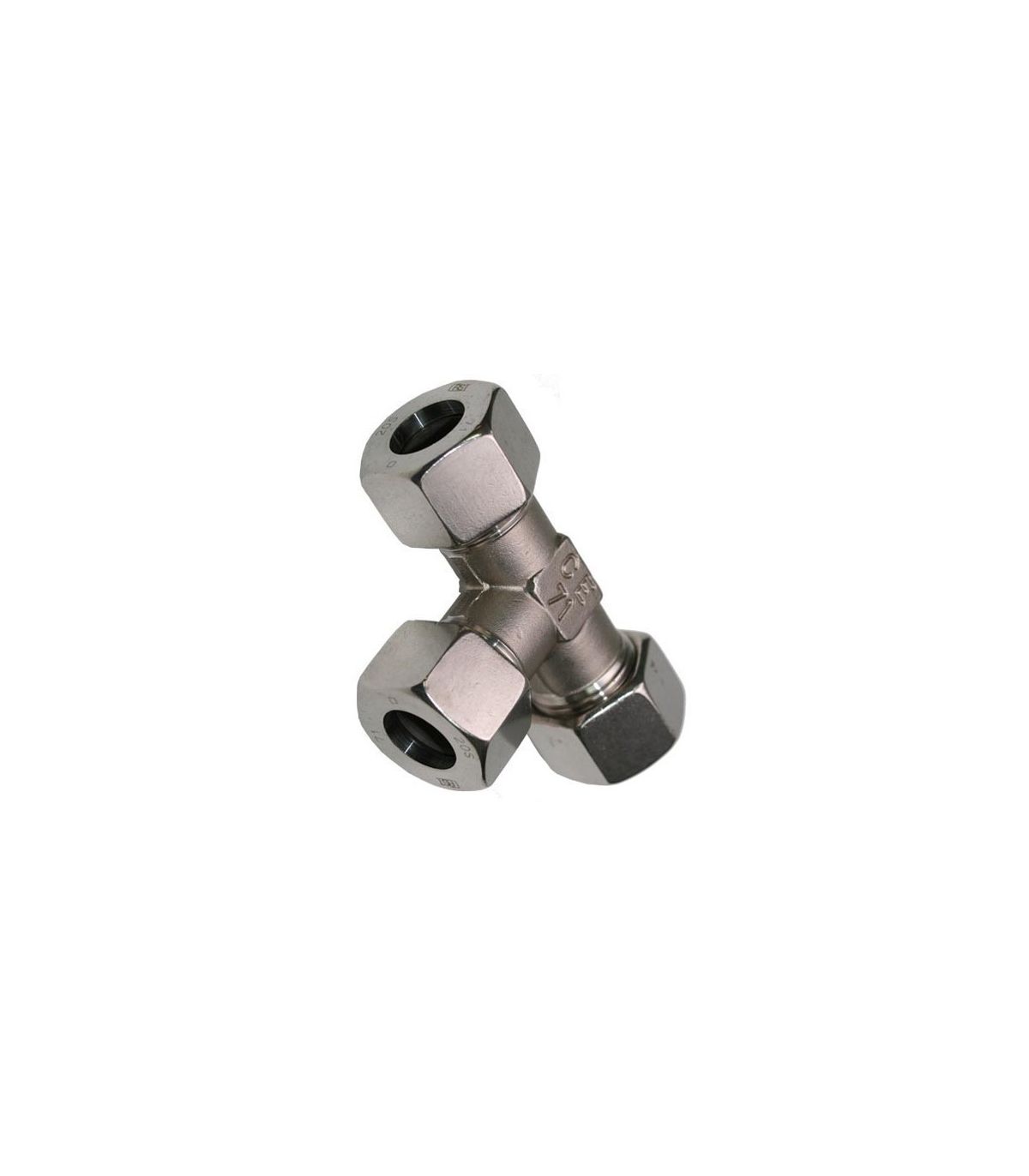

T-PIPE UNION DIN 2353 L

T-PIPE UNION DIN 2353 L

A DIN 2353 L tee fitting is used to modify high-pressure hydraulic piping systems. It allows the flow from a main pipe to be split in two different directions or three pipes to be joined at a single point.

Applications: Industrial Machinery, Agricultural and Construction Equipment, Heavy Vehicle Systems, Automation Systems, Process Plants

Technical specifications:

  • Operating temperature -20/120ºC.
  • Made of drawn steel DIN3859-1.
  • Compliant with DIN 2353 standard
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 bar
    • Ø 28-35-42 100 bar

Assembly instructions

€7.09 (tax included)
€5.86 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33020004
Description

DIN 2353 L tee tube fitting

Product Details
33020004
Comments
