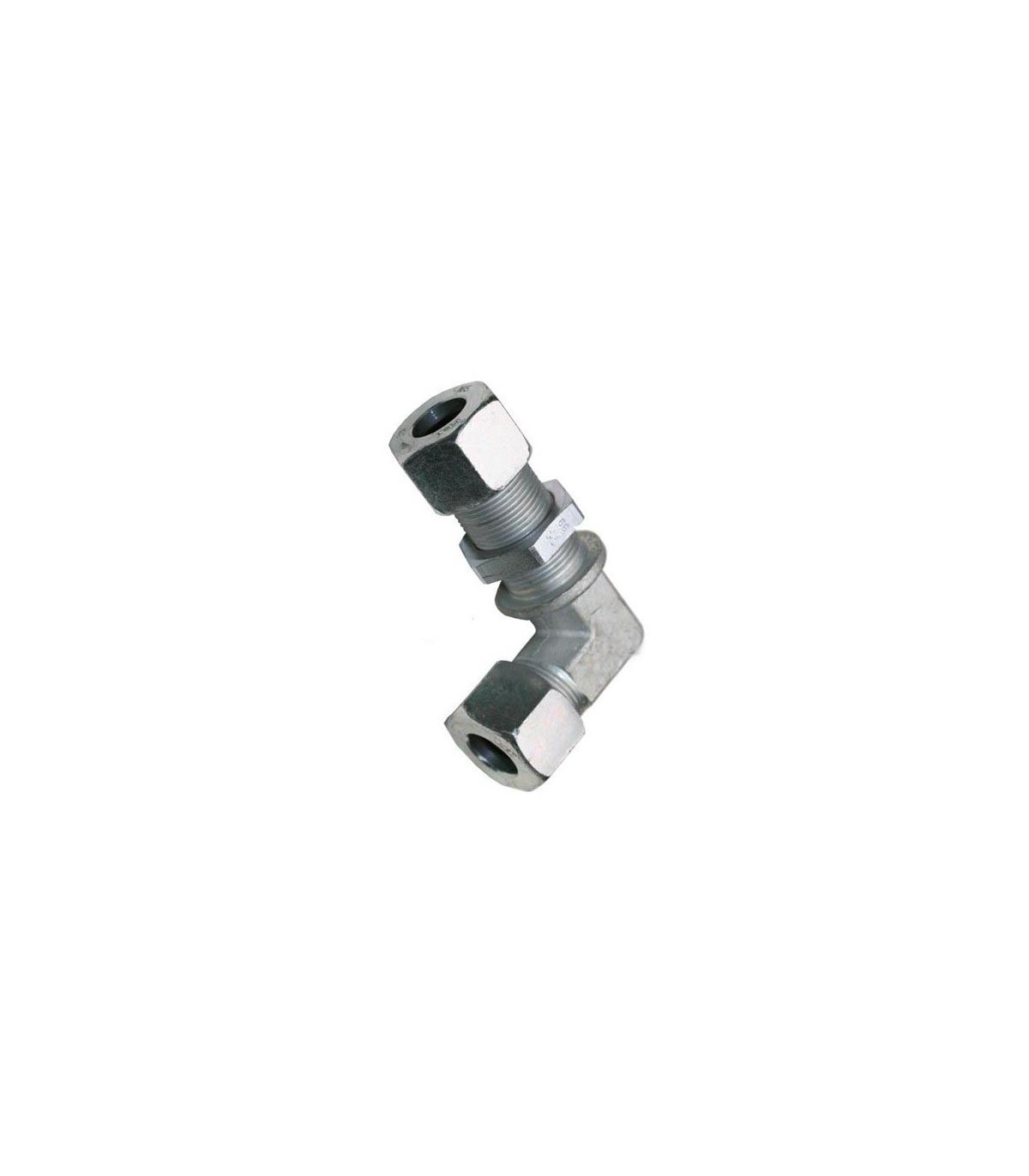

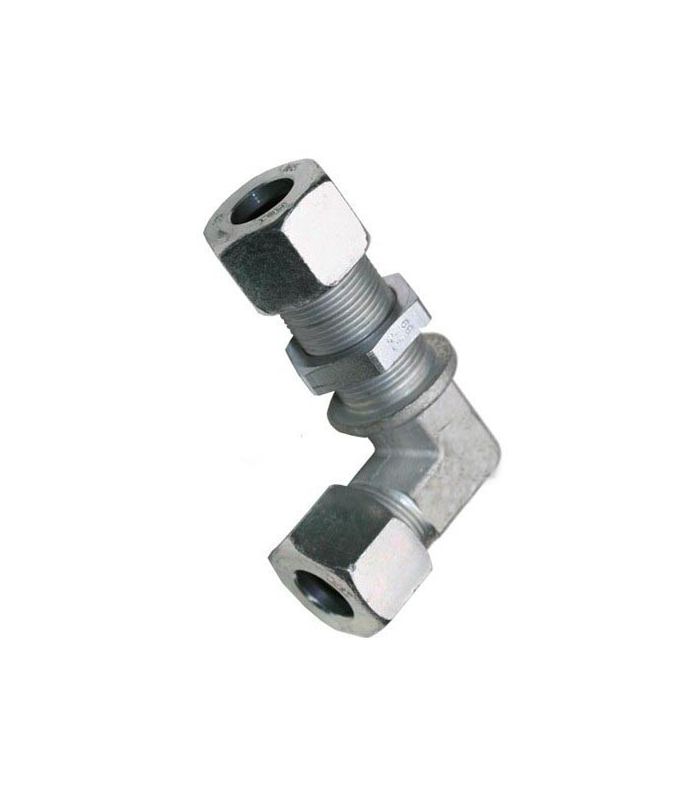

PIPE ELBOW WALL GATEWAY CONNECTION DIN 2353 L

PIPE ELBOW WALL GATEWAY CONNECTION DIN 2353 L

DIN 2353 L elbow pipe fitting

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 Bar
    • Ø 28-35-42 100 Bar

Assembly instructions

€8.95 (tax included)
€7.40 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33100004
Description

DIN 2353 L elbow pipe fitting

UNION TUBO CODO PASAMUROS DIN 235

Product Details
33100004
Comments
