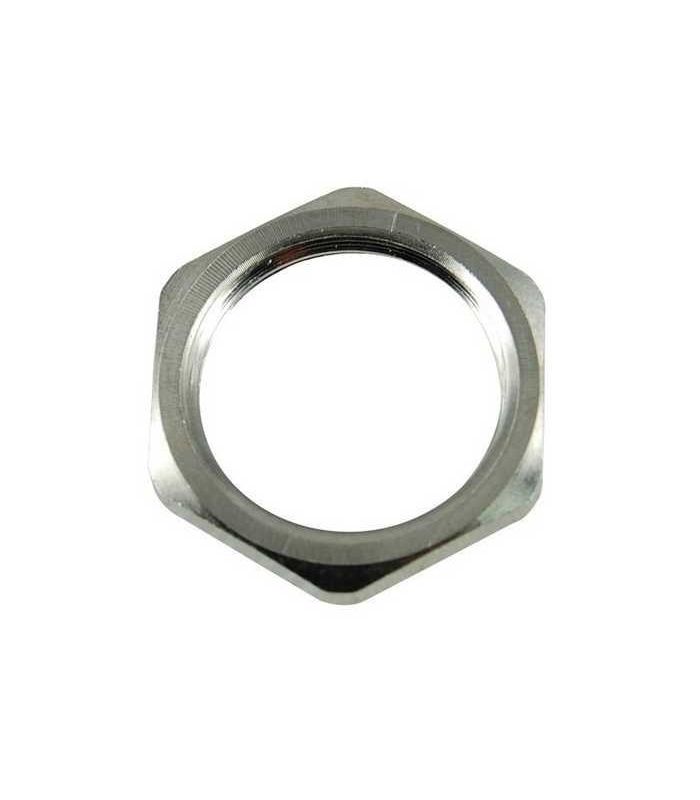

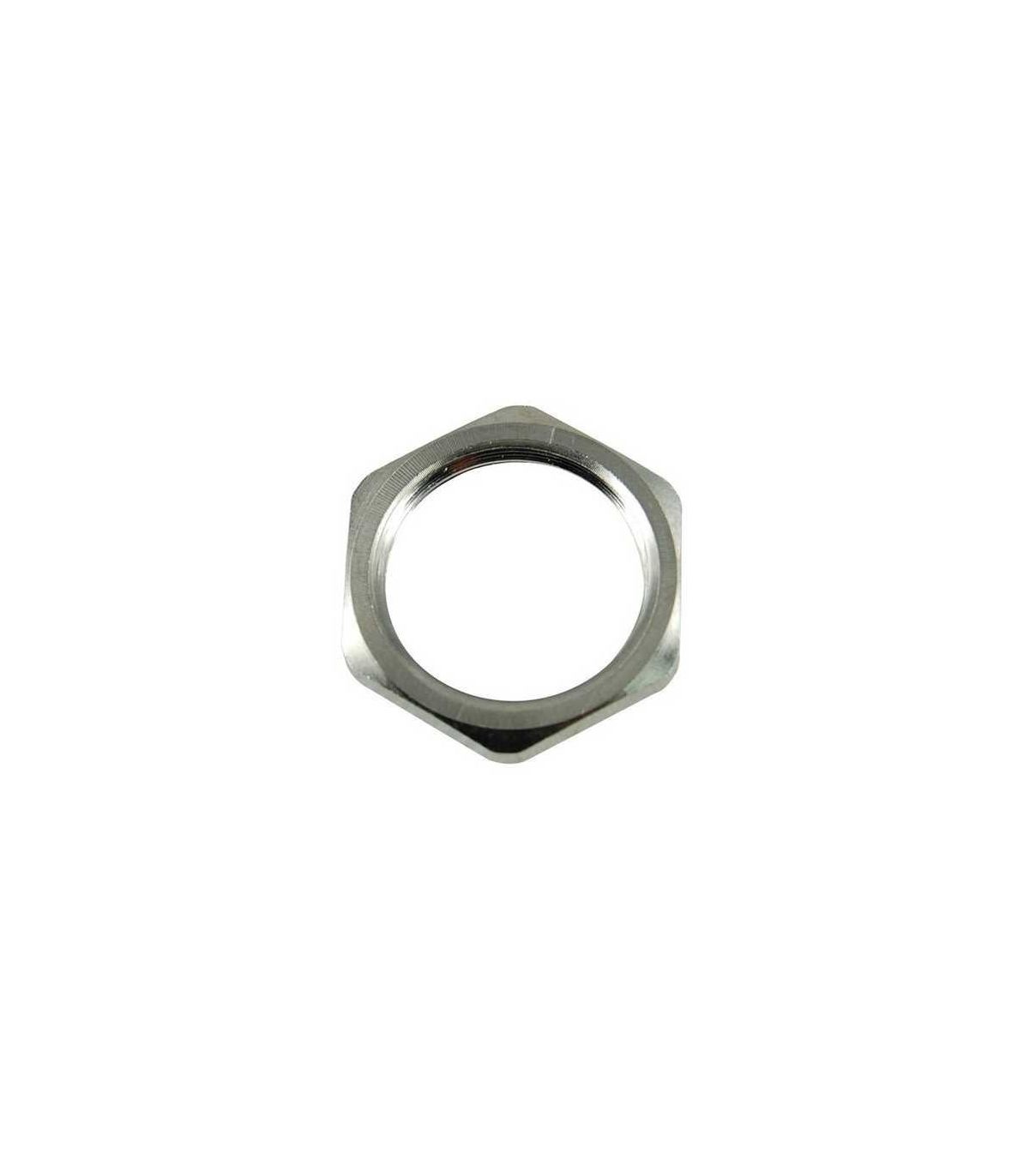

L BULKHEAD NUT

L BULKHEAD NUT

An L bulkhead nut is used to secure a fitting, pipe, or threaded connector through the wall of a panel, tank, or equipment.

Applications: Pneumatic and hydraulic systems, Machinery manufacturing, Tanks and containers, Distribution panels.

Technical sheet:

  • Working temperature -20 / 120ºC.
  • Made of DIN3859-1 drawn steel.
  • ISO 4042 bichromate coating.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 bar
    • Ø 28-35-42 100 Bar
€0.53 (tax included)
€0.44 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33110004
Description

L grommet nut

Product Details
33110004
Comments
