Hydraulic pipe DIN-2353 ISO 8431-1
Hydraulic pipe DIN-2353 ISO 8431-1
Hydraulic pipe DIN-2353 ISO 8431-1
Hydraulic pipe DIN-2353 ISO 8431-1

Hydraulic pipe DIN-2353 ISO 8431-1

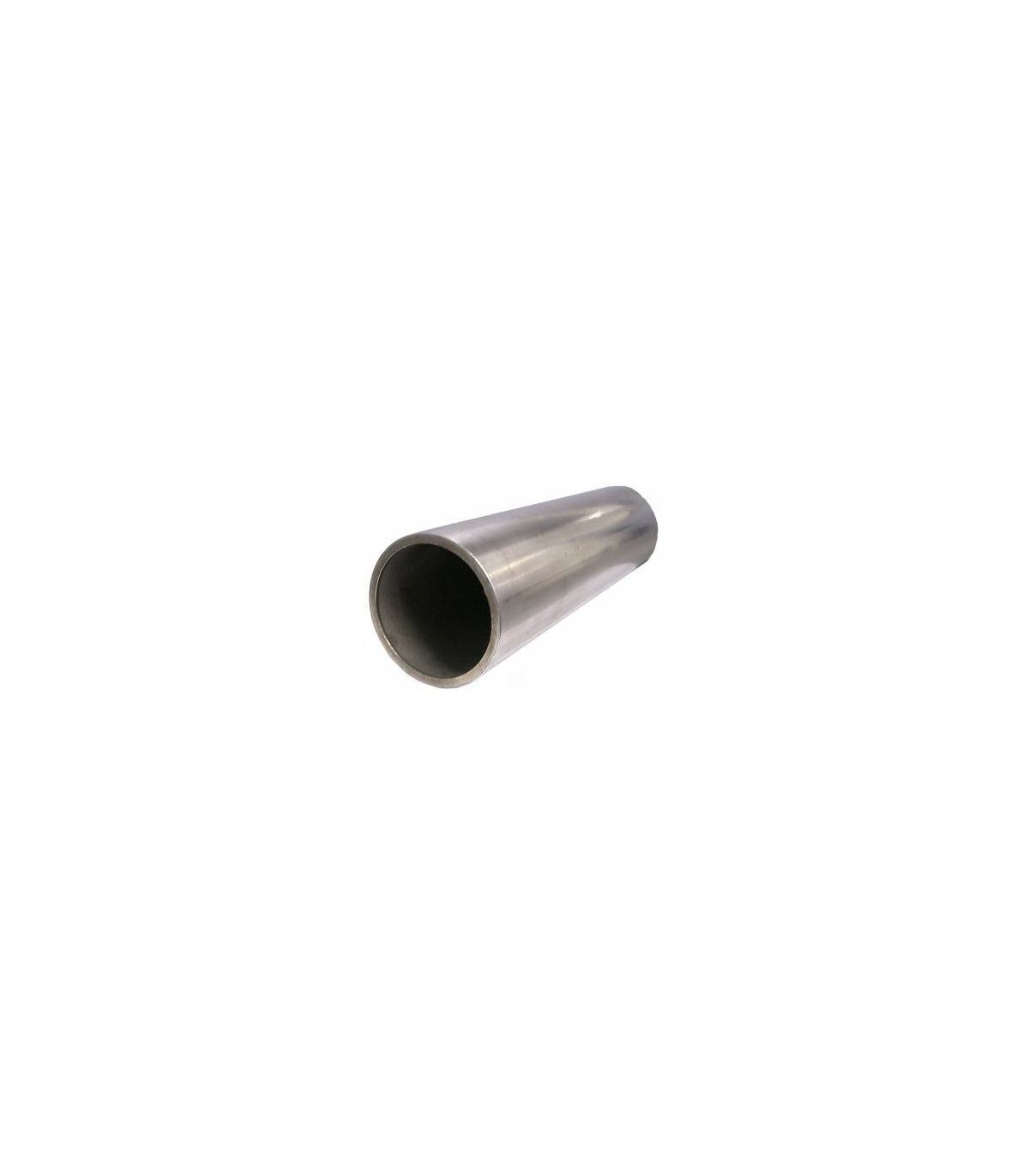

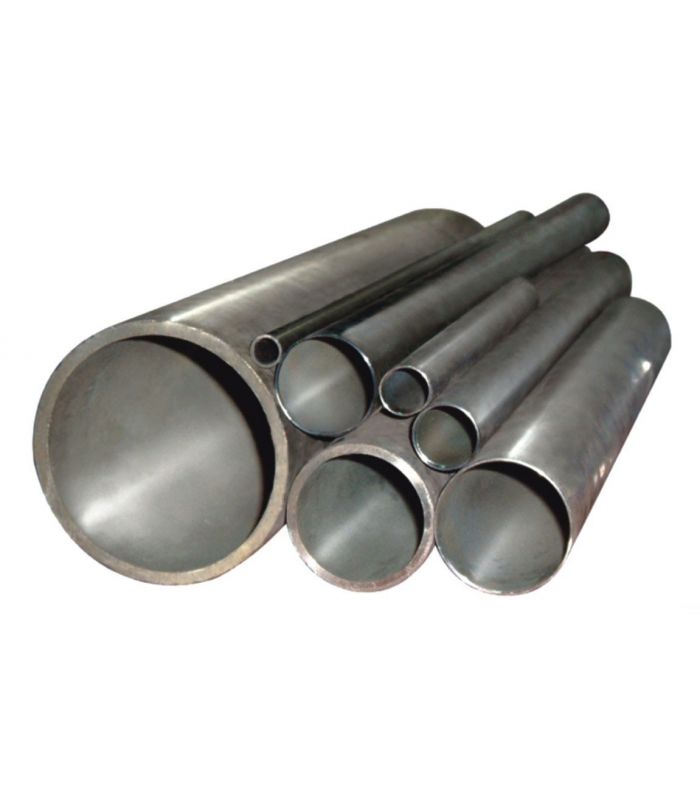

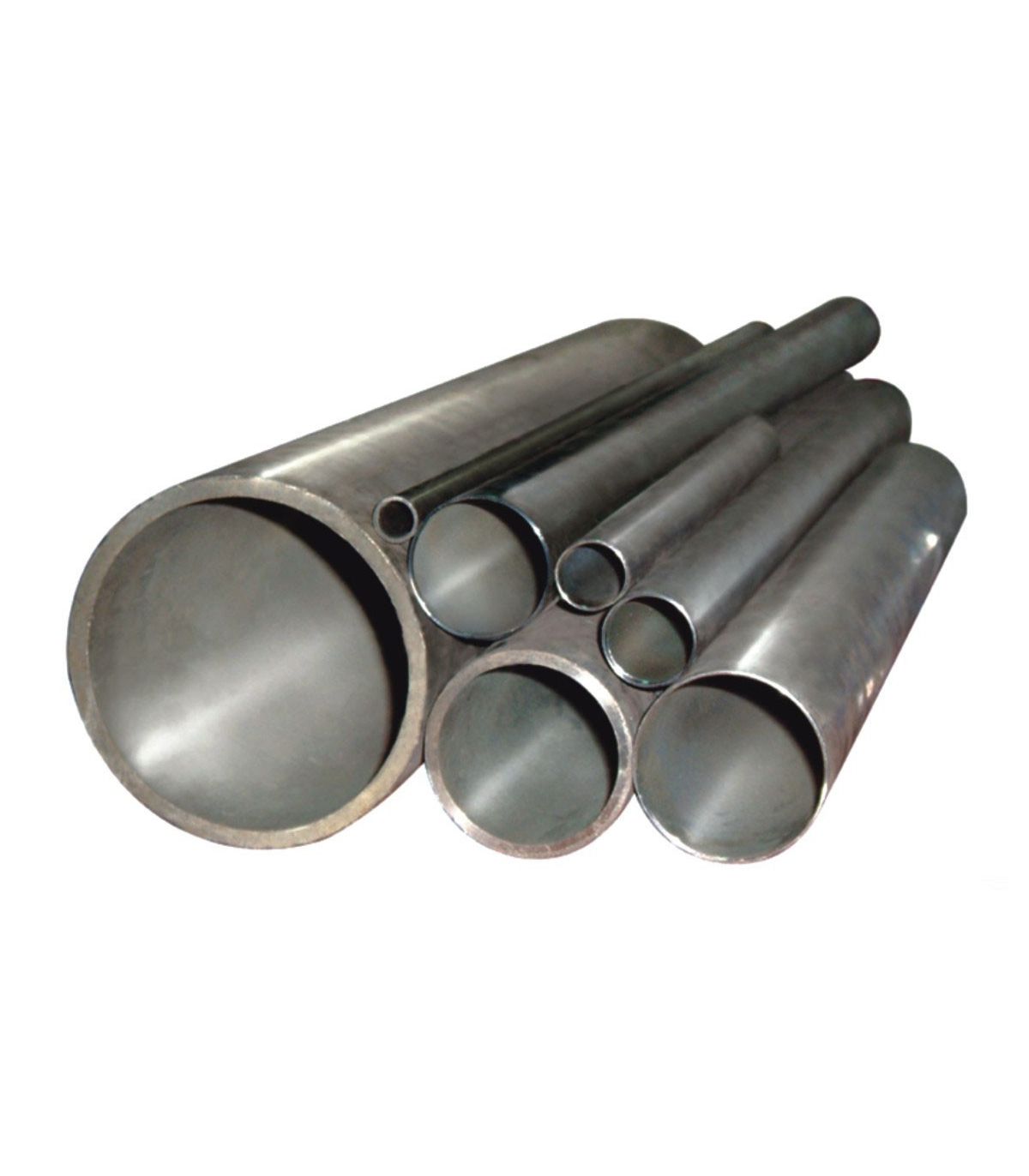

DIN-2353 ISO 8431-1 hydraulic tubing is a carbon steel tubing conforming to EN 10305-4. It is used in high-pressure hydraulic structures and circuits. It complies with DIN-2353 and ISO 8431-1 standards, which establish dimensional and performance requirements for seamless steel hydraulic tubing.

Applications: industrial hydraulic systems, lifting equipment, and agricultural equipment, among others.

Technical sheet:

  • Wide variety of diameters.
  • Suitable for insertion of DIN-2353 fittings
  • Supplied in 6 m bars.
  • If you need the entire 6m bar, please check the shipping price.

We cut to size (Consult prior to purchase)

€27.15 (tax included)
€22.44 (tax excl.)
Ø TUBE
  • Ø 6x4
  • Ø 8x6
  • Ø 10x7
  • Ø 10x8
  • Ø 12x8
  • Ø 12x10
  • Ø 14x10
  • Ø 15x2
  • Ø 16x13
  • Ø 18x15
  • Ø 20x3
  • Ø 22x18
  • Ø 25x2
  • Ø 25x3
  • Ø 28x3
  • Ø 30x3
  • Ø 35x3
  • Ø 38x4
  • Ø 42x3
Reference:
20570008
Description

Hydraulic pipe DIN-2353 ISO 8431-1

Product Details
20570008
