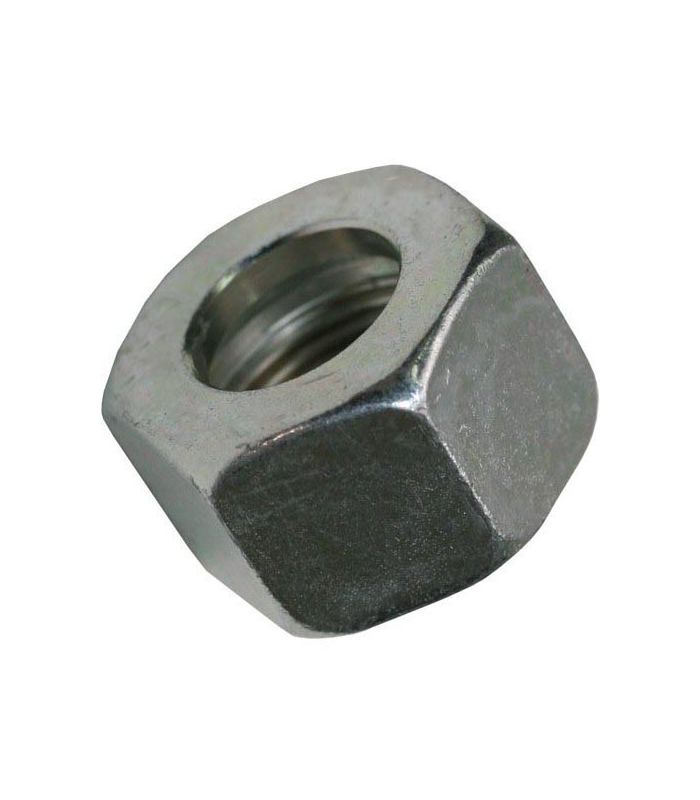

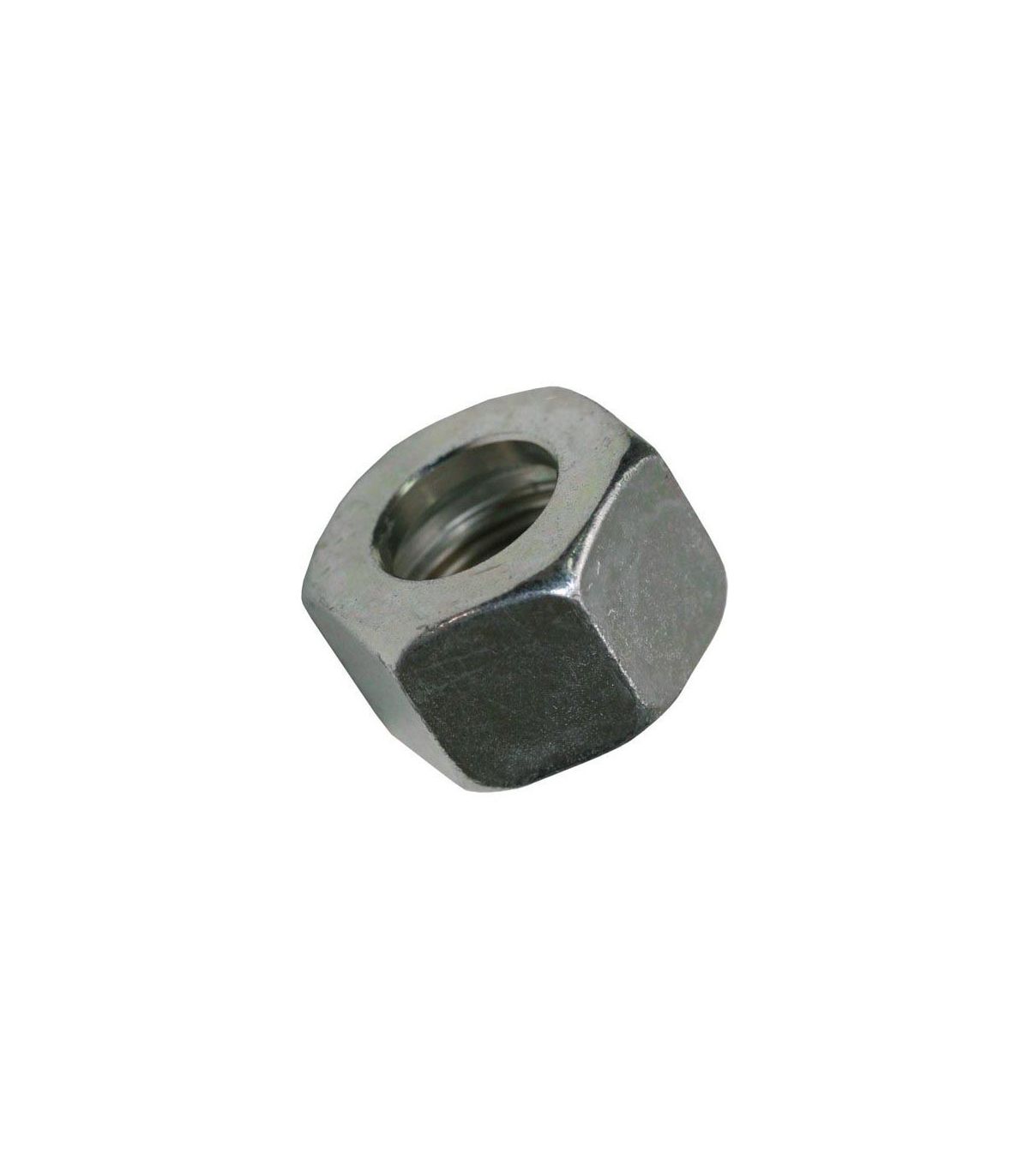

DIN 2353 L LOCK NUT

DIN 2353 L LOCK NUT

A DIN 2353 L lock nut is a fundamental component in compression fittings with a shear ring that comply with the DIN 2353 standard. Its function is to hold and compress the shear ring against the rigid tube and the fitting body.

Applications: Hydraulic systems for industrial machinery, Hydraulic and pneumatic systems in light vehicles, Instrumentation lines.

Technical specifications:

  • Operating temperature -20 / 120ºC.
  • Made of drawn steel DIN3859-1.
  • Bichromated coating ISO 4042.
  • Corrosion resistance.
  • Working pressures:
    • Ø 6-8-10-12-15 250 bar
    • Ø 18-22 160 bar
    • Ø 28-35-42 100 bar

Assembly instructions

€0.34 (tax included)
€0.28 (tax excl.)
DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 18
  • Ø 22
  • Ø 28
  • Ø 35
  • Ø 42
Reference:
33080004
Description

DIN 2353 L locking nut

TUERCA DE CIERRE DIN 2353

Product Details
33080004
