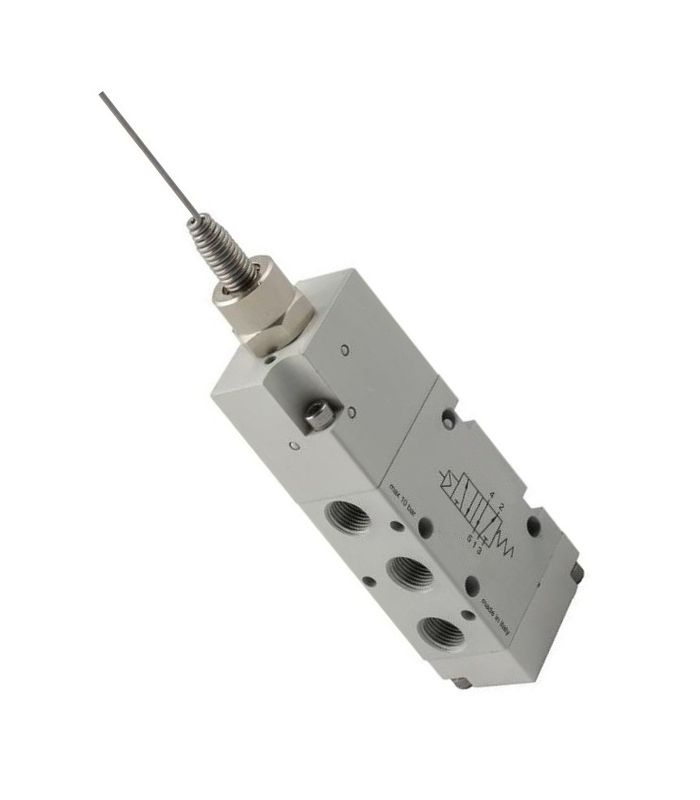

ANTENNA ACTUATED VALVE

The antenna actuated valve is manually actuated by a lever or button, commonly known as an "antenna".

It is available in 3/2-way, which consists of three ports, with one inlet and two outlets. When activated, they connect the inlet to one of the outlets. It is also available in 5/2-way, which consists of five ports and with more flow control options, such as the simultaneous connection or disconnection of different ports.

It is used where simple and direct control of the flow of a fluid (air, water, oil, etc.) is required, such as industrial pneumatics, hydraulics, machinery and automation activities.

Technical data sheet:

• 1/8 - 1/4 mechanical antenna valve in 3/2 and 5/2 monostable versions.
• Made entirely of technopolymer, with a reduced size (22 mm wide).
• Provides a flow rate of 800 l/min. at 6 bar.
• Pressure 10 bar.
• Temperature -5 / 60ºC
