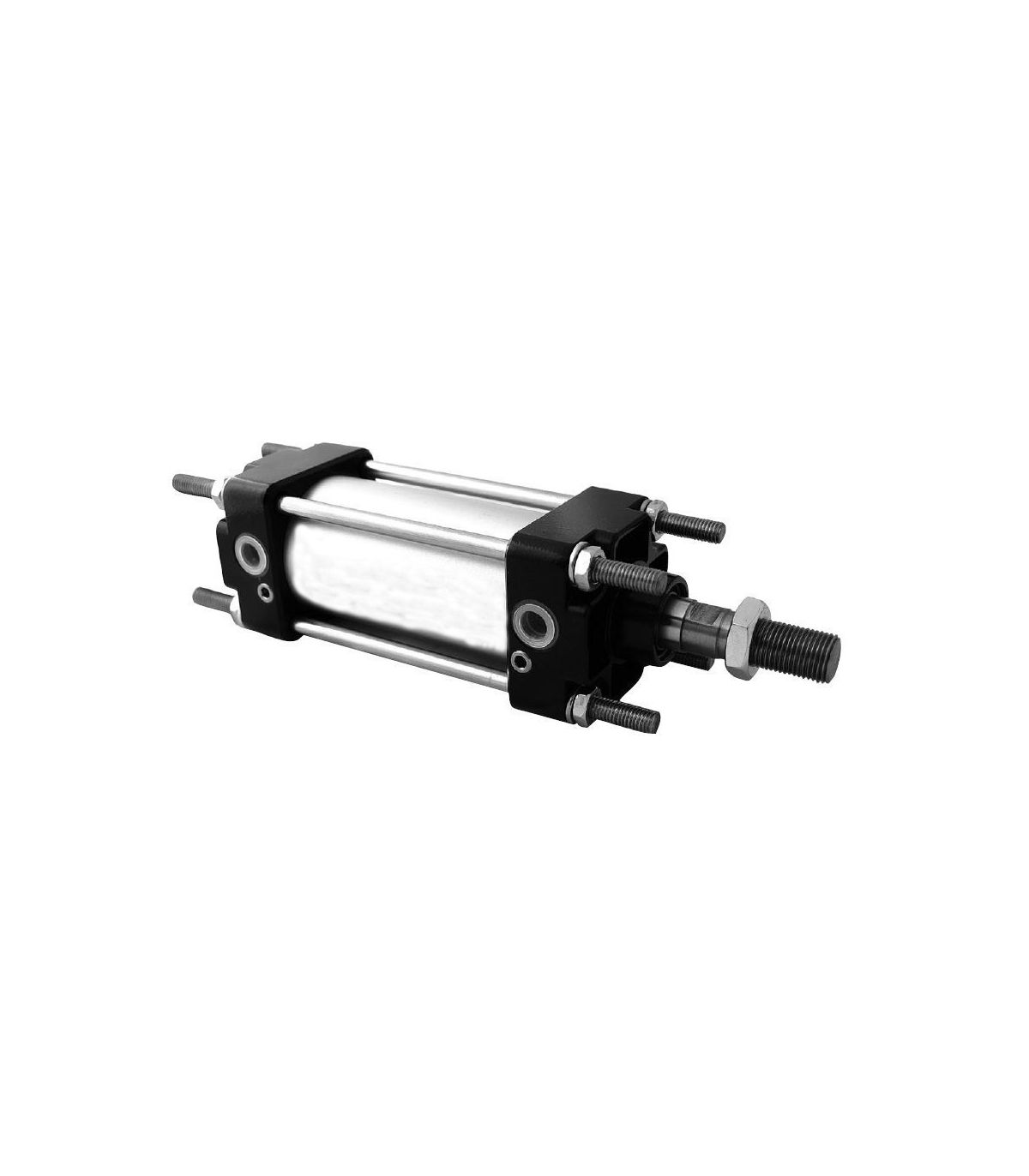

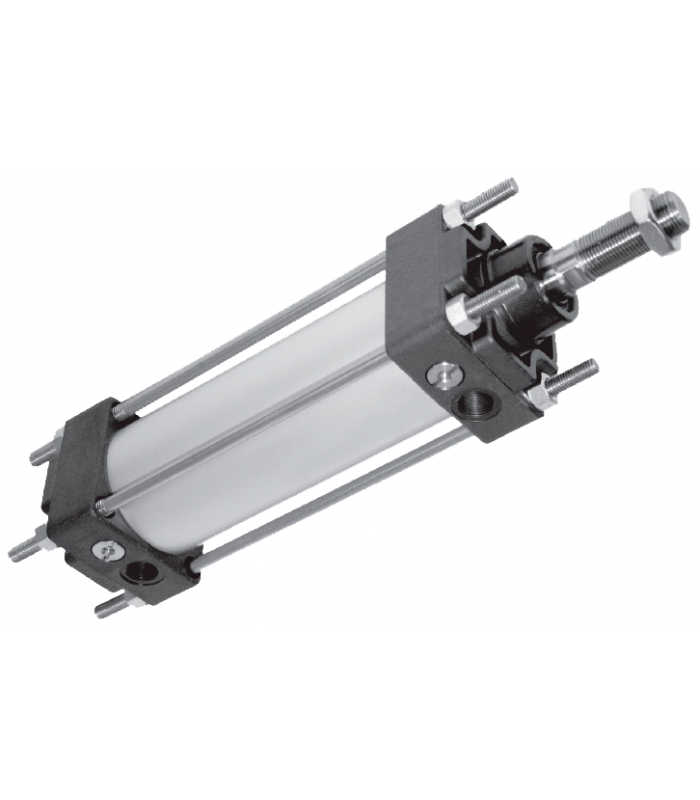

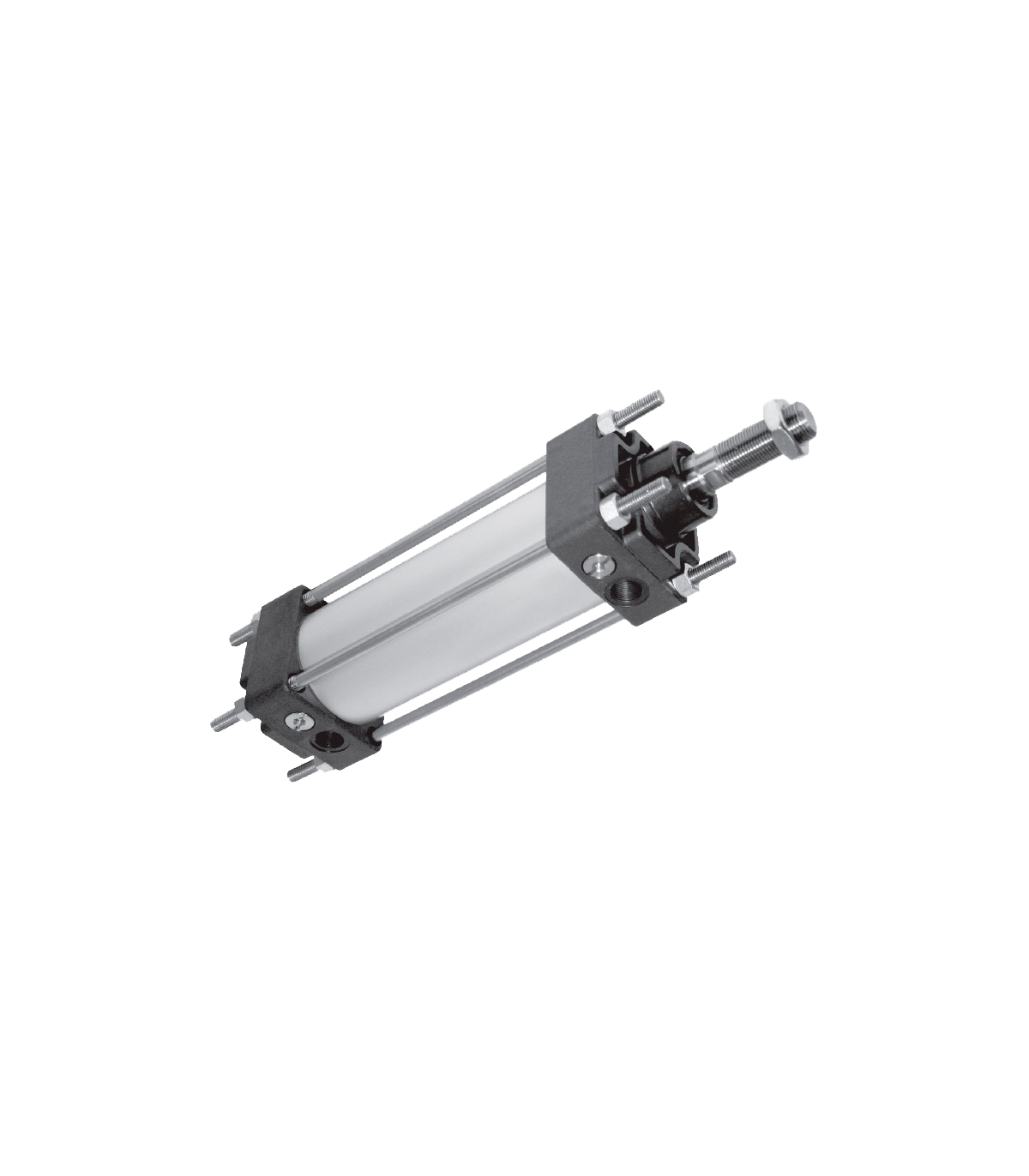

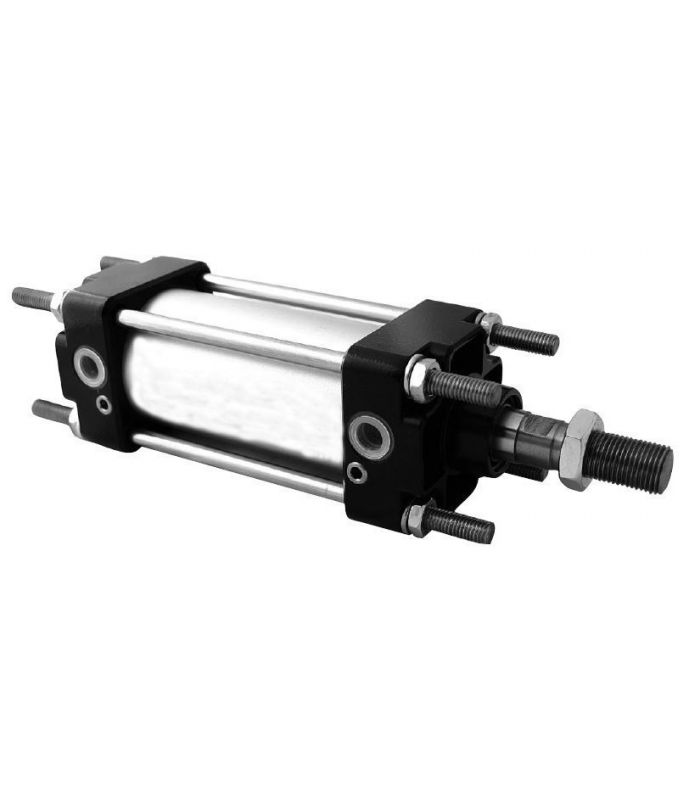

CYLINDER CNOMO PCN

The CNOMO PCN cylinder is a linear actuator that uses compressed air to generate movement, designed under the specifications of the CNOMO standard. The PCN designation refers to a specific series within the CNOMO standard.

Applications: Machine tools, Industrial automation, Handling systems and Assembly equipment.

Technical data sheet:

  • Double effect.
  • Anodized aluminum shirt.
  • Fluorinated elastomer seals.
  • Service temperature -10ºC / 70ºC
  • Working pressure 10 bar
  • Max speed 1 m/s.

Consult other careers or options.

Read moreShow less
€148.05 (tax incl.)
€122.36 (tax excl.)
BORE x STROKE
  • Ø32-25
  • Ø32-50
  • Ø32-80
  • Ø32-100
  • Ø32-125
  • Ø32-160
  • Ø32-200
  • Ø32-250
  • Ø40-25
  • Ø40-50
  • Ø40-80
  • Ø40-100
  • Ø40-125
  • Ø40-160
  • Ø40-200
  • Ø40-250
  • Ø40-320
  • Ø40-400
  • Ø50-25
  • Ø50-50
  • Ø50-80
  • Ø50-100
  • Ø50-125
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø50-320
  • Ø50-400
  • Ø50-500
  • Ø63-25
  • Ø63-50
  • Ø63-80
  • Ø63-100
  • Ø63-125
  • Ø63-160
  • Ø63-200
  • Ø63-250
  • Ø63-320
  • Ø63-400
  • Ø63-500
  • Ø80-25
  • Ø80-50
  • Ø80-80
  • Ø80-100
  • Ø80-125
  • Ø80-160
  • Ø80-200
  • Ø80-250
  • Ø80-320
  • Ø80-400
  • Ø80-500
  • Ø100-25
  • Ø100-50
  • Ø100-80
  • Ø100-100
  • Ø100-125
  • Ø100-160
  • Ø100-200
  • Ø100-250
  • Ø100-320
  • Ø100-400
  • Ø100-500
  • Ø125-25
  • Ø125-80
  • Ø125-100
  • Ø125-125
  • Ø125-160
  • Ø125-200
  • Ø125-250
  • Ø125-320
  • Ø125-400
  • Ø125-500
  • Ø125-600
  • Ø125-700
  • Ø125-800
  • Ø125-900
  • Ø125-1000
Reference:
50040026
Description

CNOMO PCN cylinder

CILINDRO CNOMOCILINDRO CNOMO

Read moreShow less
Product Details
50040026
