MALE HINGE CNOMO PCN
MALE HINGE CNOMO PCN
MALE HINGE CNOMO PCN
MALE HINGE CNOMO PCN

MALE HINGE CNOMO PCN

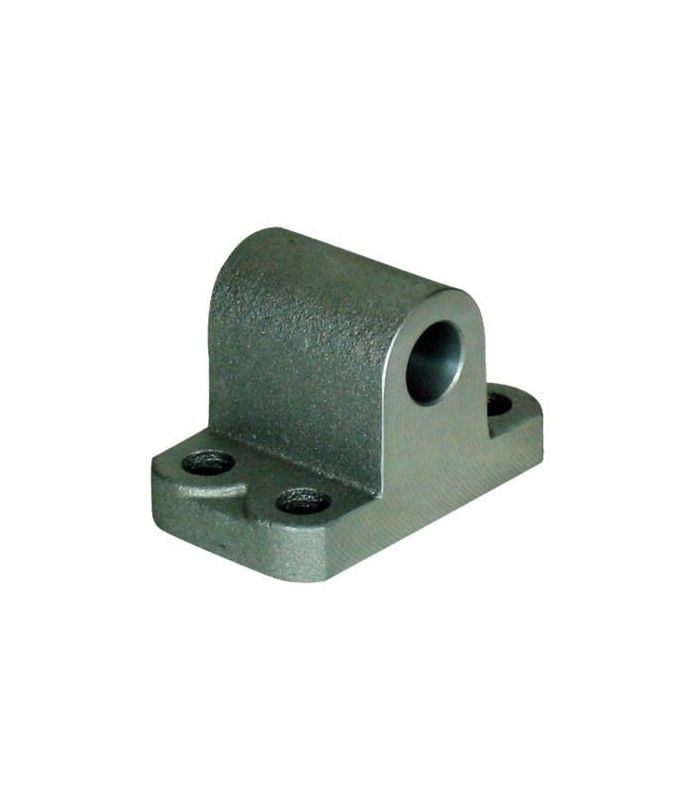

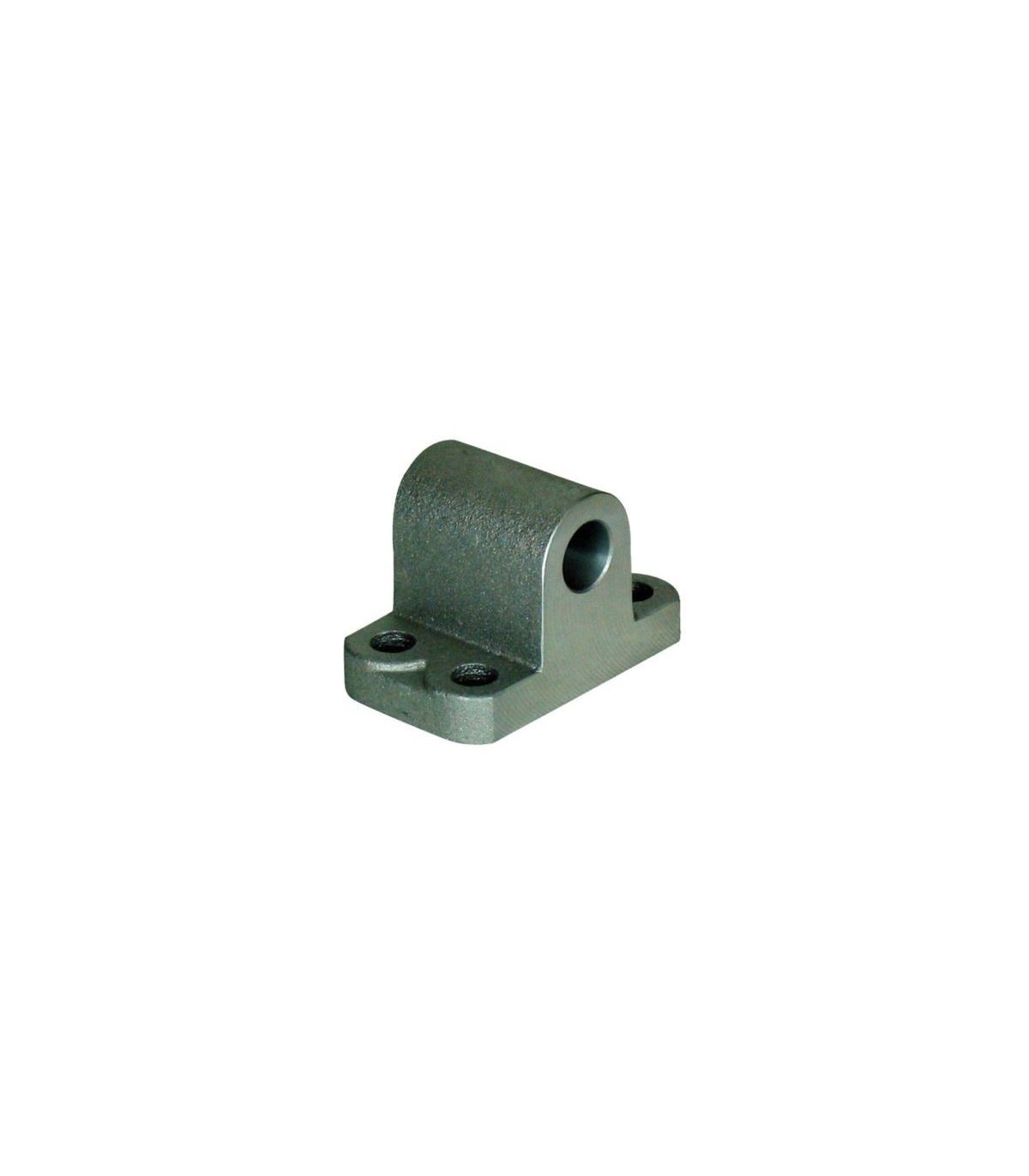

A CNOMO PCN male hinge is used in pneumatic systems to attach the front or rear end of a pneumatic cylinder (especially those conforming to the CNOMO standard) to a structure or component. It allows rotational movement in a single plane.

Applications: Industrial machinery, Automation and robotics, Clamping and positioning, Transport systems.

Technical sheet:

  • Rear joint for CNOMO cylinder
  • Made of aluminum.
€16.62 (tax included)
€13.74 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53840019
Description

CNOMO PCN male hinge

CHARNELA MACHO CNOMO PCN

Product Details
53840019
