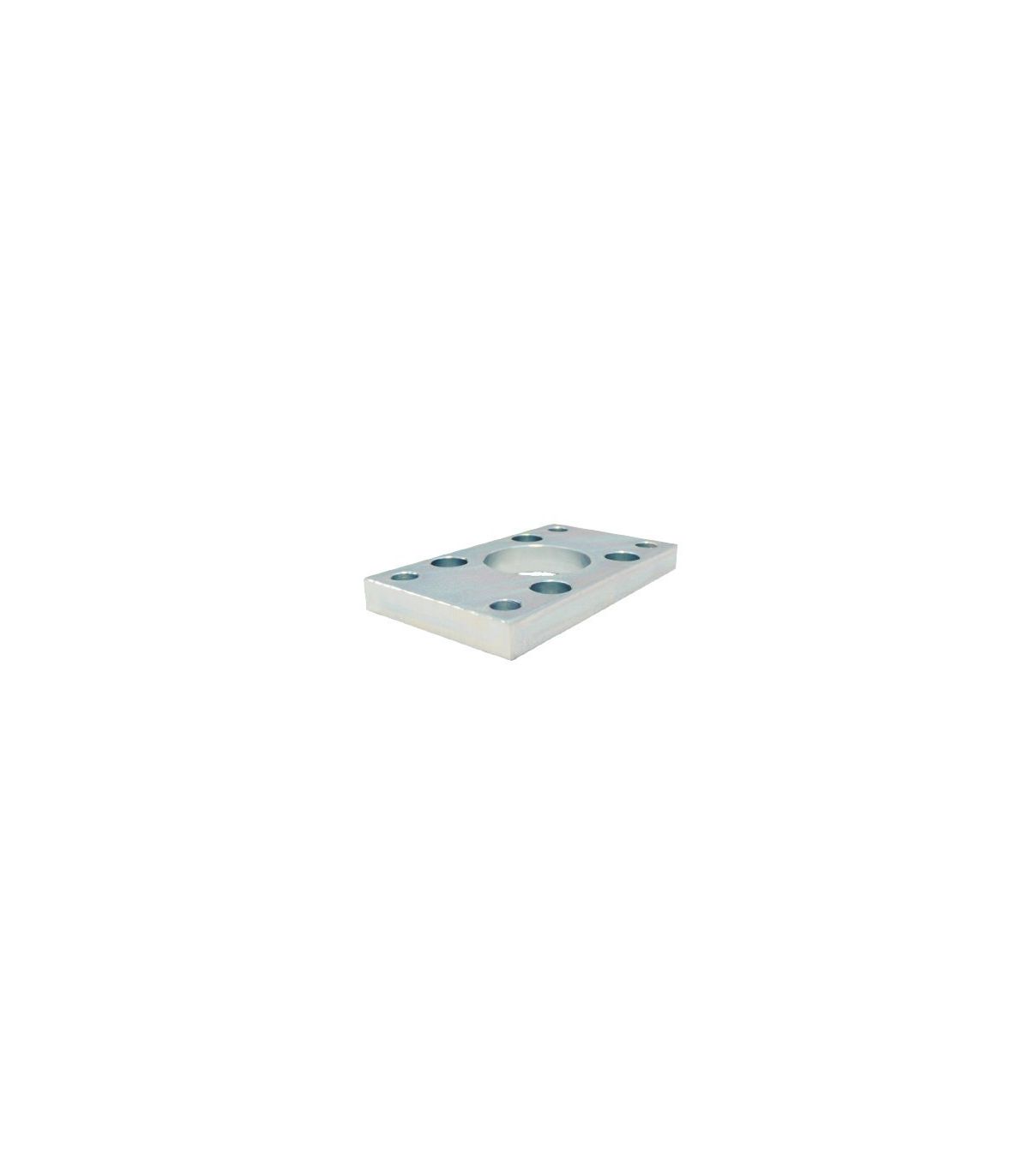

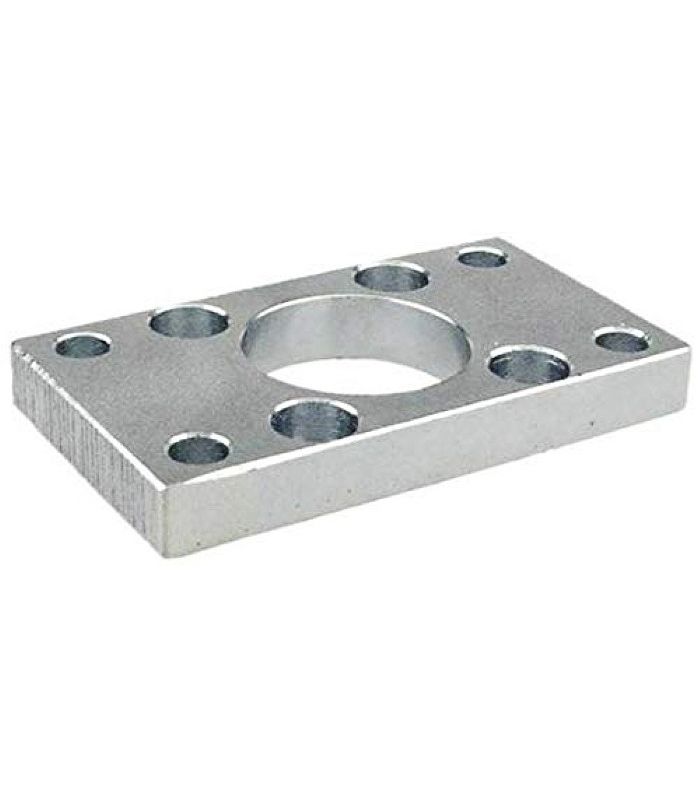

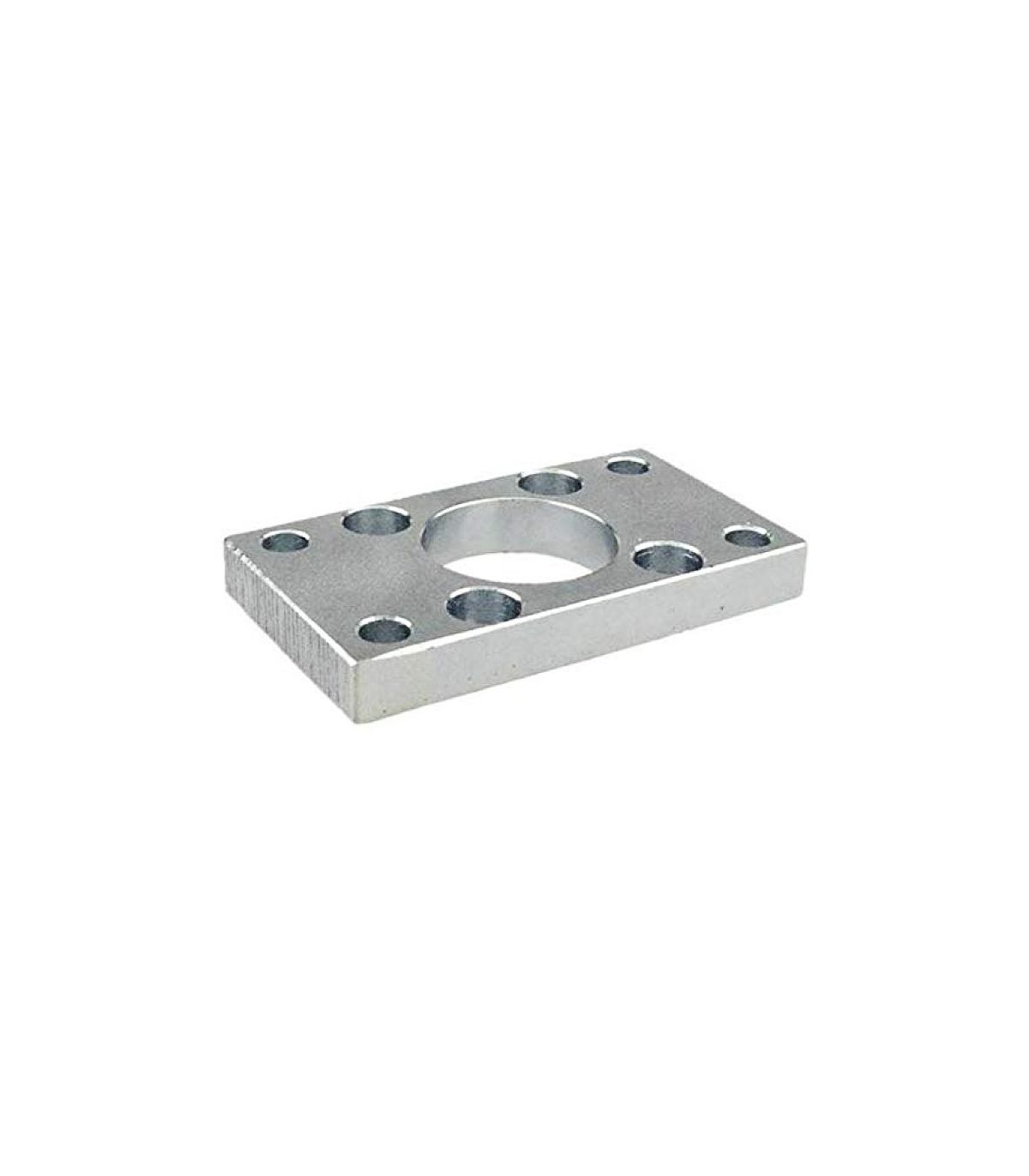

CNOMO PCN FLAT FLANGE
A CNOMO PCN flat flange is a fastener or bracket used to securely mount a pneumatic cylinder to a structure or machine, where the cylinder meets the CNOMO PCN standard. The flat flange, meaning it attaches directly to the mounting surface and the end of the cylinder.
Typical applications: Assembly machinery, Clamping systems, Handling equipment.
Technical sheet:
- Made of steel.
€25.41
(tax included)
€21.00
(tax excl.)
Reference:
53860019
