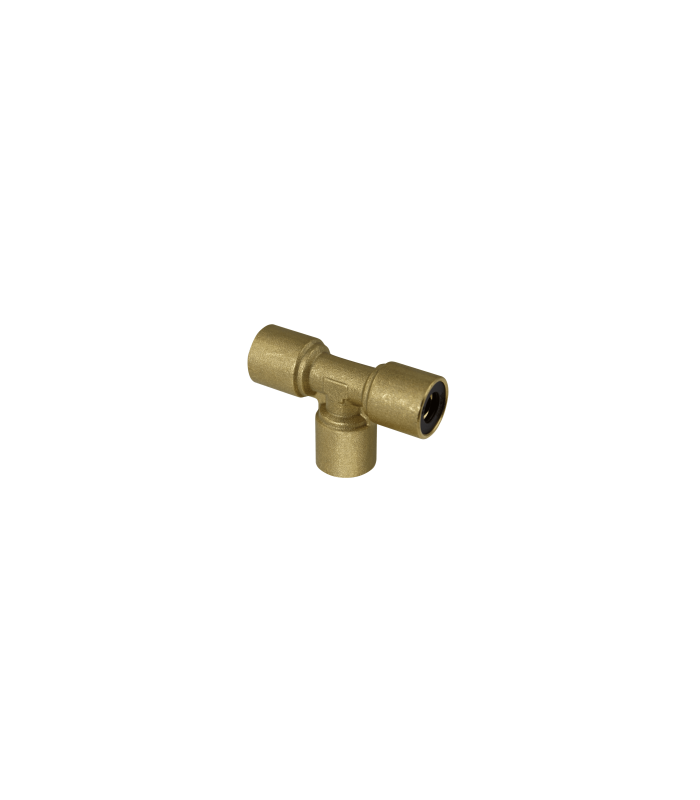

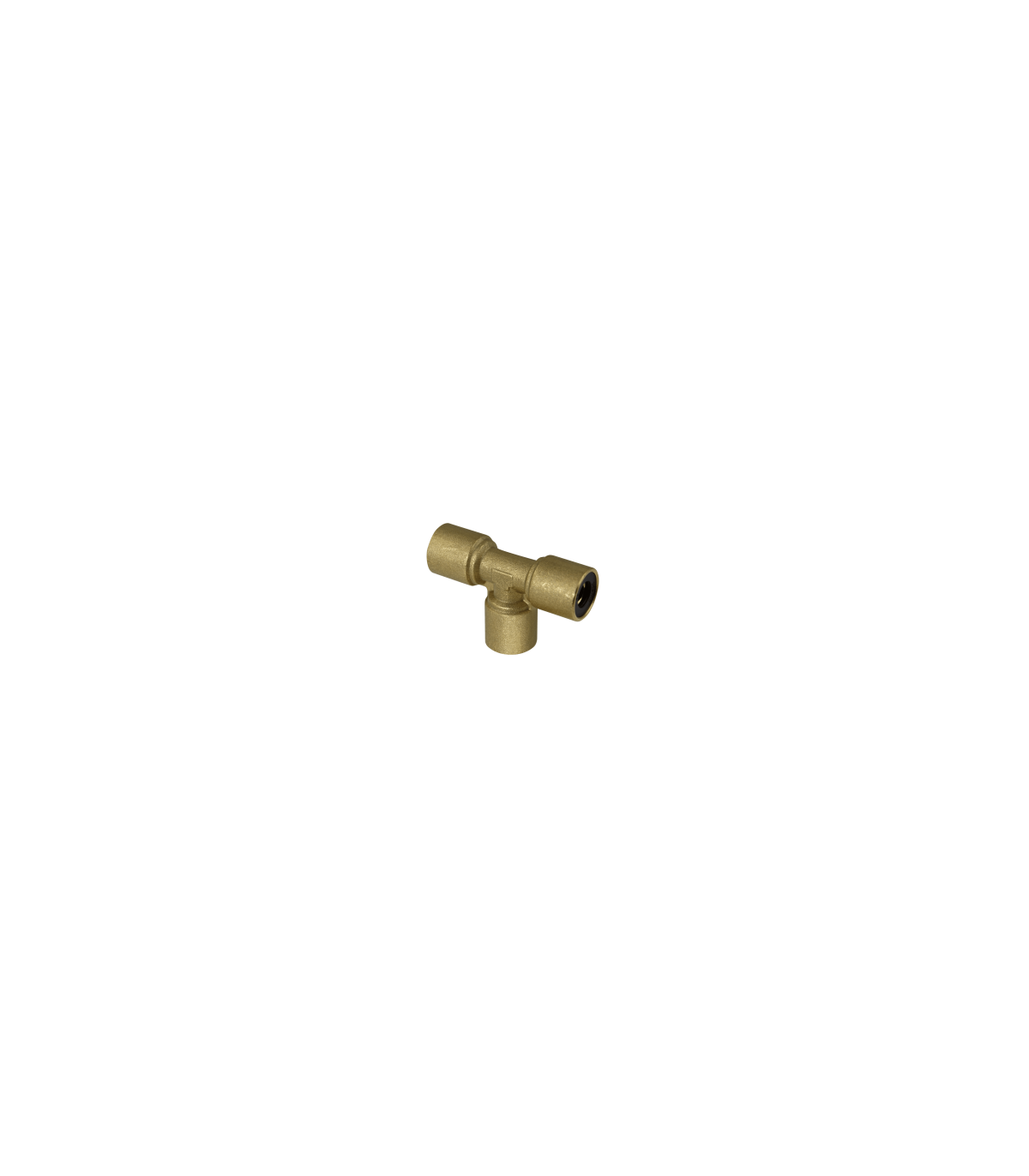

AUTOMATIC TEE UNION FITTING

An automatic tee union fitting for brake systems allows compressed air flow to branch in three directions.

Common applications: Industrial vehicle pneumatic braking systems and Industrial machinery braking systems.

Technical sheet:

  • TÜV certification according to DIN-74324:1996, DIN EN ISO 9227:2017 and 60068-2-6:2008
  • Pressure 0-16 bar
  • Temperature -50 / 100ºC
  • Made of brass, NBR seal, EPDM ring.
Read moreShow less
€4.69 (tax incl.)
€3.88 (tax excl.)

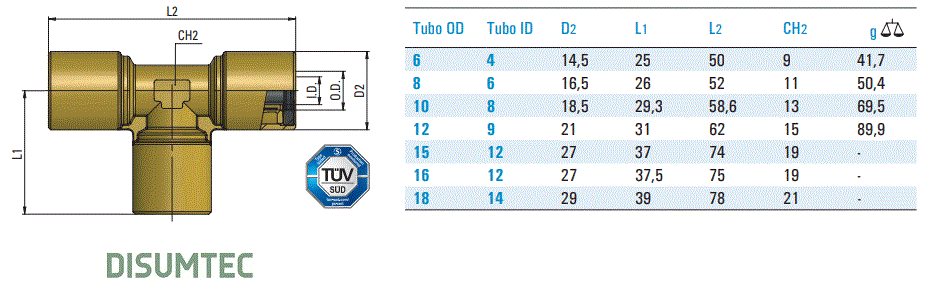

DIAMETERS
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø 16
Reference:
692701
Description

Automatic tee union fitting

Read moreShow less
Product Details
692701
