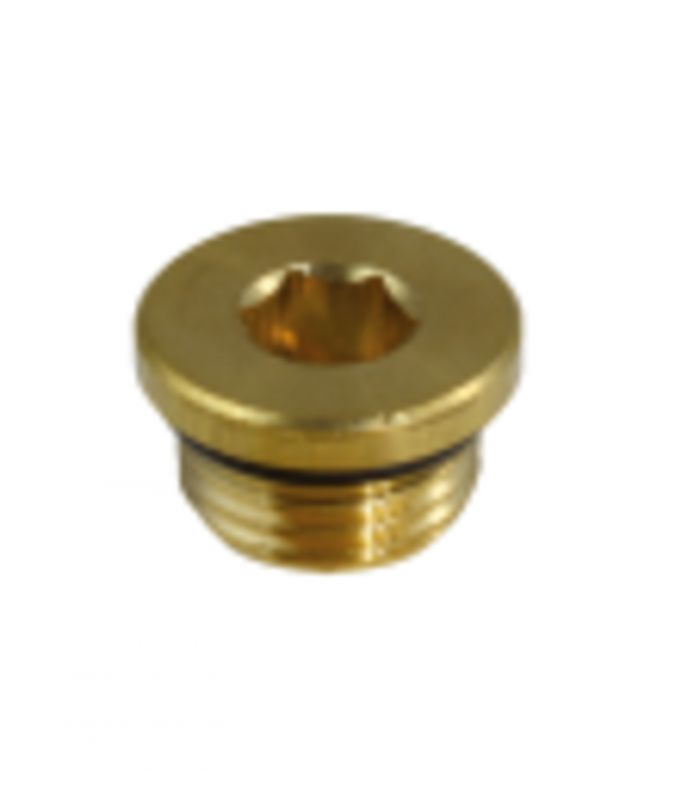

MALE PLUG FITTING

A male plug fitting for brake systems is used to temporarily or permanently close or seal a threaded opening in a pneumatic brake system.

Common applications: Industrial vehicle pneumatic braking systems and Industrial machinery braking systems.

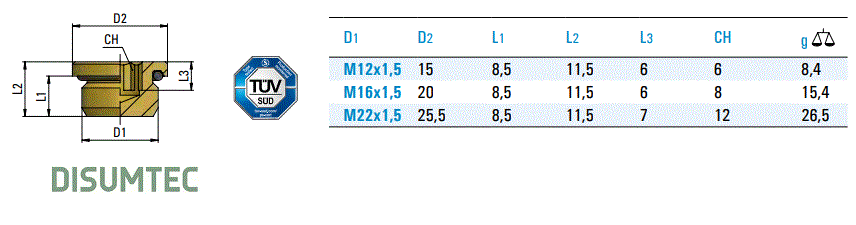

Technical sheet:

Allen male with round head
TÜV certification according to DIN-74324:1996, DIN EN ISO 9227:2017 and 60068-2-6:2008
Pressure 0-16 bar
Temperature -50 / 100ºC
Made of brass, NBR seal, EPDM ring.

€1.21 (tax included)

€1.00 (tax excl.)

SELECT THE THREAD

M12 x 150
M16 x 150
M22 x 150

Reference:

693002

Description
Comments

Description

Male plug fitting

Product Details

Reference 693002

Comments
