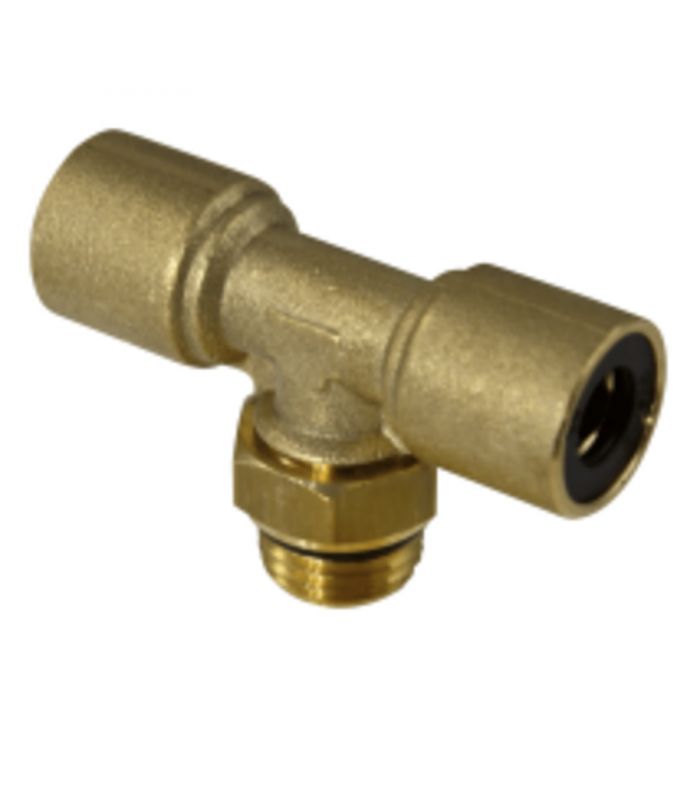

AUTOMATIC ADJUSTABLE CENTRAL THREADED TEE FITTING

An automatically swiveling central threaded fitting allows compressed air flow to branch in three directions. The fitting's central connection can be rotated.

Common applications: Industrial vehicle pneumatic braking systems and Industrial machinery braking systems.

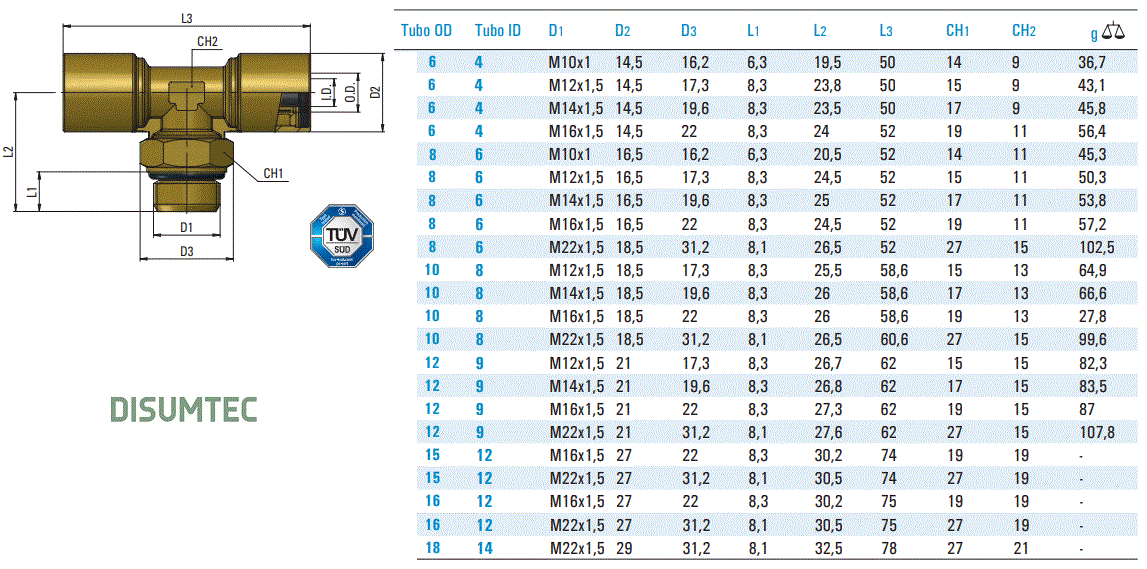

Technical sheet:

TÜV certification according to DIN-74324:1996, DIN EN ISO 9227:2017 and 60068-2-6:2008
Pressure 0-16 bar
Temperature -50 / 100ºC
Made of brass, NBR seal, EPDM ring.

€3.96 (tax included)

€3.27 (tax excl.)

SELECT THE THREAD

M12 x 150
M14 x 150
M16 x 150
M22 x 150

Ø TUBE

Ø 6x4
Ø 8x6
Ø 10x8
Ø 12x10

Reference:

692301

Description
Comments

Description

Automatic adjustable central threaded fitting

Product Details

Reference 692301
