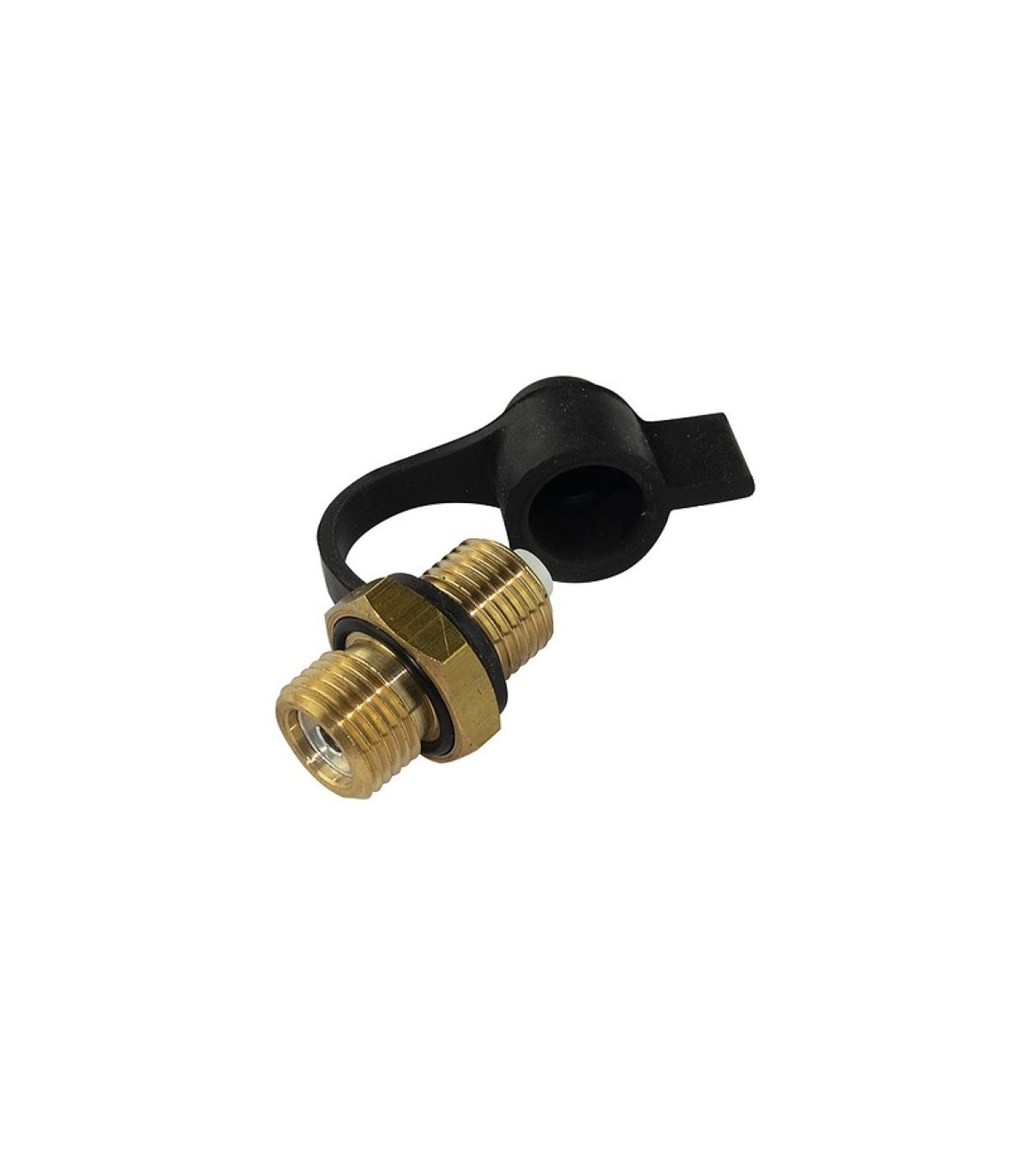

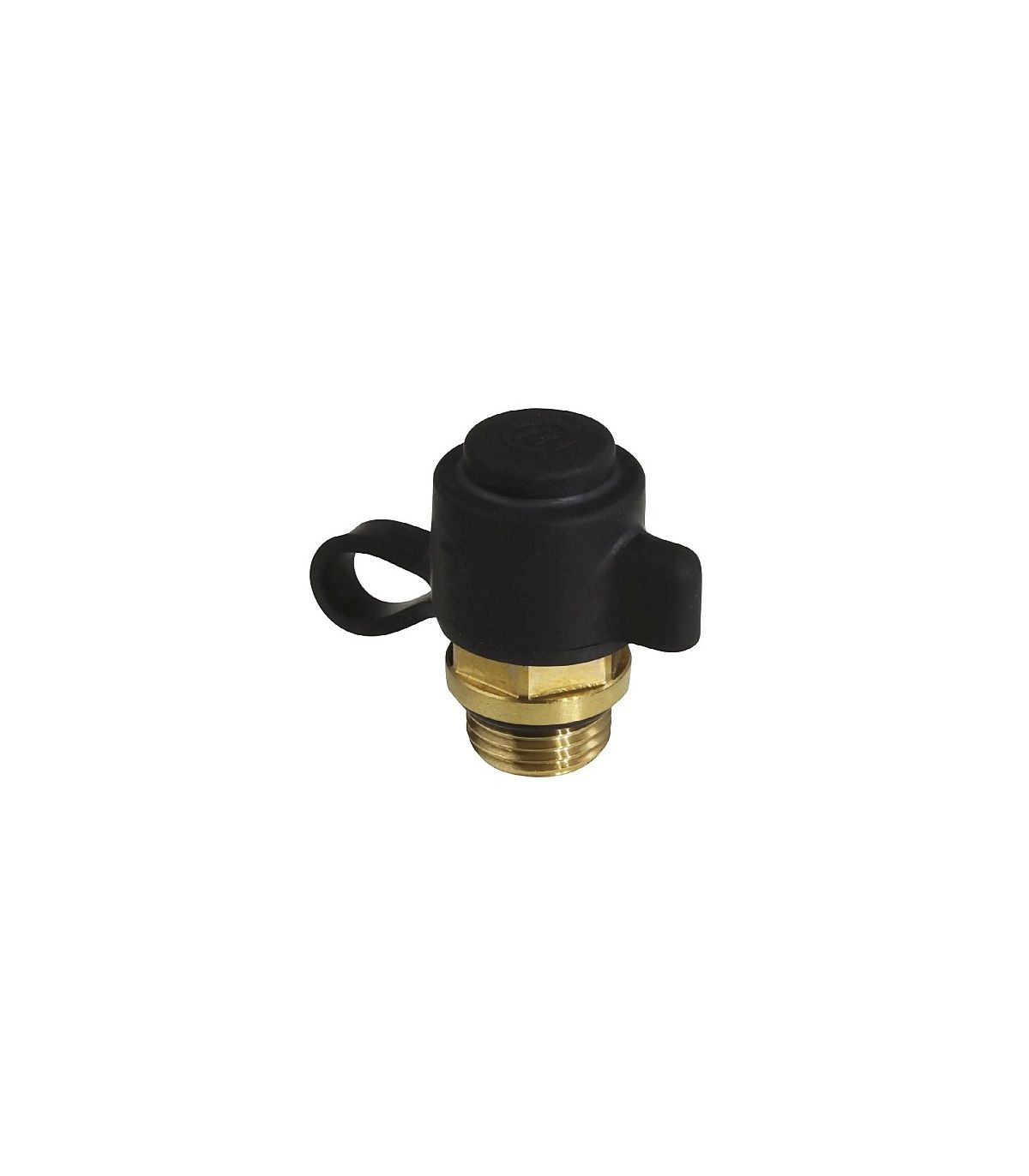

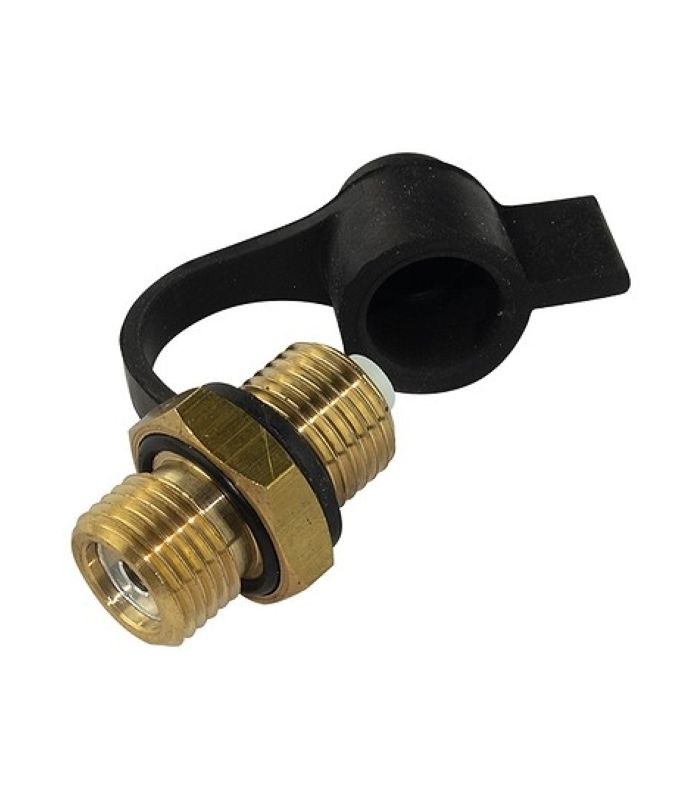

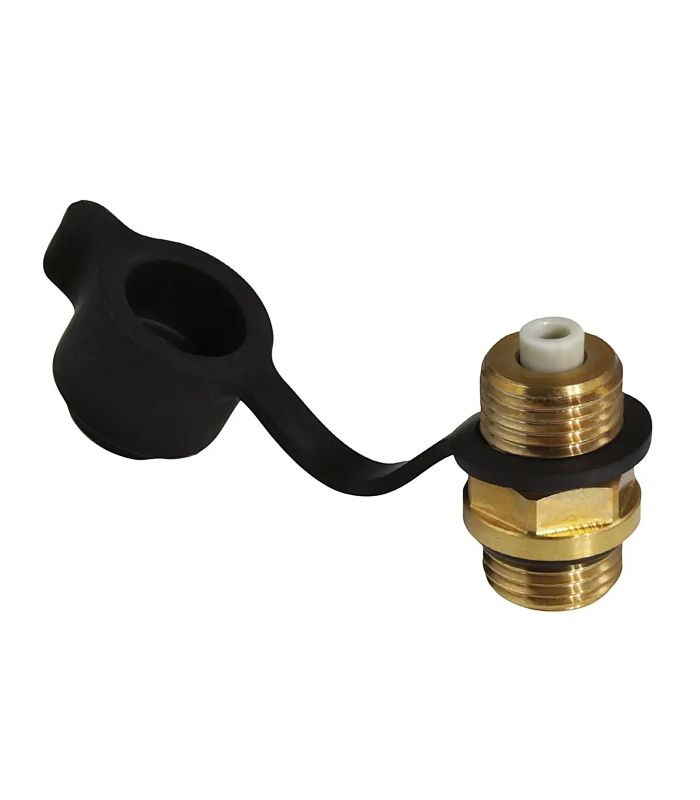

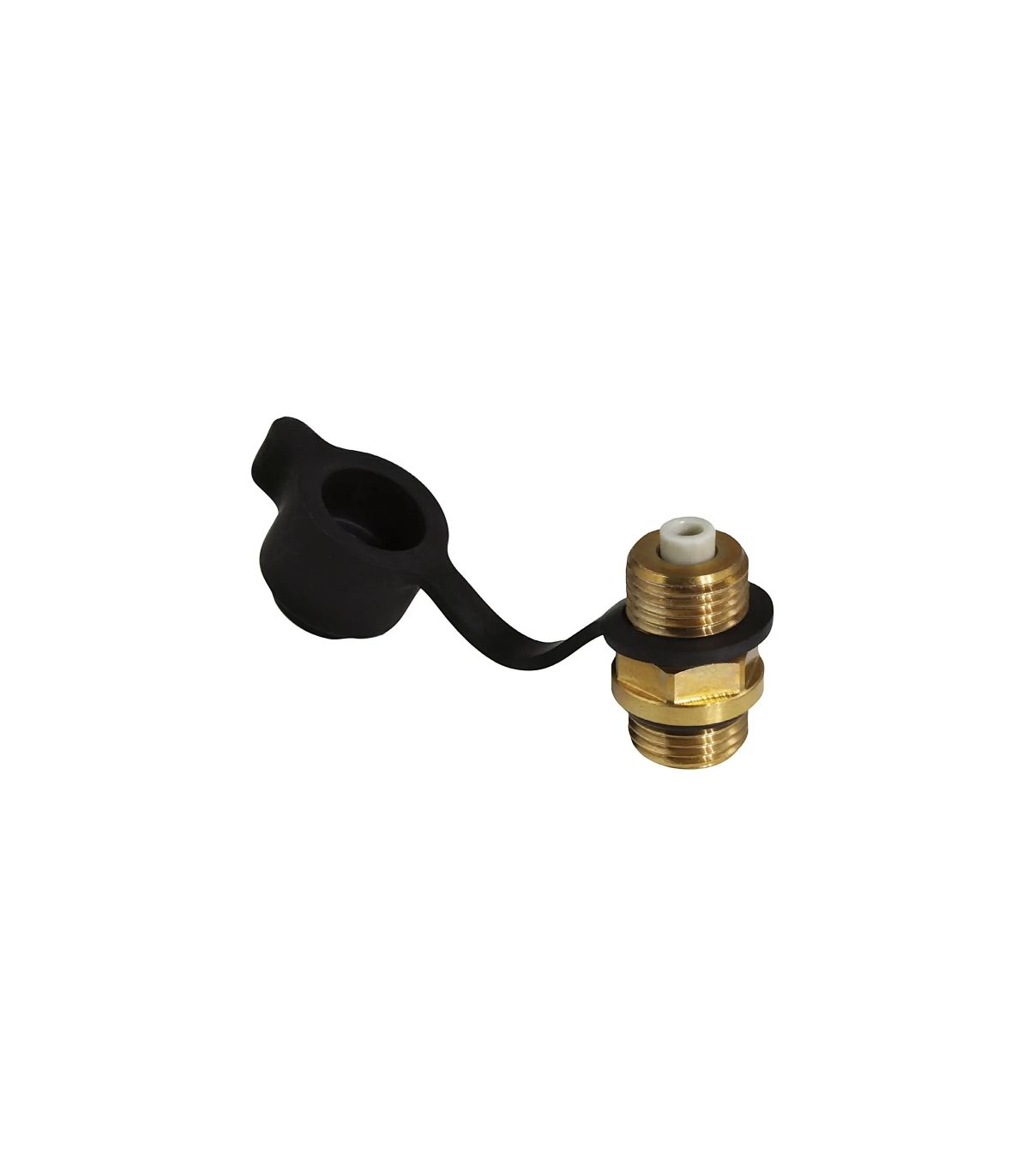

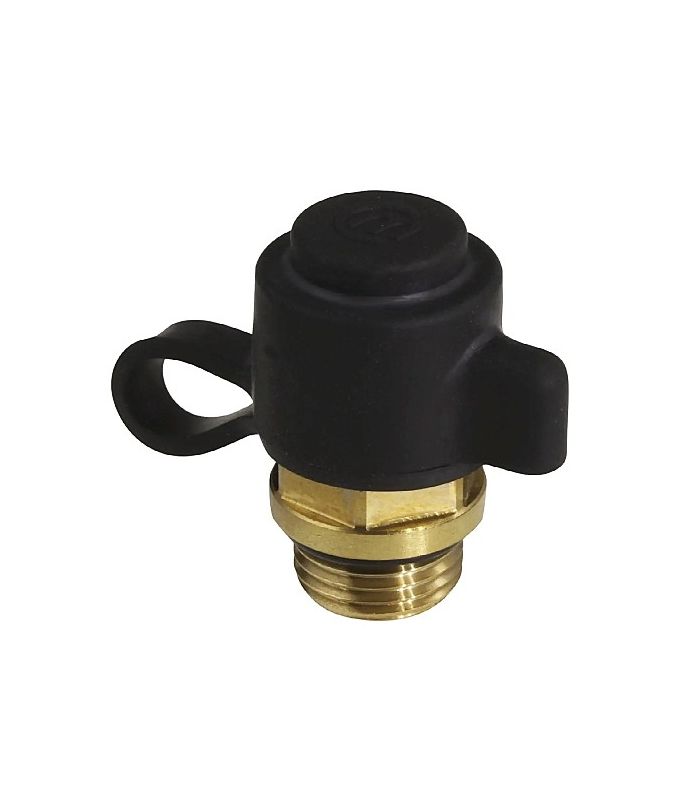

BRAKE PRESSURE TAPPING FITTING

The brake pressure fitting is a threaded component designed to be permanently connected to a vehicle's hydraulic braking circuit.

Typical applications: trucks, agricultural machinery and buses.

Main features:

Male thread
Certification according to ISO-3583
Pressure 0-16 bar
Temperature -50 / 100ºC
Made of brass, NBR gasket, EPDM ring.

€4.36 (tax included)

€3.60 (tax excl.)

SELECT THE THREAD

M16 x 150
M22 x 150

Reference:

693301

Description
Comments

Description

Brake pressure fitting

A pressure tap fitting for brake systems with a male thread is an accessory designed to allow the measurement of internal pressure in a brake circuit, incorporating a male threaded connection that facilitates its installation in the system.

Applications

Braking systems in industrial vehicles
Heavy machinery
Hydraulic equipment where pressure control is required

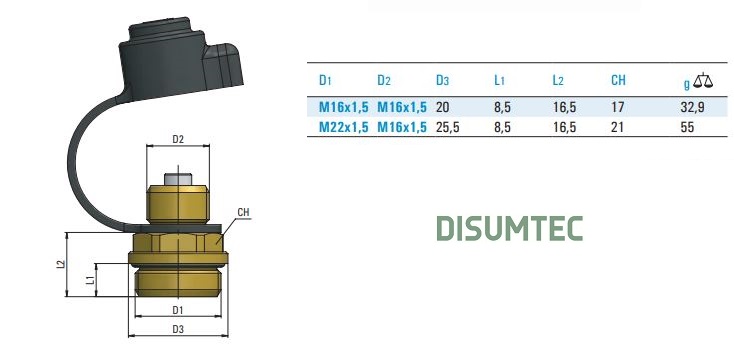

Technical specifications of a brake pressure tap fitting:

Product Details

Reference 693301
