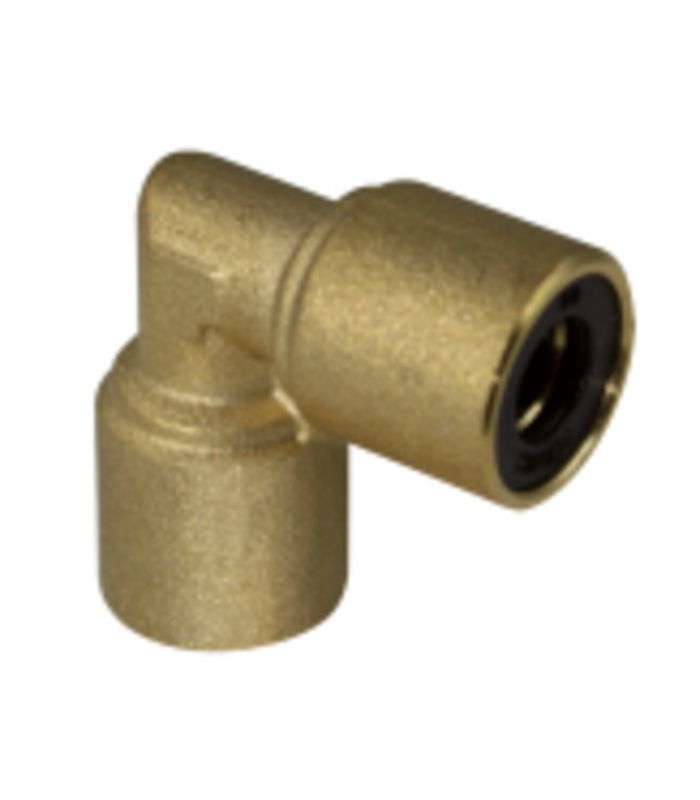

AUTOMATIC ELBOW UNION FITTING

An automatic elbow union fitting for brake systems is used to join two sections of pipe at a 90º angle.

Common applications: Industrial vehicle pneumatic braking systems and Industrial machinery braking systems.

Technical sheet:

TÜV certification according to DIN-74324:1996, DIN EN ISO 9227:2017 and 60068-2-6:2008
Pressure 0-16 bar.
Temperature -50 / 100ºC
Made of brass, NBR seal, EPDM ring.

€3.38 (tax included)

€2.79 (tax excl.)

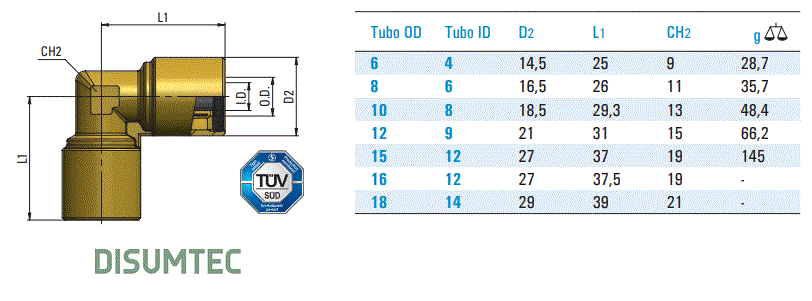

DIAMETERS

Reference:

692601

Description
Comments

Description

automatic elbow union fitting

Product Details

Reference 692601

Comments
