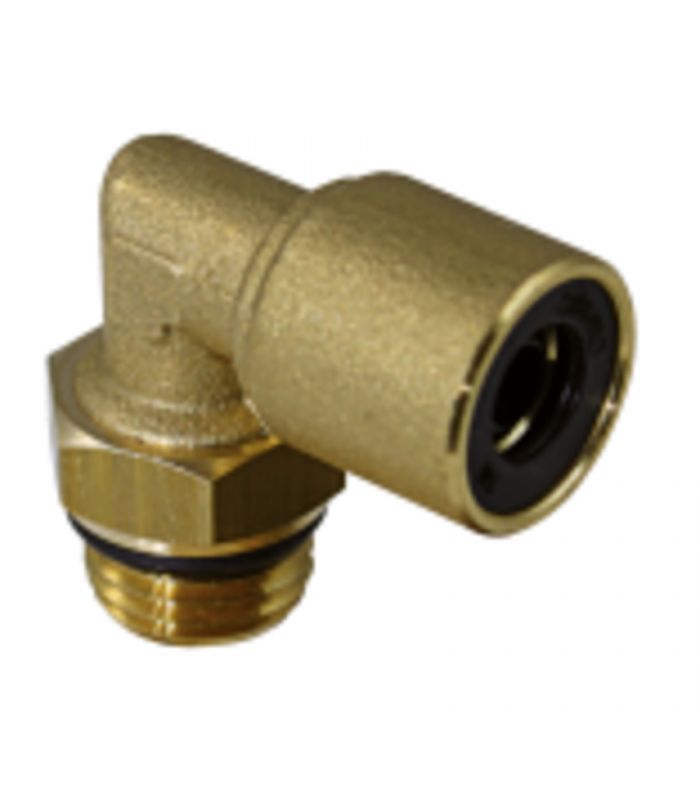

AUTOMATIC ELBOW FITTING

An automatic elbow fitting is designed to connect compressed air lines at 90° angles in brake systems.

Common applications: Industrial vehicle pneumatic braking systems and Industrial machinery braking systems.

Technical sheet:

TÜV certification according to DIN-74324:1996, DIN EN ISO 9227:2017 and 60068-2-6:2008
Pressure 0-16 bar
Temperature -50 / 100ºC
Made of brass, NBR seal, EPDM ring.

€2.60 (tax included)

€2.15 (tax excl.)

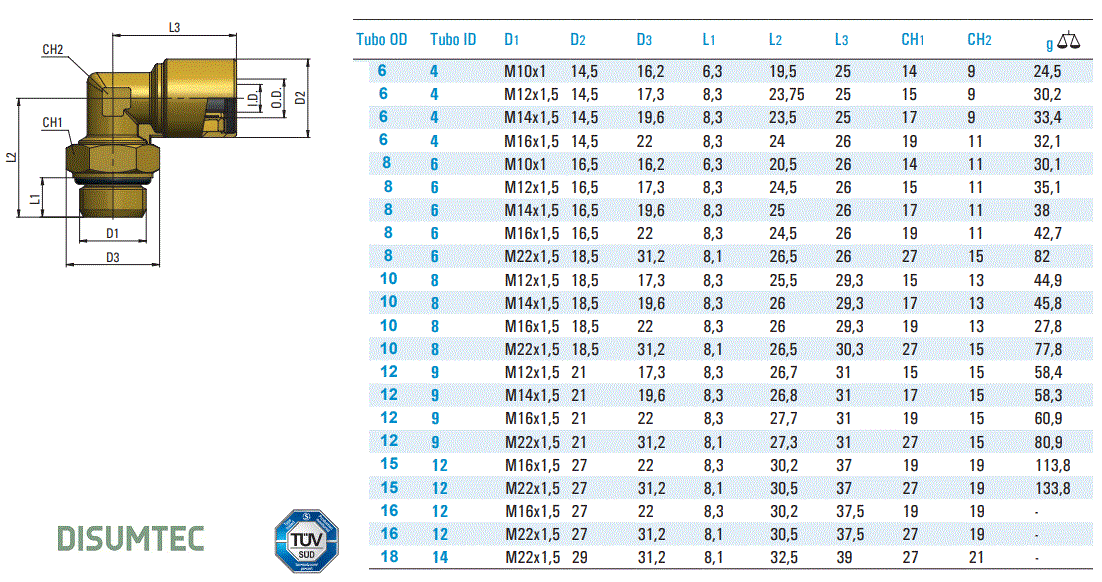

SELECT THE THREAD

M12 x 150
M14 x 150
M16 x 150
M22 x 150

Ø TUBE

Ø 6x4
Ø 8x6
Ø 10x8
Ø 12x10

Reference:

692201

Description
Comments

Description

Automatic elbow fitting

Product Details

Reference 692201

Comments
