SPEED MULTIPLIER TRACTOR SOCKET QUICK PLUG

SPEED MULTIPLIER TRACTOR SOCKET QUICK PLUG

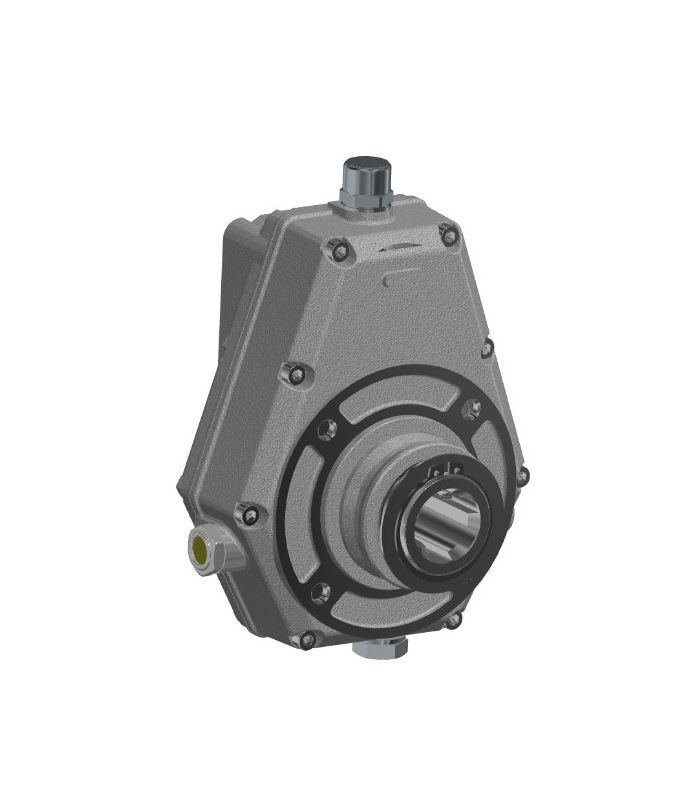

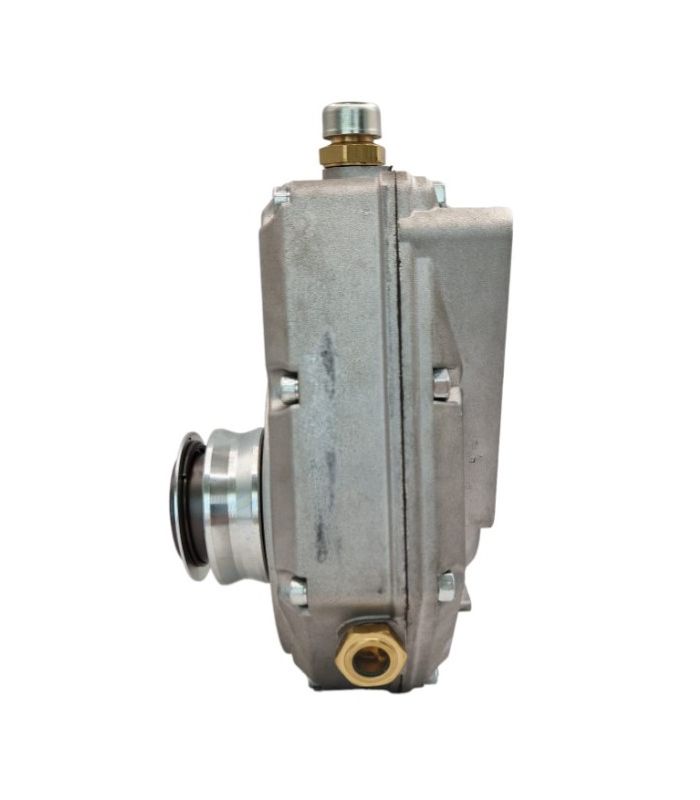

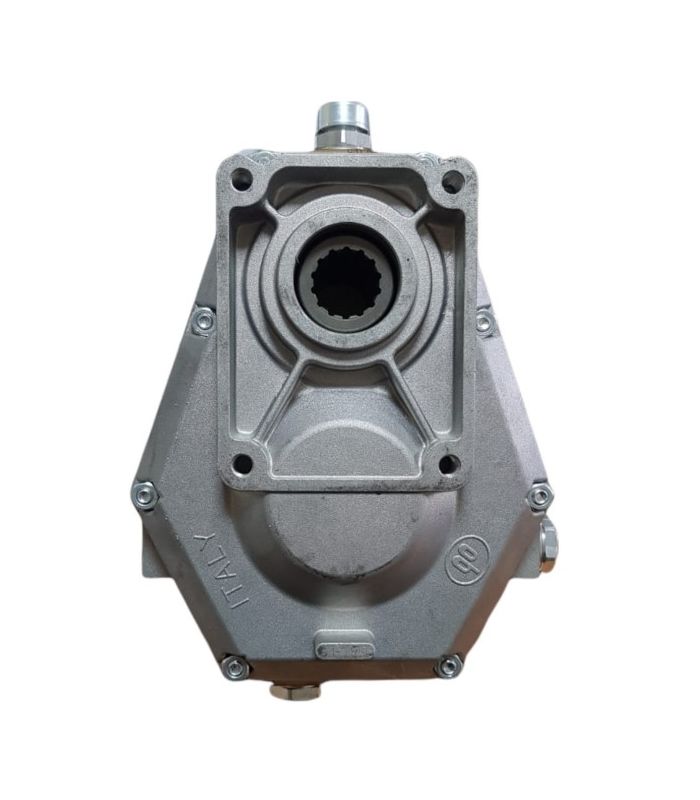

The tractor PTO speed multiplier is a mechanism used to adapt the power and speed generated by an engine. Therefore, a PTO speed multiplier connects the high-pressure hydraulic pump to the tractor's PTO. This model incorporates a quick-connect system, making coupling and uncoupling the equipment quick and easy.

Applications: agriculture, construction or industry.

Technical sheet:

For mounting on GR-3 and GR-2 type pumps
Quick-plug type tractor socket shaft.
Maximum 540 rpm on tractor intake.
Max pressure 200 bar
DIN-5482 motor crown
Multiplication ratio 1 : 3.5
Supplied without oil, we recommend SAE-90 type oil
Maximum temperature: 120ºC
Designed to withstand the most demanding conditions of agricultural or industrial work.
They are ideal for tractor implements (loader, forestry crane, wood splitter, chipper, backhoe, etc.)

€116.16 (tax included)

€96.00 (tax excl.)

SIZE

GR-2
GR-3

Reference:

48138

Description
Comments

Description

speed multiplier tractor socket quick plug

Product Details

Reference 48138
