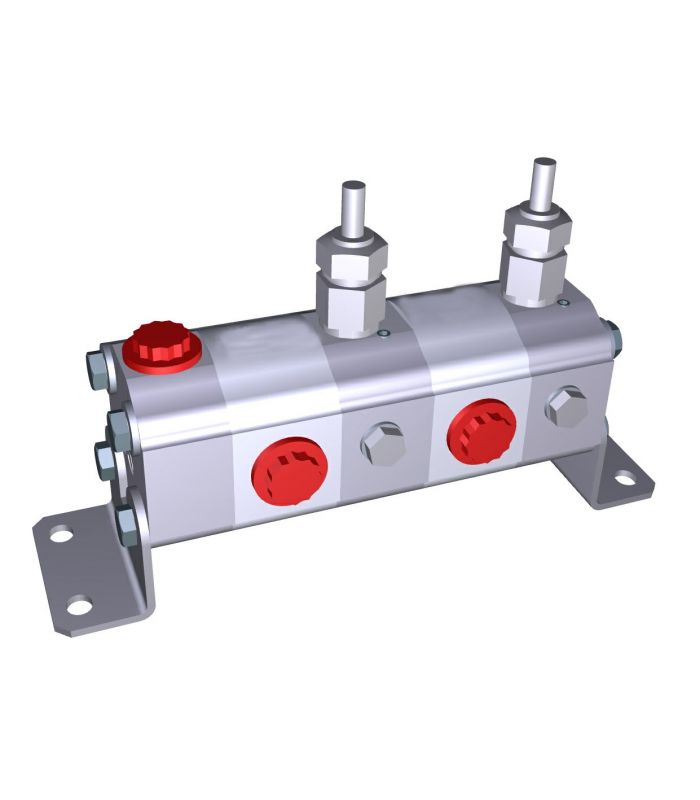

GR1 Gear Flow Divider

A GR1 two-body gear flow divider splits a unidirectional flow into two proportional flows, using two gear bodies that rotate at the same speed on a single shaft. Ideal for synchronizing the speed of two identical cylinders.

Main features:

  • 1/2" Inlet 3/8" Outlets
  • Maximum speed 3000 rpm.
  • Maximum pressure 220 bar
  • Selection options between 1.2 and 9.5 cm³
  • It incorporates a compensation valve.
€592.90 (tax included)
€490.00 (tax excl.)
OUTPUT TYPE
  • 2 OUTPUTS
  • 4 OUTPUTS
CAUDAL
  • 1.2 cc/rev
  • 1.7 cc/rev
  • 2.3 cc/rev
  • 2.7cc/rev
  • 3.2cc/rev
  • 3.8 cc/rev
  • 4.3 cc/rev
  • 5 cc/rev
  • 6.3 cc/rev
  • 7.8 cc/rev
  • 9.5 cc/rev
Reference:
4938100
Description

GR1 Gear Flow Divider

A GR1 two-body gear flow divider is a hydraulic component designed to divide the flow of a fluid into two equal or proportional outlets , using two mechanically coupled gear sections (bodies). This type of divider ensures precise flow distribution , regardless of pressure variations at each outlet.

Common applications

  • Synchronization of hydraulic cylinders.
  • Industrial and mobile machinery.
  • Lifting systems, presses, platforms and simultaneous movement equipment.
  • Hydraulic circuits where uniform flow distribution is required.

Technical specifications of a GR1 gear flow divider:

Product Details
4938100
