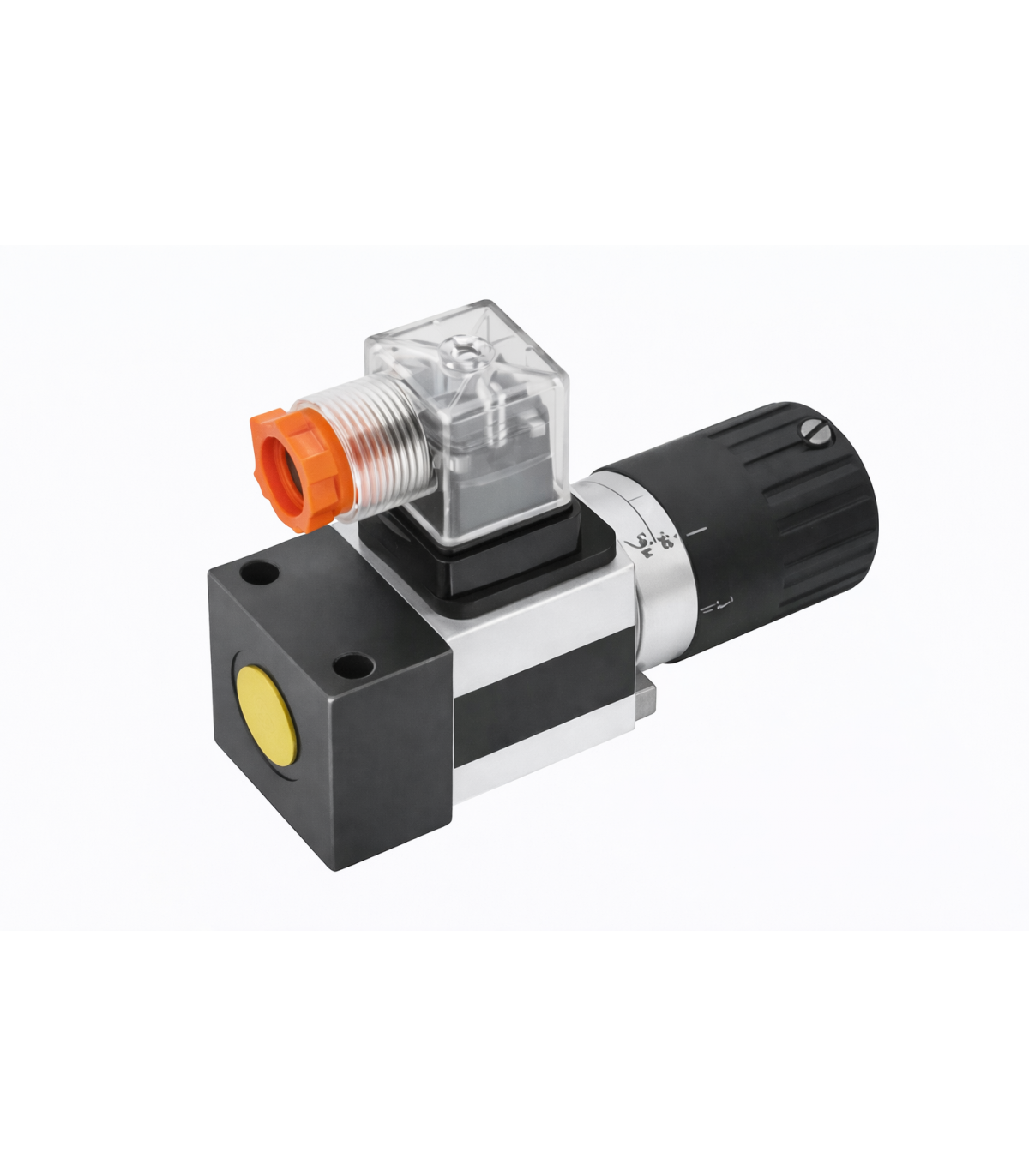

PRESSURE SWITCH WITH KNOB

PRESSURE SWITCH WITH KNOB

A pressure switch with a knob is a device that opens or closes an electrical circuit based on a preset pressure, adjusted by the knob. It activates automatically when the pressure reaches the preset value.

Applications: Compressed air systems, Compressors, Pneumatic installations, Hydraulic equipment, Industrial automation.

Main features:

  • Pressure switch that is switched and adjustable by means of a round knob.
  • 1/4" Female Thread
  • It comes with an LED connector.
  • Temperature -30 / 80ºC.
  • Acceptable oil viscosity 2.8 at 500 mm2/sec
  • Frequency 80 cycles per minute.
  • Maximum operating voltages 250VAC 125VDC
€81.07 (tax included)
€67.00 (tax excl.)
PRESSURE
  • 5 - 50 Bar
  • 10 - 100 Bar
  • 15 - 200 Bar
  • 25 - 350 Bar
Reference:
491301
Description

Pressure switch with knob

The knob-operated pressure switch is a device designed for the automatic control and regulation of pressure in pneumatic and hydraulic systems. It allows an electrical circuit to be activated or deactivated based on a pre-set pressure value.

It incorporates a manual adjustment knob , which facilitates quick and precise adjustment of the switching point without the need for tools, optimizing maintenance and commissioning tasks.

Main features

  • Adjustment via manual knob
  • Electrical switching function (ON/OFF) by pressure
  • High precision and repeatability
  • Robust construction for industrial environments
  • Easy installation and adjustment

Applications

  • Compressed air systems
  • Compressors
  • Pneumatic installations
  • Hydraulic equipment
  • Industrial automation

Download technical data sheet

Product Details
491301
