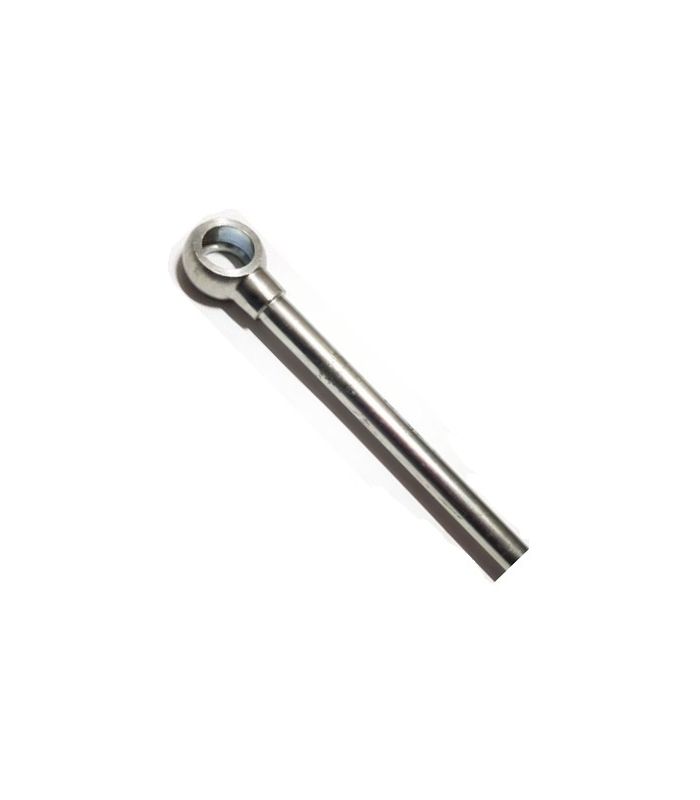

Extended ball fitting

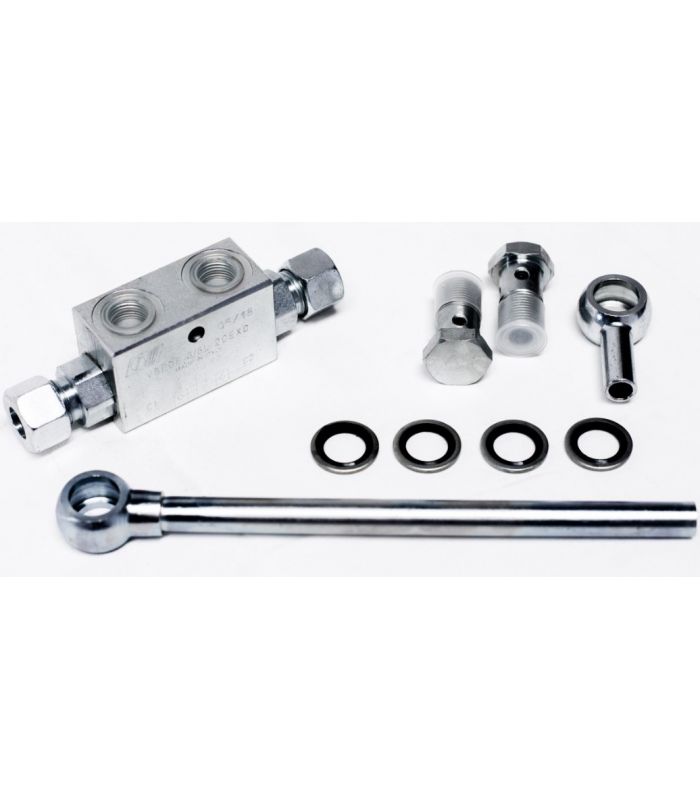

Extended ball fitting for mounting on double piloted check valves

Technical sheet:

Made of carbon steel.
Working temperature -40 / 150ºC.
Working pressure 250 bar.
Possibility of choosing various lengths and diameters of the sphere.
1/4" and 3/8" comes out in Ø12 tube
1/2" Comes with Ø15 tube

€3.39 (tax included)

€2.80 (tax excl.)

DIAMETERS

Ø 1/4
Ø 3/8
Ø 1/2"

EXTENT

Reference:

4927101

Description
Comments

Description

Extended ball fitting

Product Details

Reference 4927101
