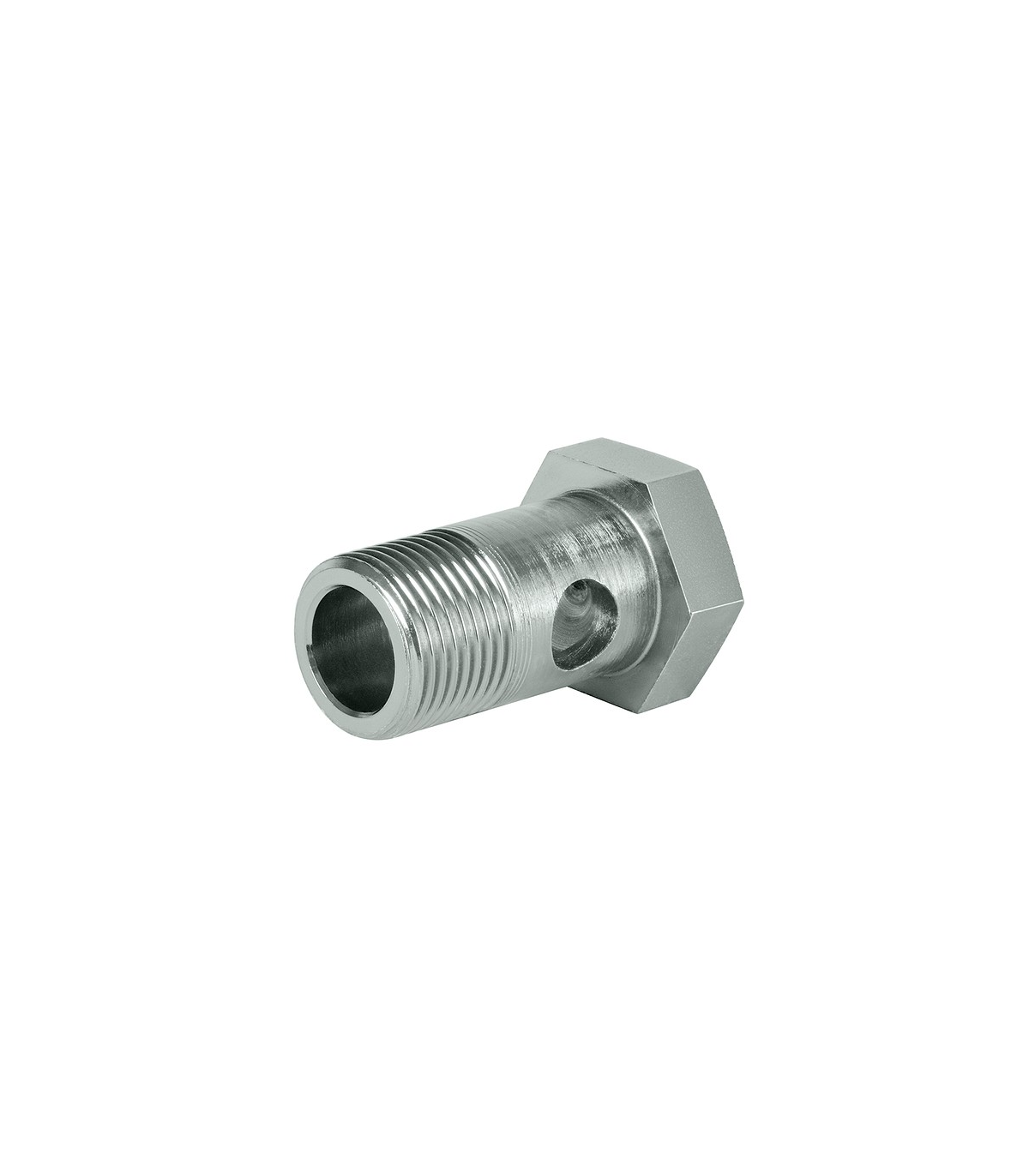

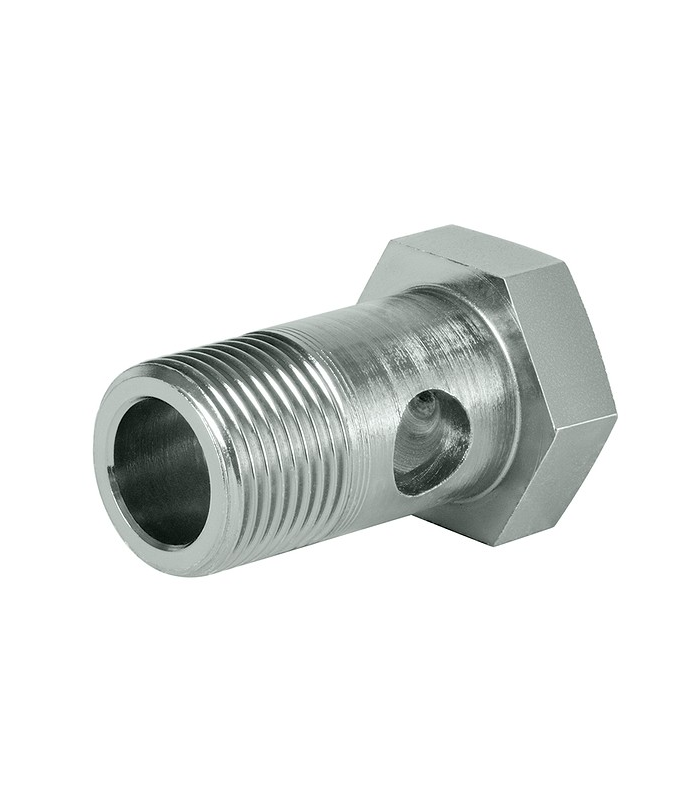

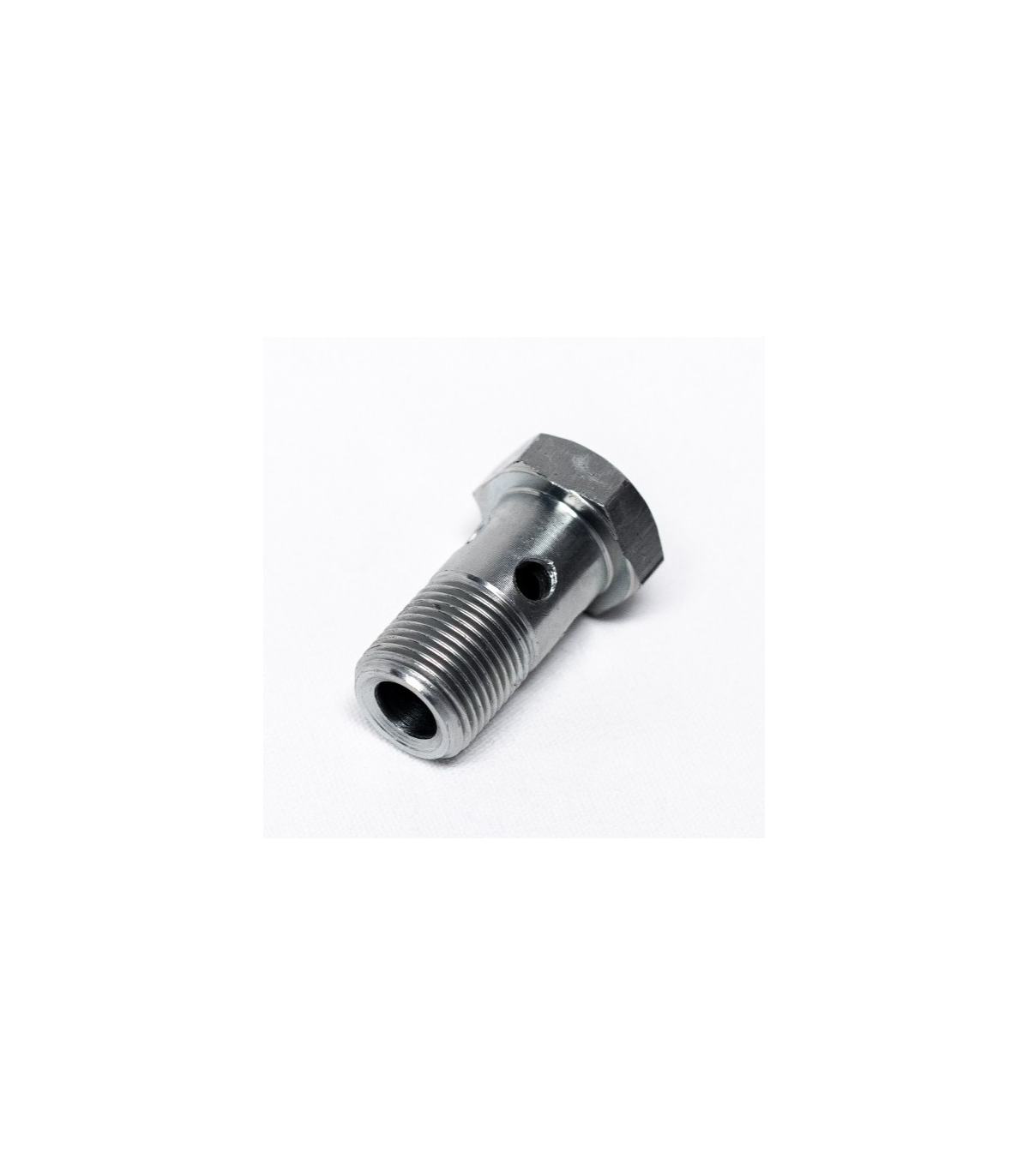

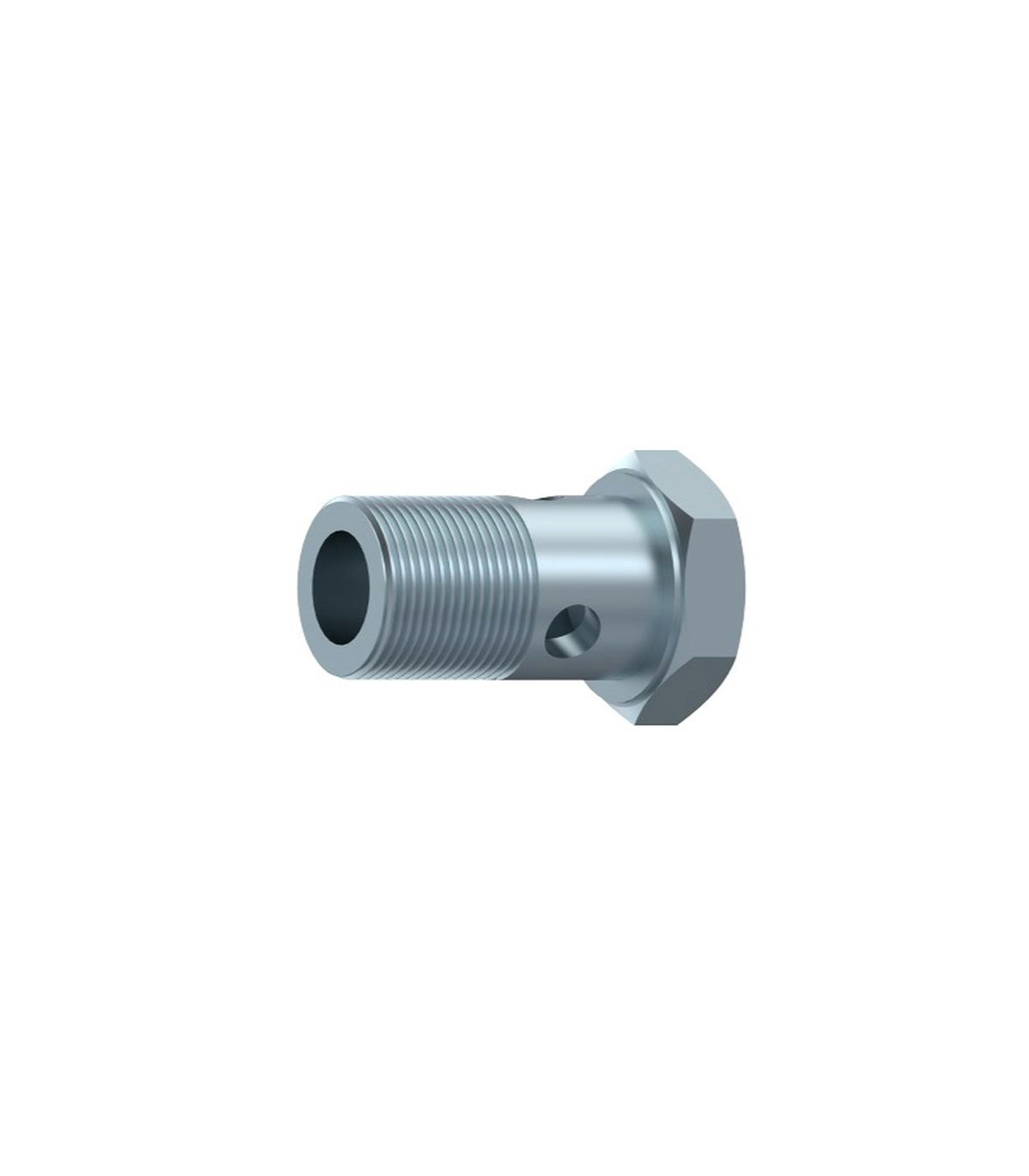

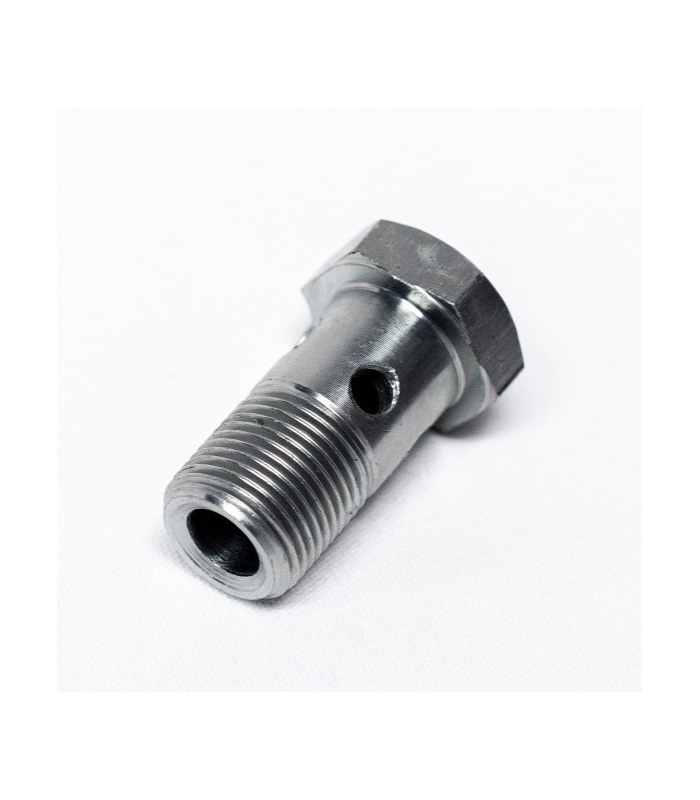

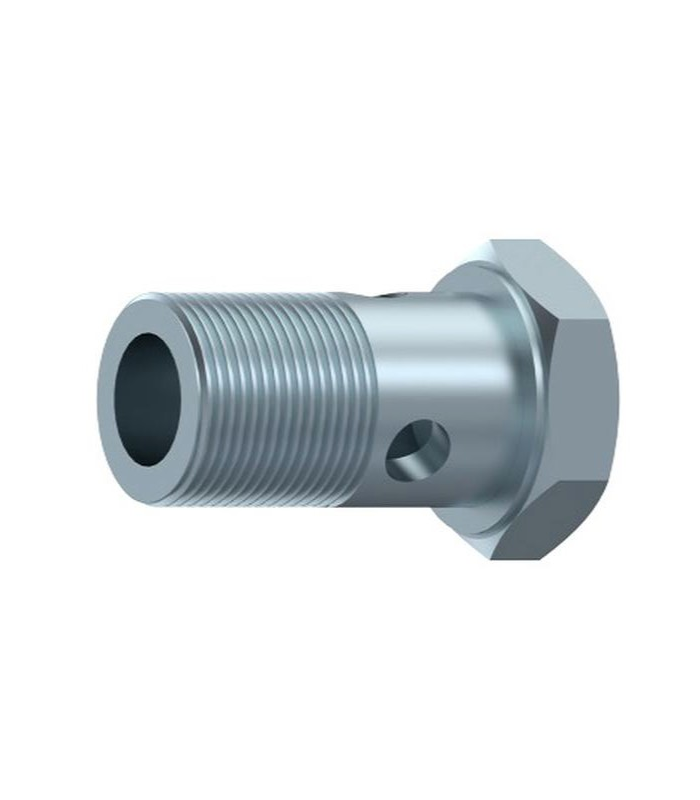

A simple screw is the hollow bolt used to attach a single banjo-type terminal to a pressure port.
Applications: automotive, agricultural machinery, industrial hydraulics.
Main features:
The simple screw is a hydraulic connection element designed to allow fluid to pass through its interior, combining fastening and flow functions in a single piece. It features an axial bore and a single lateral hole, facilitating the entry or exit of fluid to or from a connected component.
Technical specifications of a simple screw:
| Reference | R1 | HEX1 | ØC | L | L1 |
| 44070005 | 1/8" | 14 | 6 | 26 | 21 |
| 44070009 | 1/4" | 19 | 6 | 34 | 27.6 |
| 44070013 | 3/8" | 22 | 9 | 39.0 | 32 |
| 44070019 | 1/2" | 27 | 13 | 47.5 | 38.5 |
| 44070025 | 3/4" | 32 | 16 | 59 | 49 |
| 44070029 | 1" | 27 | 22 | 69 | 58 |
