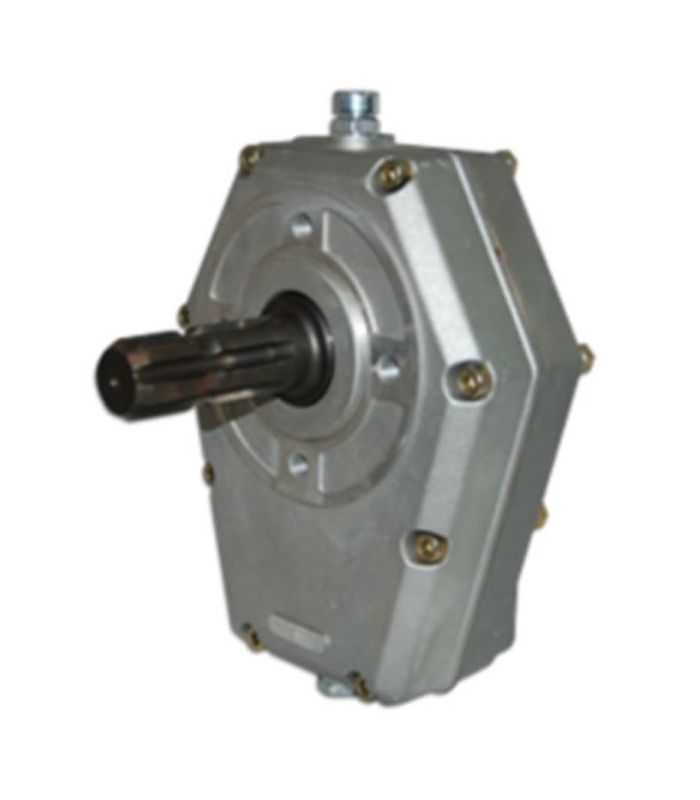

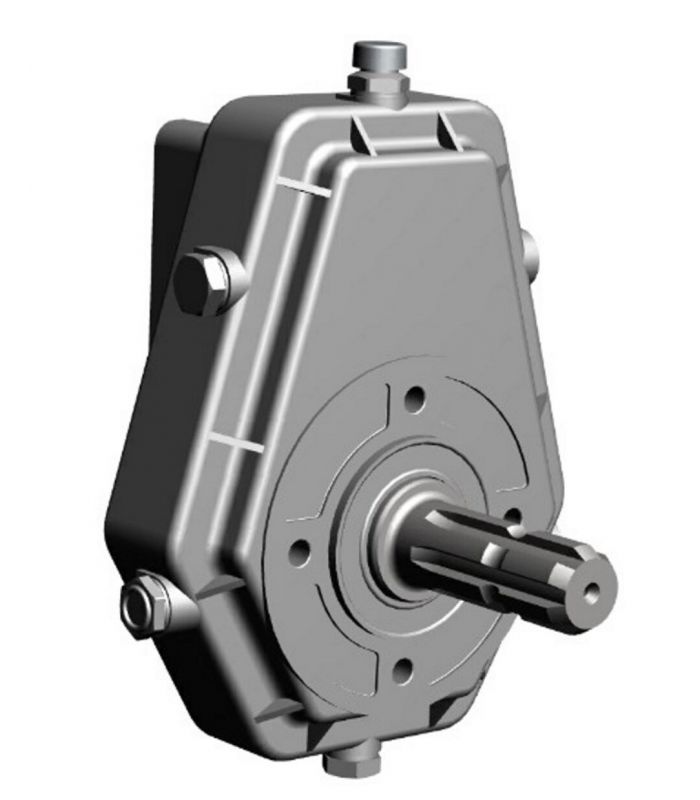

SPEED MULTIPLIER TRACTOR MALE TAKE

The tractor PTO speed multiplier is a mechanism used to adapt the power and speed generated by an engine. Therefore, a PTO speed multiplier works to connect the high-pressure hydraulic pump to the tractor's PTO.

It is mainly used in agricultural and industrial applications where increased rotation speed is required.

Technical sheet:

For mounting on GR-3 and GR-2 type pumps
Male tractor socket shaft DIN-9611 1"-3/8 35mm (6 teeth)
Maximum 540 rpm on tractor intake.
Max pressure 200 bar
DIN-5482 motor crown
Multiplication ratio 1 : 3.5
Supplied without oil, we recommend SAE-90 type oil
Maximum temperature: 120ºC
Designed to withstand the most demanding conditions of agricultural or industrial work.
They are ideal for tractor implements (loader, forestry crane, wood splitter, chipper, backhoe, etc.)

€79.86 (tax included)

€66.00 (tax excl.)

SIZE

GR-2
GR-3

Reference:

48131

Description
Comments

Description

Speed multiplier male tractor socket

GR-3

Product Details

Reference 48131

Comments
