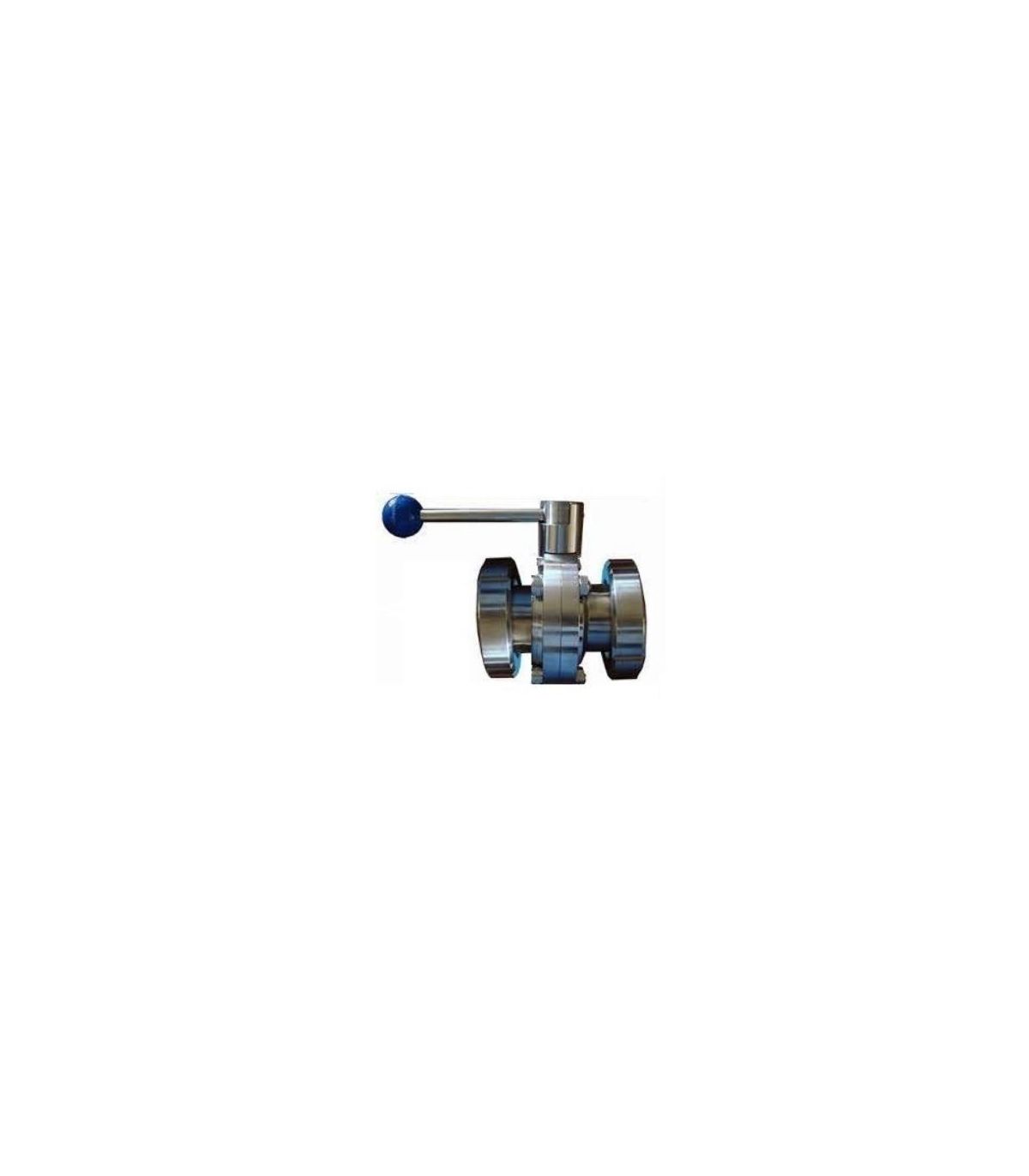

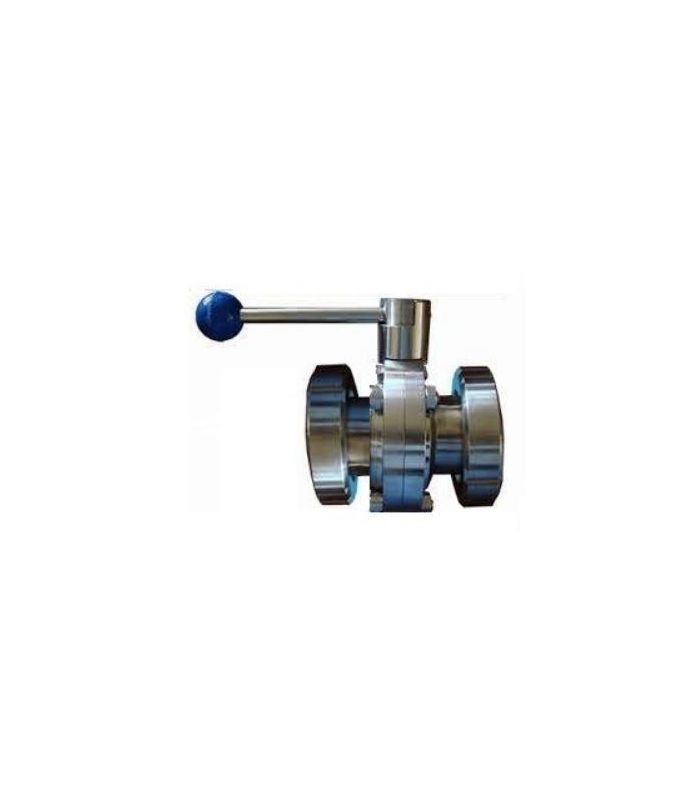

DIN-11851 FEMALE-FEMALE SANITARY BUTTERFLY VALVE

DIN-11851 FEMALE-FEMALE SANITARY BUTTERFLY VALVE

A DIN-11851 female-female sanitary butterfly valve is a type of quarter-turn valve designed for sanitary applications where both ends of the valve have a DIN 11851 female connection.

They are used in industries such as food, beverage, pharmaceutical and biotechnology.

Technical specifications:

  • Rotating female thread - rotating female
  • Constructed of INOX-304
  • Standard silicone gasket (other options available)
  • Safety handle.
  • Easy disassembly for cleaning.
  • Working pressure 10 bar.
  • Temperature 120°C
€133.10 (tax included)
€110.00 (tax excl.)
DN
  • DN-25
  • DN-32
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
Reference:
64540003
Description

DIN-11851 female-female sanitary butterfly valve

The DIN-11851 female-to-female sanitary butterfly valve is a shut-off device designed for fluid conveyance systems in hygienic applications. It incorporates DIN 11851 sanitary connections with swivel female ends, allowing for safe, removable, and easy maintenance.

Its compact design facilitates cleaning, inspection and maintenance operations in processes where hygiene is a fundamental requirement.

Compatible fluids:

  • Water
  • Milk and dairy products
  • Drinks
  • Food products

Applications

  • Food industry
  • Dairy industry
  • Breweries
  • Drinks
  • Cosmetics
  • Pharmaceutical
  • Sanitary processes with stainless steel piping
Product Details
64540003
