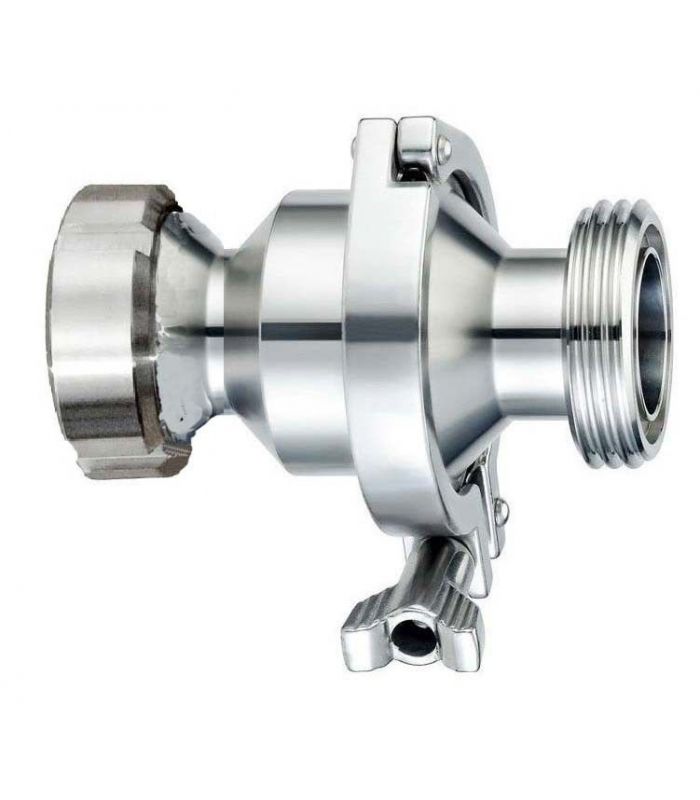

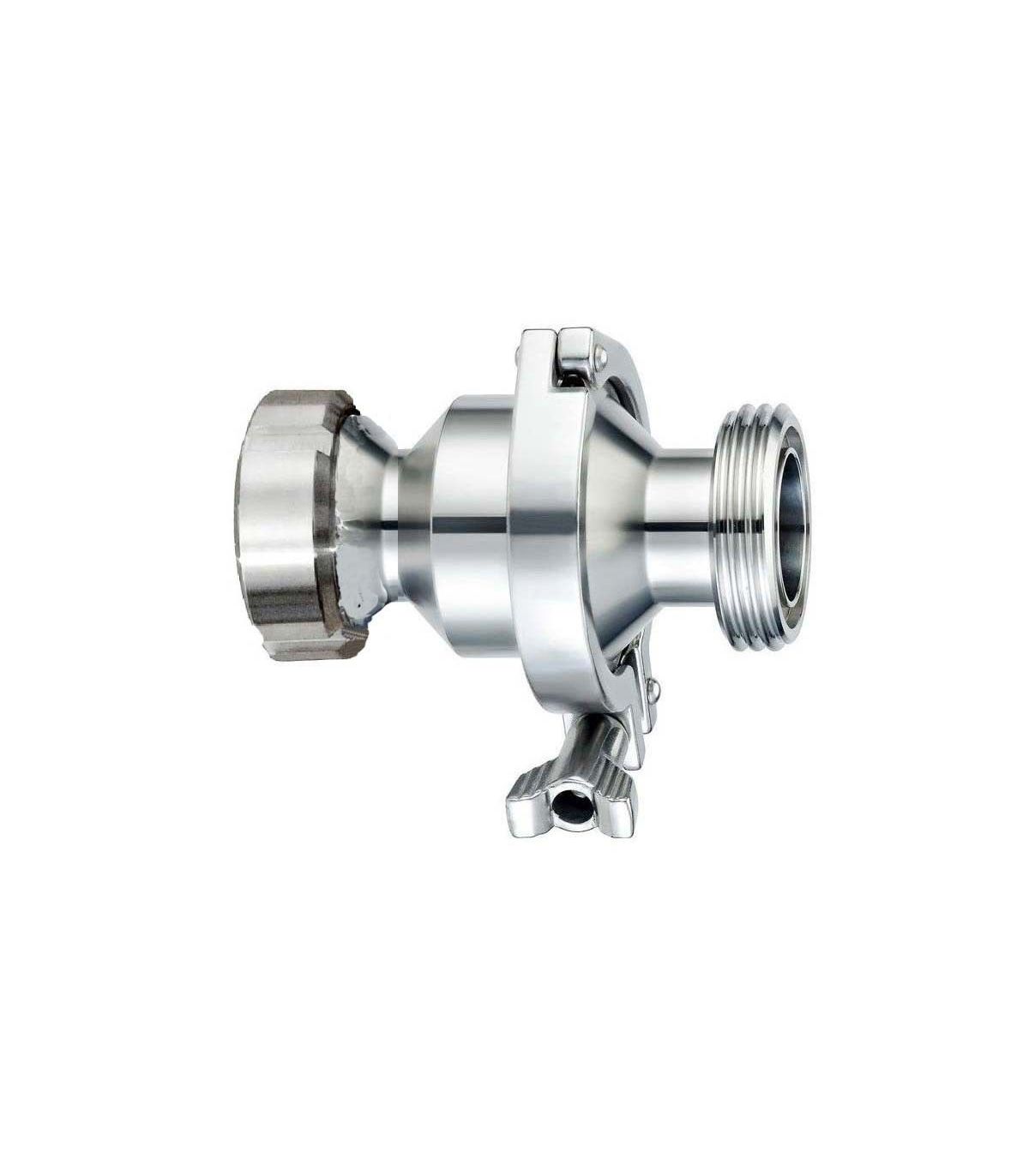

DIN-11851 MALE/FEMALE CHECK VALVE

DIN-11851 MALE/FEMALE CHECK VALVE

A DIN-11851 male-female check valve allows fluid flow in one direction only and prevents backflow, thus preventing backflow and possible cross-contamination or damage to sensitive equipment.

Applications: Pump protection, Dosing systems, Filling and packaging lines, CIP/SIP circuits, Beverage and dairy processes.

Technical sheet:

  • Made of 304 stainless steel.
  • Sanitary polishing.
  • Silicone gasket.
  • Threaded ends according to DIN-11851
  • Maximum pressure 10 bar.
  • Maximum temperature 120ºC
  • Removable for easy cleaning.

INDICATE THE DIRECTION OF RETENTION

€205.70 (tax included)
€170.00 (tax excl.)
DN
  • DN-25
  • DN-32
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
Reference:
64630003
Description

DIN-11851 male-female check valve

Product Details
64630003
