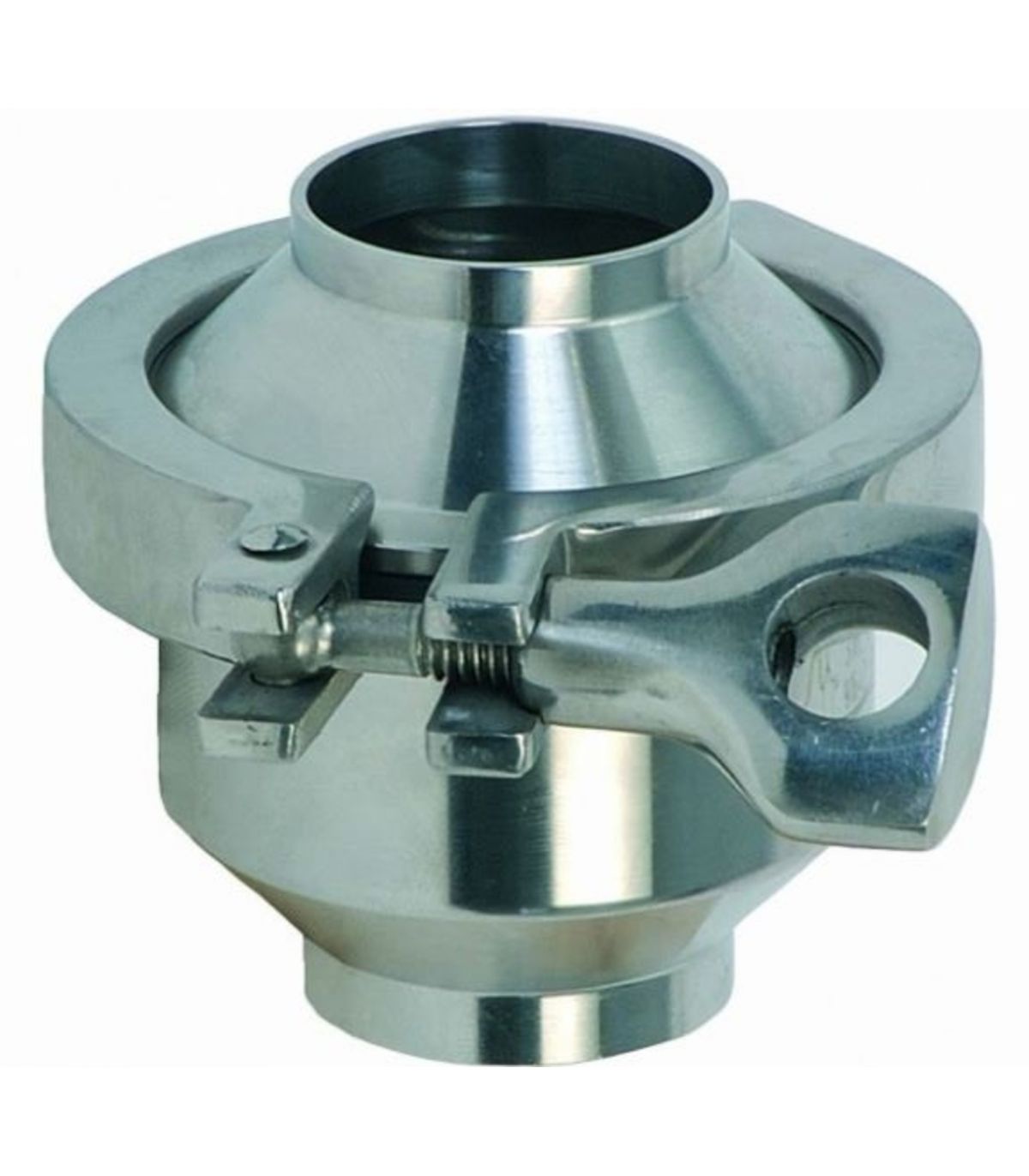

FOOD CHECK VALVE FOR WELDING PIPE DIN-11851

FOOD CHECK VALVE FOR WELDING PIPE DIN-11851

A DIN-11851 weld-on food-grade check valve ensures that fluid flows in only one direction and prevents backflow. It operates automatically. Depending on the spring configuration, it has a minimum opening pressure of 0.2 bar. It is ideal for installation at pump outlets for priming and water hammer prevention.

They are used in the food, beverage, cosmetics, health, chemical industries, etc.

Technical specifications:

  • Made of Inox-316
  • EPDM gasket (see other materials)
  • Spring opening pressure 0.2 bar.
  • Working pressure 10 bar.
  • Temperature -10ºC / 120ºC
  • Easy to clean and assemble.
  • Sanitary polished finish.
€85.18 (tax included)
€70.40 (tax excl.)
DN
  • DN-25
  • DN-32
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
Reference:
61180000
Description

Food grade check valve for welding pipe DIN-11851

The DIN-11851 food-grade weld-on pipe check valve is designed to allow fluid to flow in only one direction, preventing product backflow and protecting process equipment and installations.

Its hygienic design makes it especially suitable for applications in the food, dairy, brewing, pharmaceutical and cosmetic industries, where high standards of cleanliness and safety are required.

Applications

  • Food and drinks
  • Dairy industry
  • Brewery and winery
  • Pharmaceutical
  • Cosmetics
  • Biotechnology
  • Process water treatment

Technical data sheet for a food-grade weld-on pipe check valve DIN-11851:

Product Details
61180000
Comments
Related products
DIN-32676 WELDING CLAMP BUSHING DIN-32676 WELDING CLAMP BUSHING

€3.41 (tax excl.)
€4.13 (tax included)
DIN-32676 Clamp Bushing This type of bushing follows the specifications of the DIN-32676 standard, which defines dimensions and characteristics to ensure compatibility and quality of connections in industrial...
CLAMP DIN-32676 CLAMP DIN-32676

€4.79 (tax excl.)
€5.80 (tax included)
The DIN-32676 clamp is commonly used in the food, pharmaceutical, and biotechnology industries. It provides a sanitary, fast, and secure connection between tubes and components. Technical sheet: According to DIN-32676...
DIN CLAMP JOINT DIN CLAMP JOINT

€0.28 (tax excl.)
€0.34 (tax included)
A DIN clamp fitting is a component used in piping and fluid systems. Its design, based on the DIN standard, allows for easy installation and removal without tools. Very popular in the food, pharmaceutical and chemical...
12 other products in the same category:

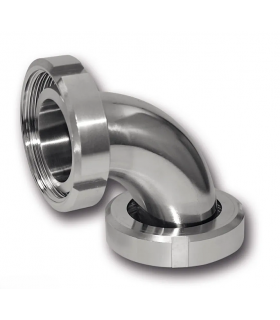

90° DIN-11851 FEMALE-FEMALE STAINLESS STEEL ELBOW

€81.04 (tax excl.)
€98.06 (tax included)
A DIN-11851 female-female stainless steel 90° elbow is a sanitary pipe fitting designed to change the direction of fluid flow at a 90° angle, featuring female threads at both ends according to DIN 11851. Applications:...
FEMALE BLINDING PLUG DIN-11851 INOX-304

€8.77 (tax excl.)
€10.61 (tax included)
A DIN-11851 INOX-304 female blanking plug is an industrial component used to seal the end of a pipe or fitting with a DIN-11851 female thread. It is made of 304 stainless steel, making it resistant to corrosion and...
DIN 11851 BUSHING FOR HOSE

€40.45 (tax excl.)
€48.94 (tax included)
DIN 11851 hose ferrule The DIN 11851 hose fitting is a type of connector used to join hoses to other system components, such as pipes or valves. It consists of a threaded part and a part that is inserted into the...
BUTTERFLY VALVE DIN-11851 MALE WELDING

€36.92 (tax excl.)
€44.67 (tax included)
A DIN-11851 male weld-on butterfly valve is used to control the flow of a fluid (liquid or gas) in a pipe. By rotating the disc, the passage of the fluid can be opened or closed. Applications in industries such as...

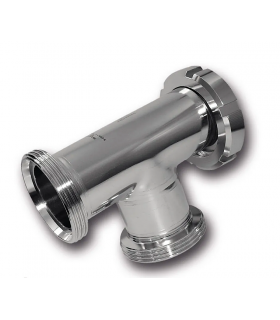

DIN-11851 MALE-FEMALE SIDE
