A DIN clamp fitting is a component used in piping and fluid systems. Its design, based on the DIN standard, allows for easy installation and removal without tools.
Very popular in the food, pharmaceutical and chemical industries due to its airtightness and corrosion resistance.
Technical specifications:

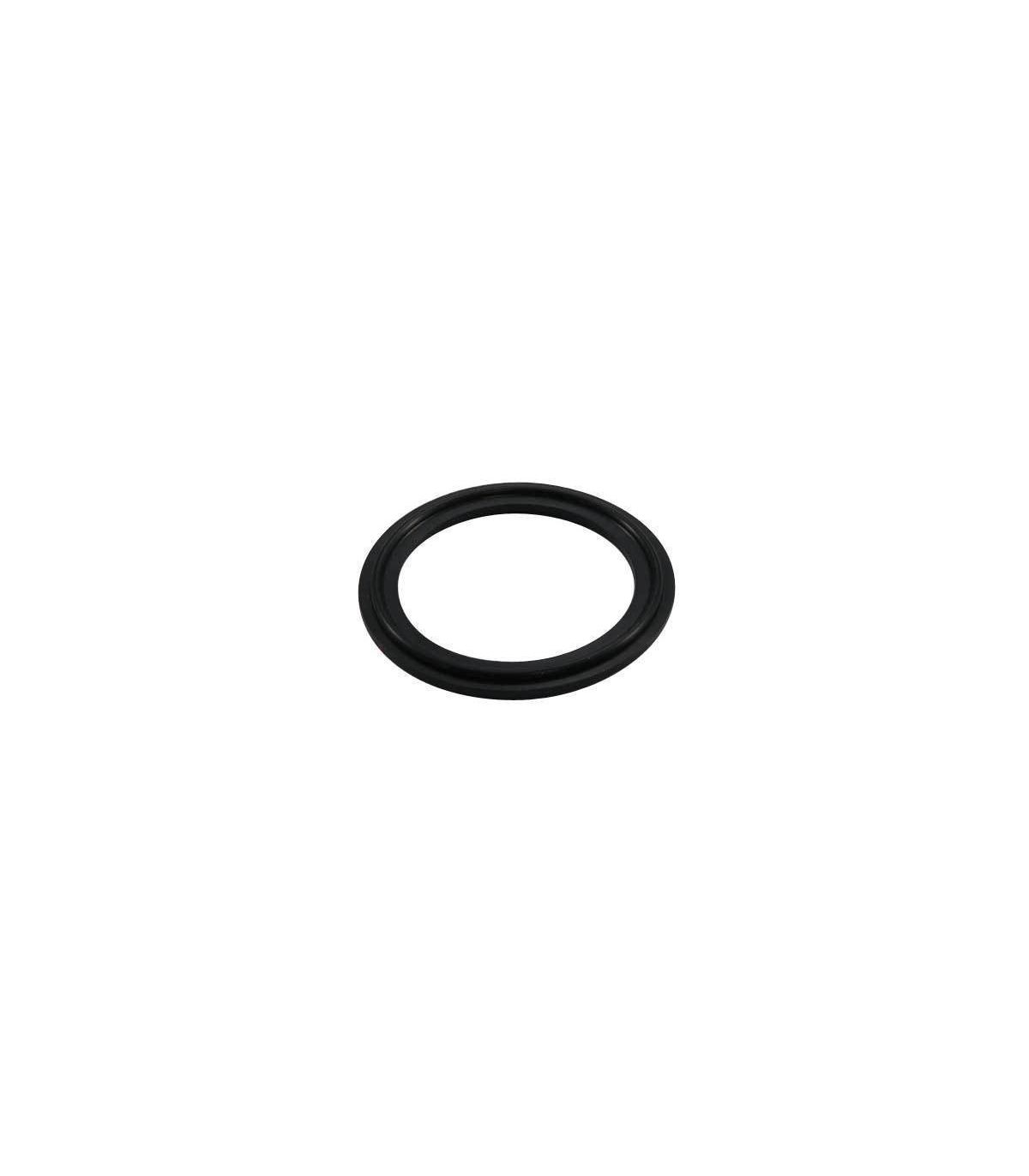

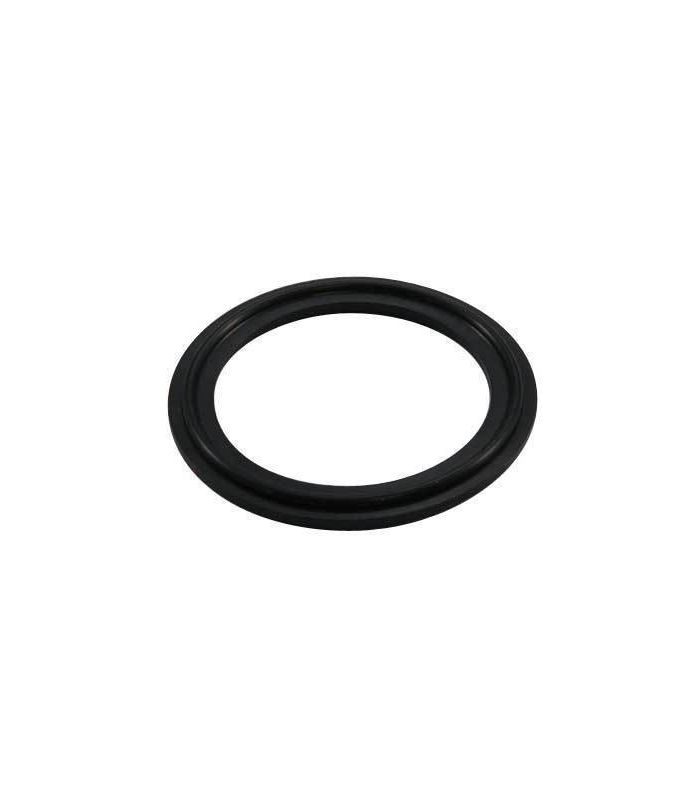

A DIN clamp joint is a hygienic sealing element used in clamp-type connections according to DIN standards, designed to ensure a watertight seal between two ferrules or pipe ends in sanitary installations and is compressed by means of a clamp clamp, ensuring a watertight, removable and easy-to-clean joint.
Technical data sheet for the DIN clamp joint:
| DN | Ød5 | Ød3 |
| 15 | 34 | 16.2 |
| 20 | 34 | 20.2 |
| 25 | 50.5 | 26.2 |
| 32 | 50.5 | 32.2 |
| 40 | 50.5 | 38.2 |
| 50 | 64 | 50.2 |
| 65 | 91 | 66.2 |
| 80 | 106 | 81.2 |
| 100 | 119 | 100.2 |
