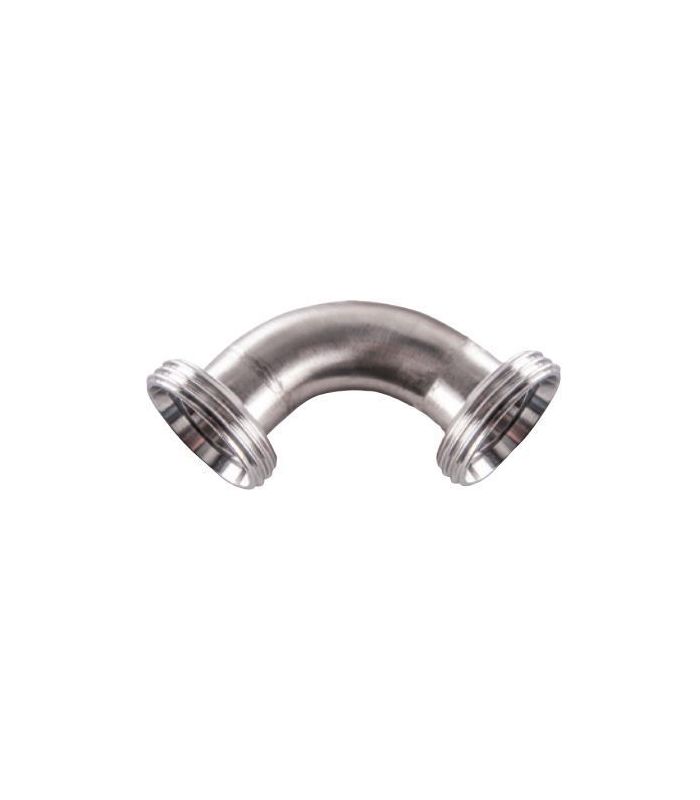

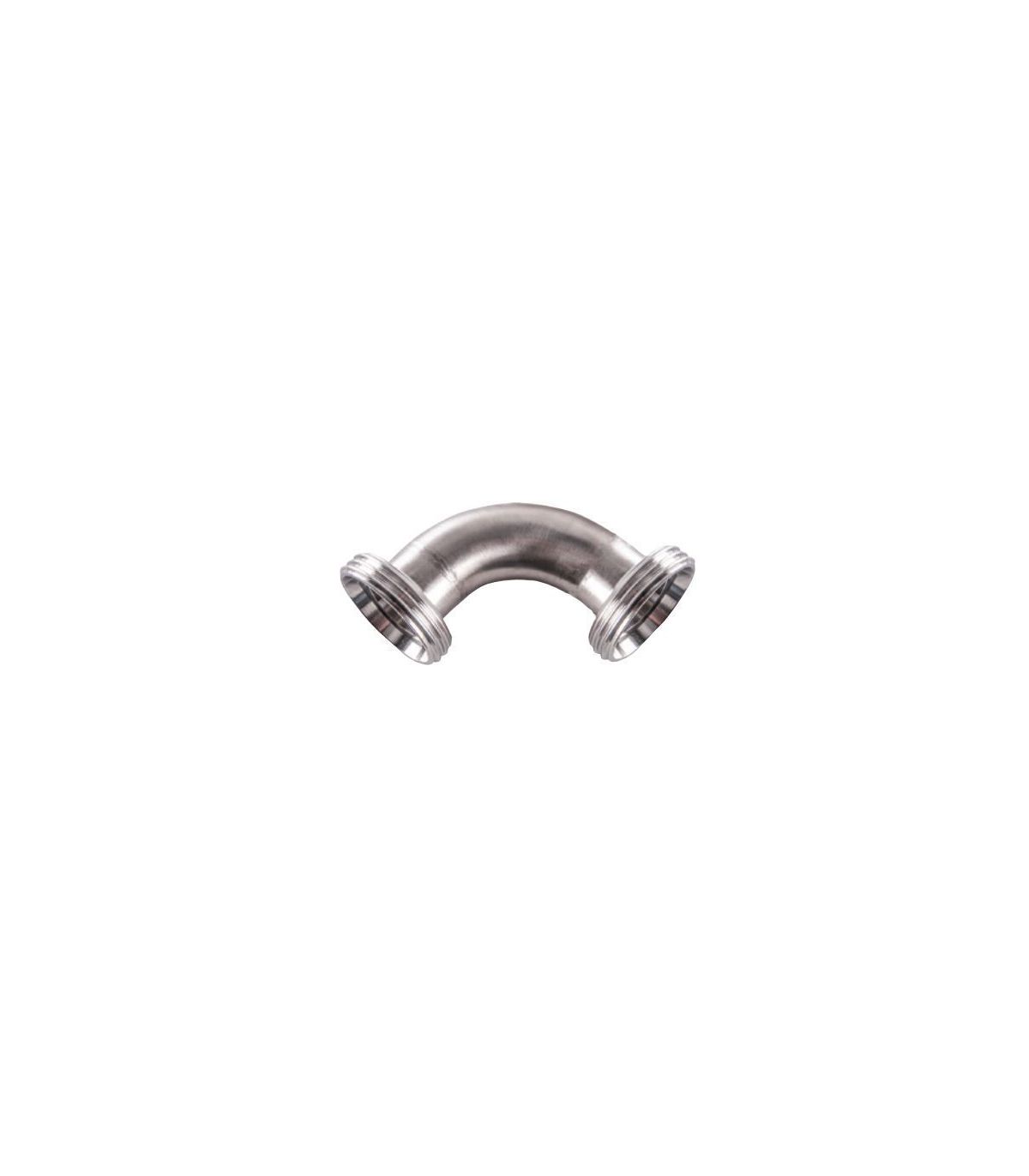

ELBOW 90º DIN-11851 MALE-MALE STAINLESS STEEL

ELBOW 90º DIN-11851 MALE-MALE STAINLESS STEEL

A DIN-11851 male-to-male stainless steel 90° elbow is a sanitary pipe fitting designed to change the direction of a flow line by 90°.

Applications: Food and beverage industry, Pharmaceutical and biotechnology industry, Cosmetics industry.

Technical specifications:

  • Constructed from forged stainless steel 304 (available in stainless steel 316)
  • Working pressure 10 bar.
  • Thread according to DIN-405
  • Employees in the food and pharmaceutical industries.
€90.05 (tax included)
€74.42 (tax excl.)
DN
  • DN-25
  • DN-32
  • DN-40
  • DN-50
  • DN-65
  • DN-80
  • DN-100
Reference:
64690001
Description

Elbow 90º DIN-11851 male-male stainless steel

The DIN-11851 male-to-male stainless steel 90° elbow is a sanitary fitting designed to change the flow direction in 90-degree pipe installations, maintaining a detachable and hygienic connection. This type of elbow allows the connection between two DIN 11851 female fittings using male threaded ends, ensuring a watertight seal with a sanitary gasket and union nut.

It is especially suitable for process lines in the food, dairy, pharmaceutical and chemical industries.

Applications

  • Food industry (milk, beer, wine, beverages)
  • Dairy facilities
  • Pharmaceutical and cosmetics industry
  • CIP/SIP cleaning systems
  • Low-aggressiveness chemical processes
  • Sanitary piping networks DIN 11851
Product Details
64690001
