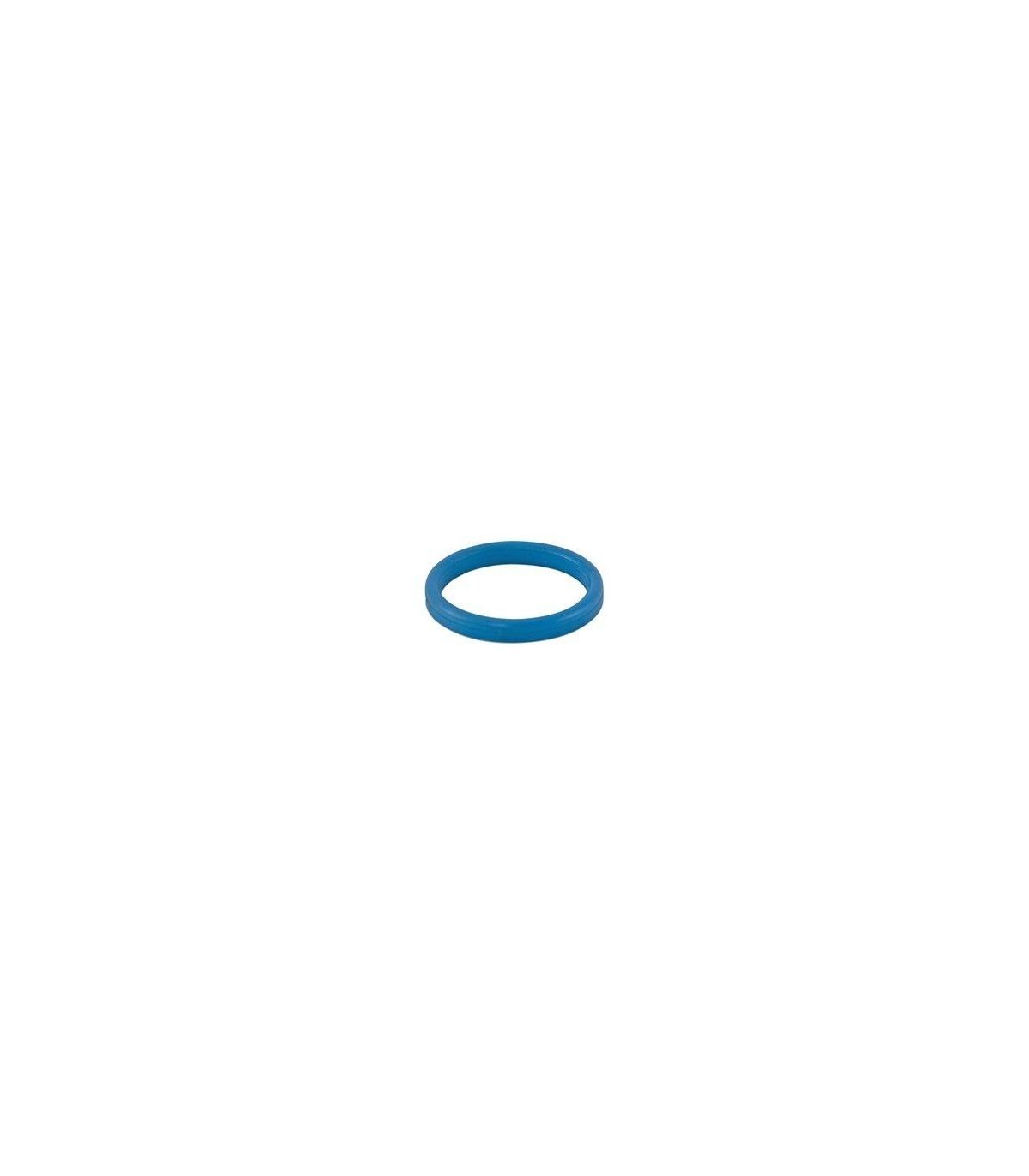

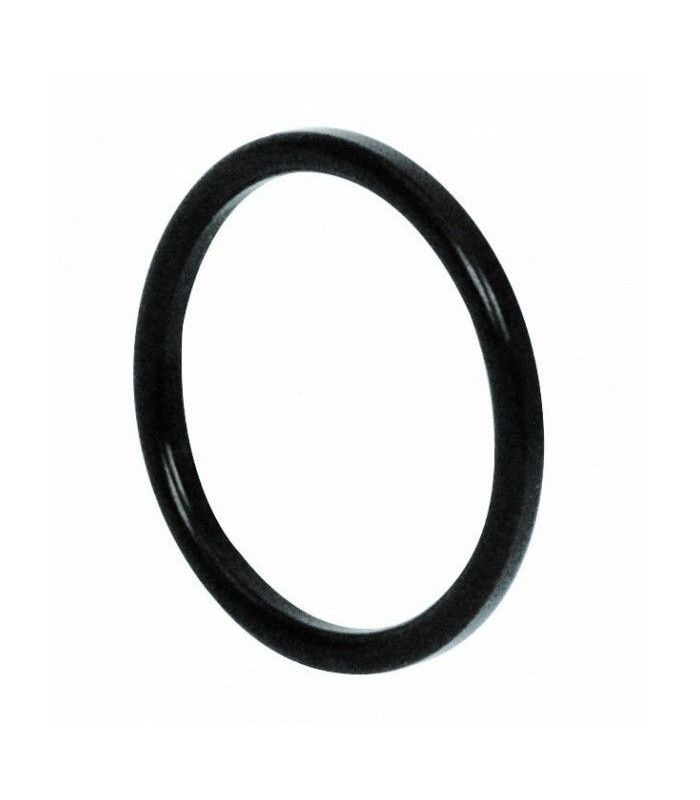

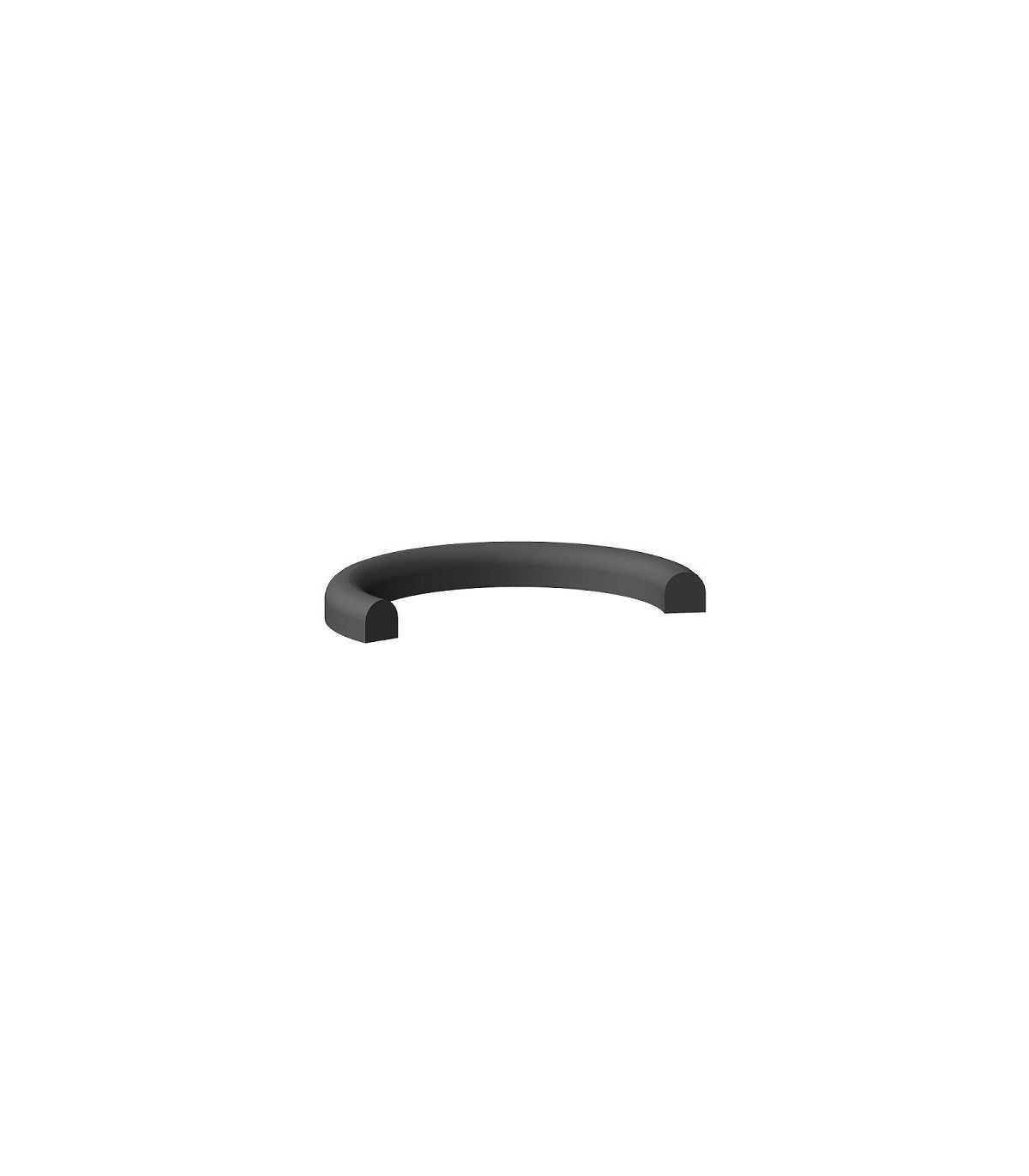

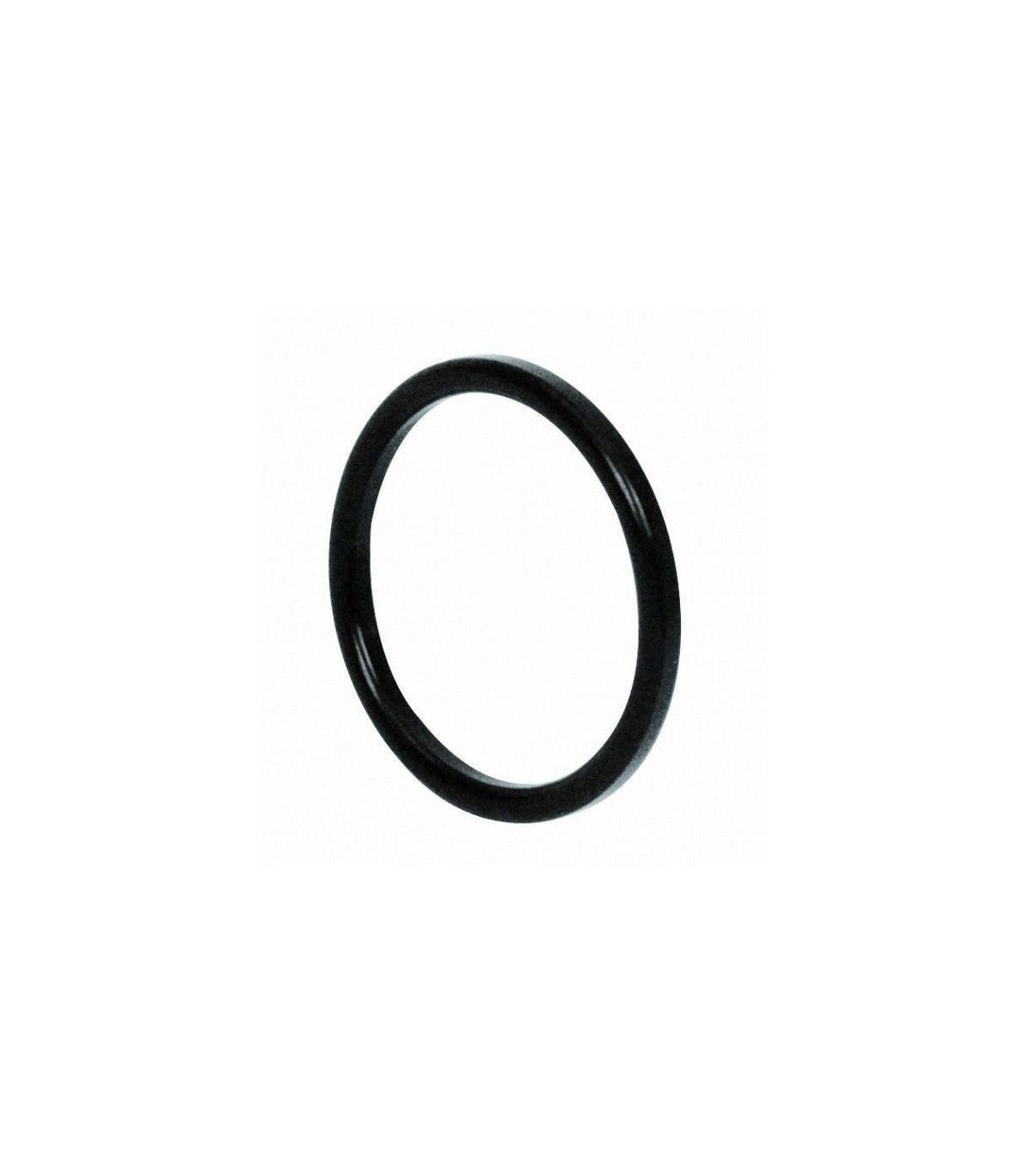

A DIN 11851 male fitting gasket is a sealing element used to ensure a leak-proof and secure connection between a DIN-11851 male fitting and a pipe or hose. The gasket's primary function is to prevent leaks of liquids or gases through the connection.
Applications: Food and beverage industry, Pharmaceutical and biotechnology industry, Cosmetics industry, Sanitary piping systems.
Technical specifications:
A DIN 11851 male fitting gasket is a hygienic sealing element designed to ensure a watertight seal in detachable pipe joints that use the DIN 11851 standard. It is placed between the male fitting and the female part of the assembly, ensuring a tight seal when the DIN 11851 nut is tightened.
Technical data sheet for the gasket for DIN 11851 male fitting:
| Extent | DN | TO | B | C | Material | Weight (kg) |
| 1/2" | 15 | 4.5 | 18 | 26 | NBR/EPDM/Silicone | 0.003 |
| 3/4" | 20 | 4.5 | 23 | 33 | NBR/EPDM/Silicone | 0.003 |
| 1" | 25 | 5 | 30 | 40 | NBR/EPDM/Silicone | 0.004 |
| 1-1/4" | 32 | 5 | 36 | 46 | NBR/EPDM/Silicone | 0.004 |
| 1-1/2" | 40 | 5 | 42 | 52 | NBR/EPDM/Silicone | 0.005 |
| 2" | 50 | 5 | 54 | 64 | NBR/EDPM/Silicone | 0.006 |
| 2-1/2" | 65 | 5 | 71 | 81 | NBR/EPDM/Silicone | 0.007 |
| 3" | 80 | 5 | 85 | 95 | NBR/EPDM/Silicone | 0.008 |
| 4" | 100 | 5 | 104 | 114 | NBR/EPDM/Silicone | 0.012 |
