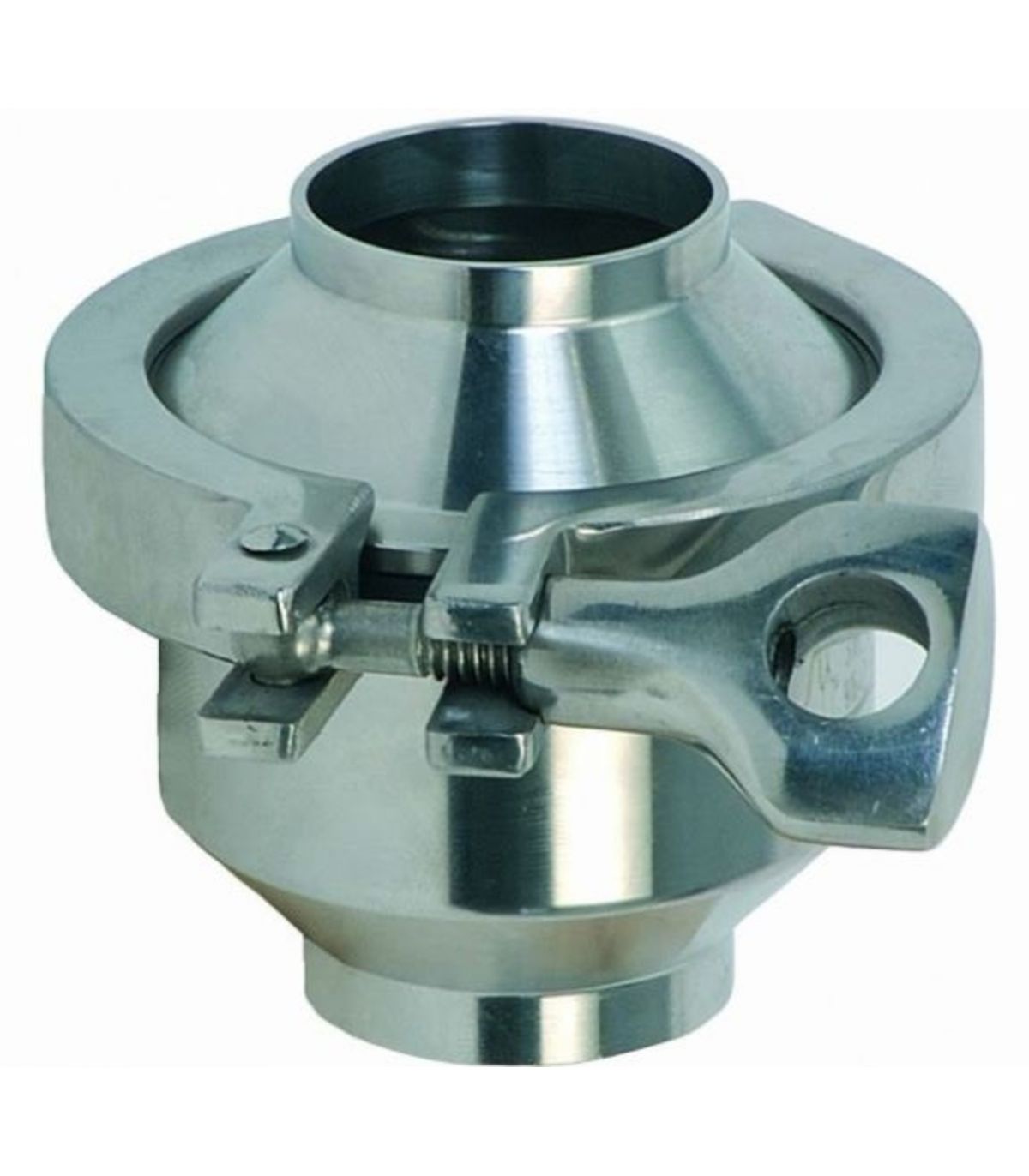

FOOD CHECK VALVE WELDING BWG-SWG

FOOD CHECK VALVE WELDING BWG-SWG

The BWG/SWG weld-on food-grade check valve ensures that fluid flows in only one direction and prevents backflow. It operates automatically. Depending on the spring configuration, it has a minimum opening pressure of 0.2 bar. It is ideal for installation at pump outlets for priming and water hammer prevention.

Applications: food, beverage, cosmetics, healthcare, chemical industries, etc.

Technical specifications:

  • Made of Inox-316, EPDM gasket (other materials available upon request)
  • Spring opening pressure 0.2 bar.
  • Working pressure 10 bar.
  • Temperature -10ºC / 120ºC
  • Easy to clean and assemble.
  • Sanitary polished finish.
€96.03 (tax included)
€79.36 (tax excl.)
SIZE
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
Reference:
61190000
Description

Food grade weldable check valve BWG/SWG

Technical data sheet for a food-grade weldable check valve (BWG/SWG):

Product Details
61190000
