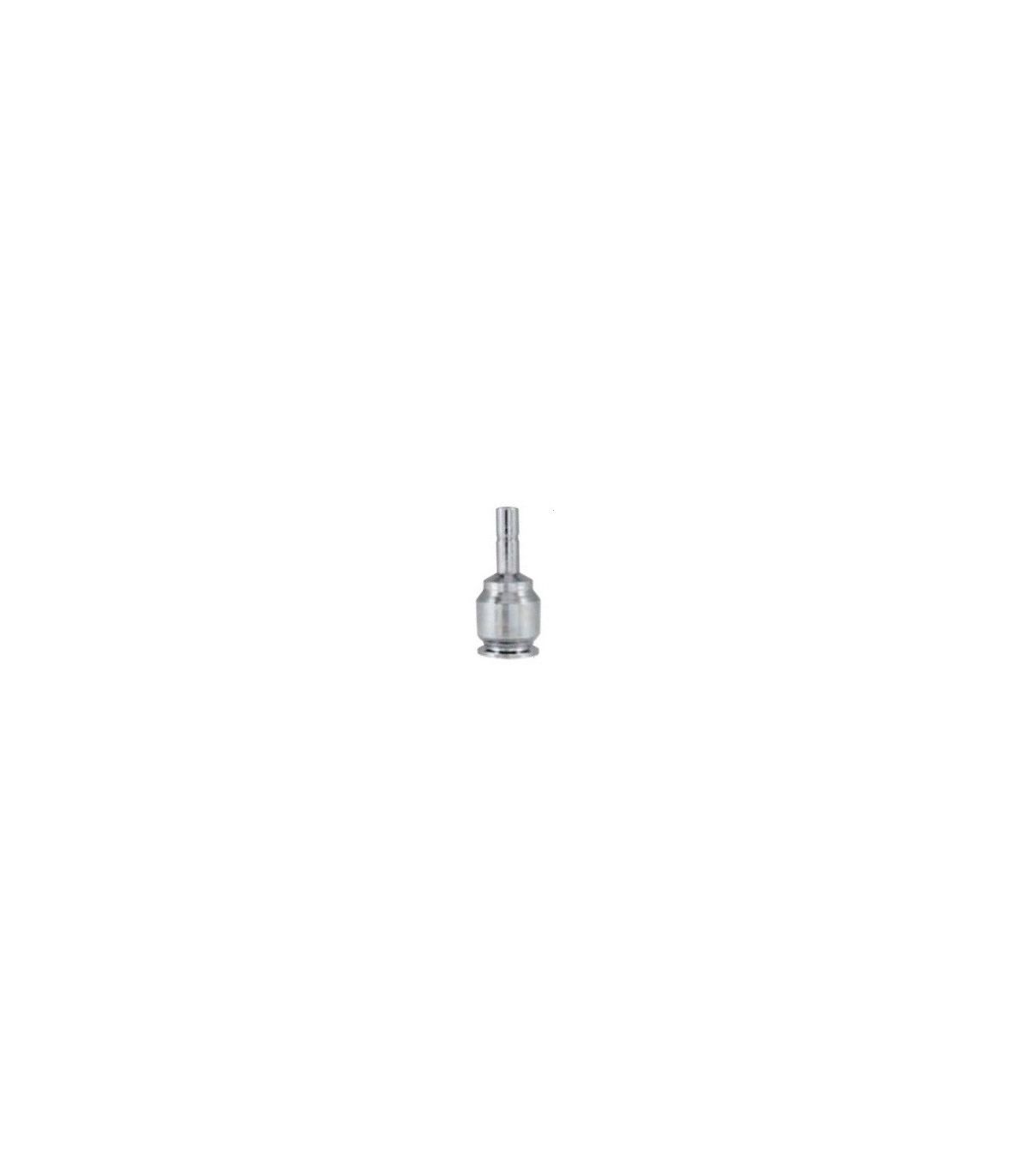

NEBULIZATION TUBE EXTENSION FITTING

NEBULIZATION TUBE EXTENSION FITTING

A misting tube expansion fitting is a fundamental component in misting irrigation systems. Its function is to connect smaller diameter tubes to larger diameter tubes, allowing for an increased water flow in a specific section of the system.

Common applications: Air conditioning systems, Agriculture, Industry, Dust control

Technical specifications:

  • Constructed of nickel-plated brass UNI EN 12164.
  • NBR board.
  • Pressure 0-80 bar.
  • Temperature -20 / 60ºC
  • Available in 1/4" and 3/8" threads
  • Available in Ø1/4 and Ø3/8 tubing
  • Recommended pipe: High-strength polyamide (1783)
€6.66 (tax included)
€5.50 (tax excl.)
Reference:
1785
Description

Nebulizer tube extension fitting

A nebulizer tube expansion fitting is a connection accessory used in micro-spraying or nebulization systems to join flexible tubes of different diameters, allowing you to go from a smaller line to a larger one within the pressurized water circuit, ensuring watertightness and continuity of flow.

Applications

  • Mist cooling systems
  • Evaporative cooling
  • Greenhouses and agriculture
  • Terraces, pergolas and outdoor restoration
  • Dust and humidity control
  • Industrial fine pulverization facilities

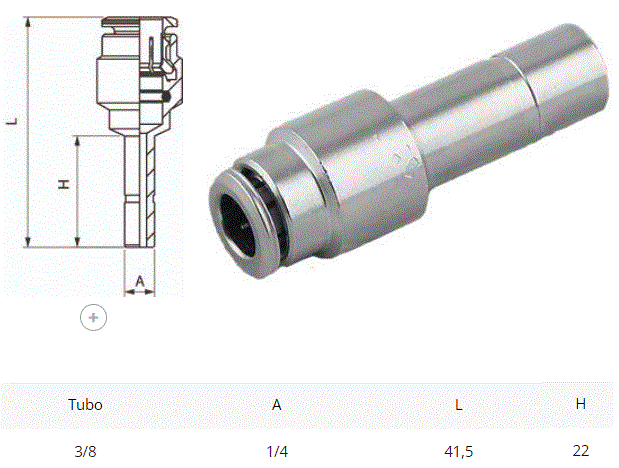

Technical specifications for a nebulizer tube extension fitting:

Product Details
1785
