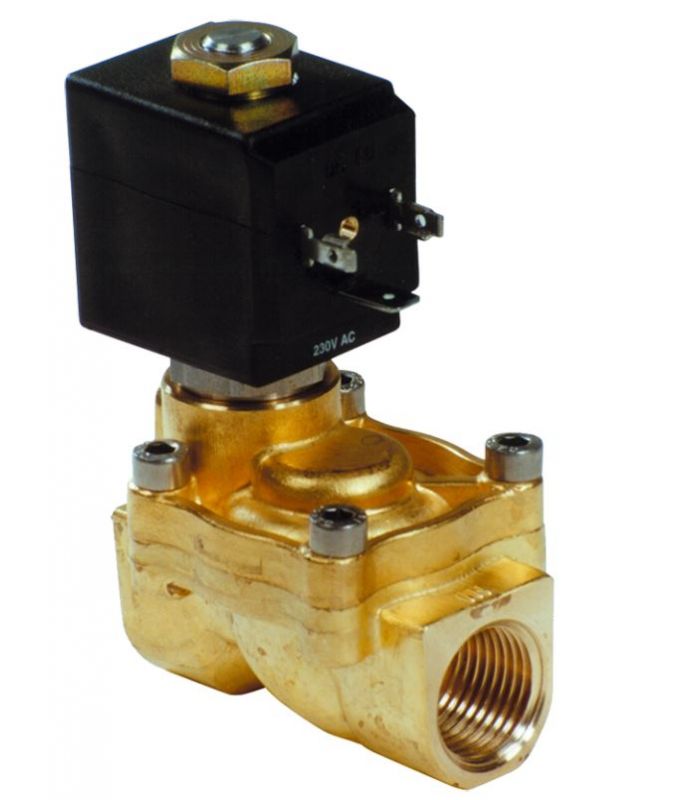

2/2 HIGH PRESSURE SOLENOID VALVE AL08

A 2/2 high-pressure AL08 solenoid valve is used in industrial systems to precisely and automatically control the flow of fluids (liquids or gases). It is designed to operate in systems requiring high pressures, such as industrial hydraulic or pneumatic systems. The valve has two positions and two ways.

Technical sheet:

Max pressure 50 bar.
3/8 - 1/2 - 3/4" thread
Preferred mounting position horizontal
It is assisted control and requires a differential pressure for correct operation.
It is possible to change the coil without having to disassemble the valve.
Various sealing gaskets depending on the fluid. Consult
Applications: Compressed air, inert gases, diesel, steam and in general all fluids compatible with the available sealing gaskets.
Maximum viscosity allowed: 5º Engler.
Coil type: C3
Supplied without coil

€101.76 (tax included)

€84.10 (tax excl.)

SELECT THE THREAD

3/8"
1/2"
3/4"

Reference:

60420013

Description
Comments

Description

2/2 high pressure solenoid valve AL08

Product Details

Reference 60420013
