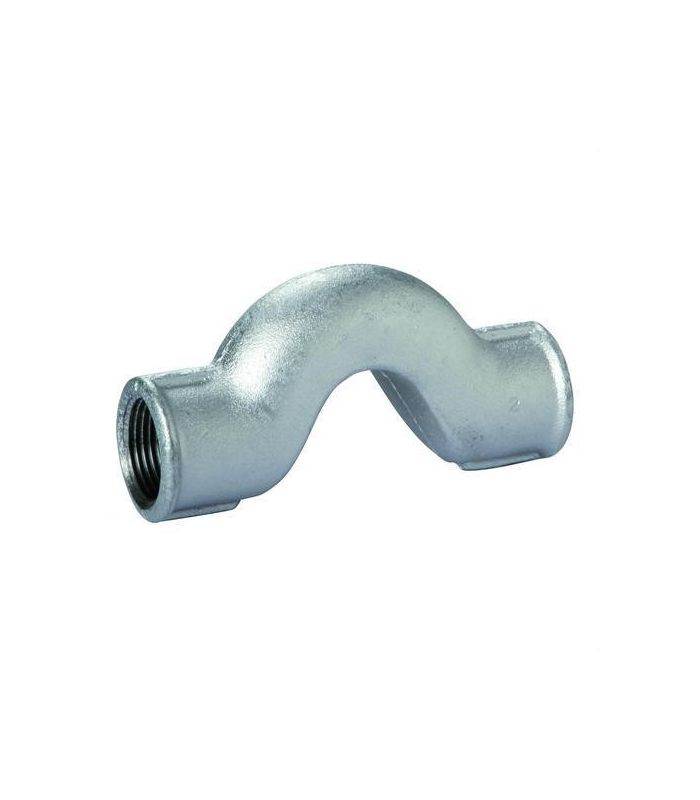

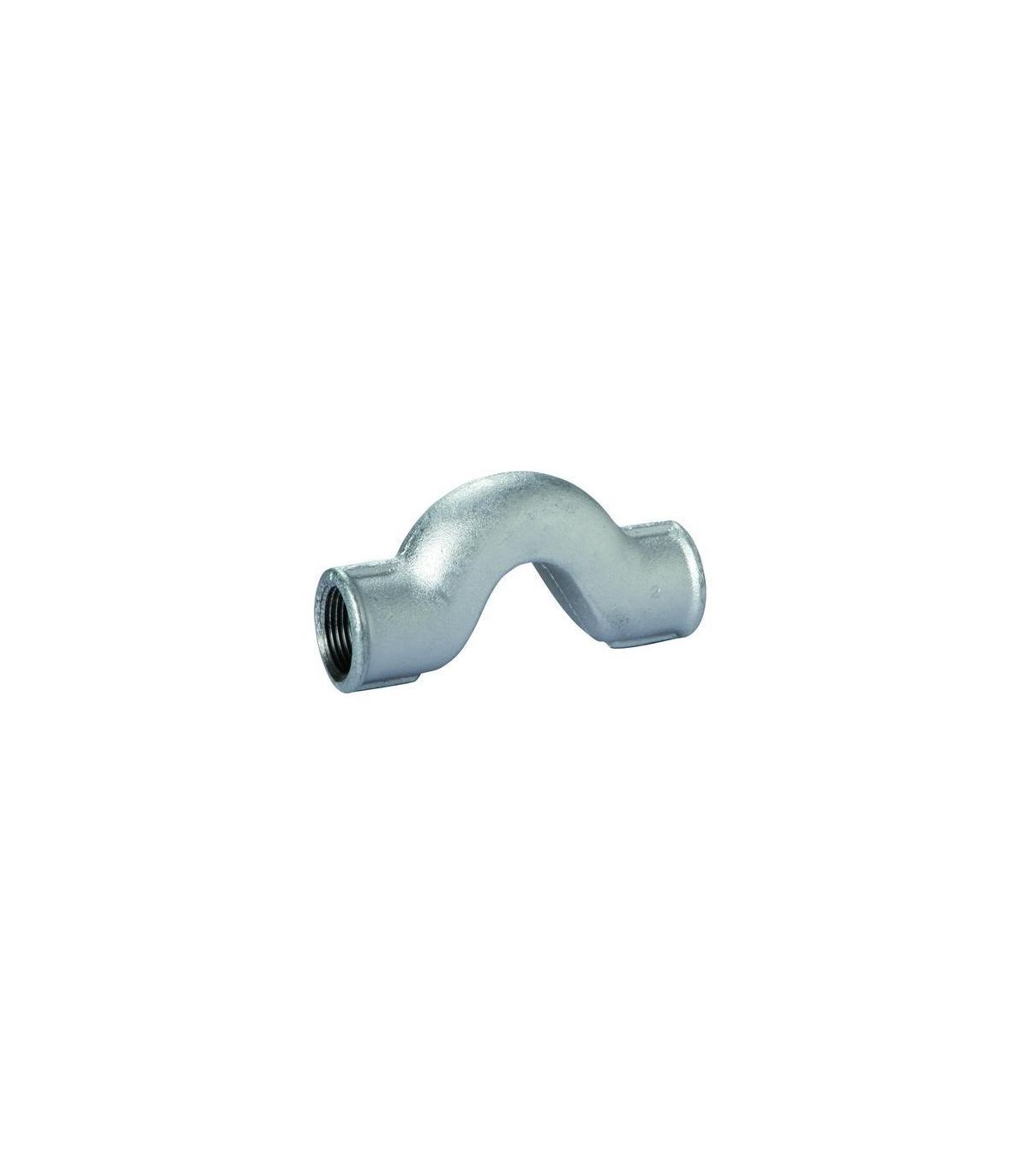

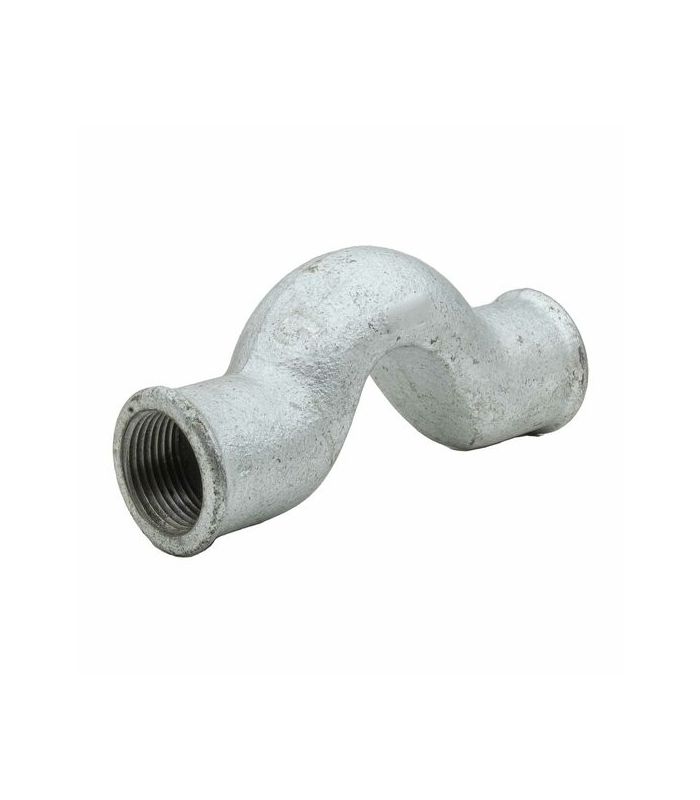

FIG. 85 GALVANIZED BRIDGE
FIG. 85 GALVANIZED BRIDGE
FIG. 85 GALVANIZED BRIDGE
FIG. 85 GALVANIZED BRIDGE

FIG. 85 GALVANIZED BRIDGE

Fig. 85 galvanized bridge is an accessory for plumbing and pipe installations. Its function is to connect two sections of pipe that are at different heights, allowing the fluid to circulate without interruptions.

It is commonly used in plumbing, irrigation systems and industry.

Technical data sheet:

  • Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
  • Fastening threads according to ISO 228/1
  • Nominal diameter dn under ISO 6708
  • Dimensions according to ISO 49 & DIN 2950
  • Manufactured under UNE standard en 10242
  • Working pressure:
  • Nominal pressure: PN-16 / PN-25 (300 lbs)
  • Working ambient temperature range: -20/+300ºC
€4.71 (tax included)
€3.89 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 1"
Reference:
12550016
Description

Fig. 85 galvanized bridge

Product Details
12550016
