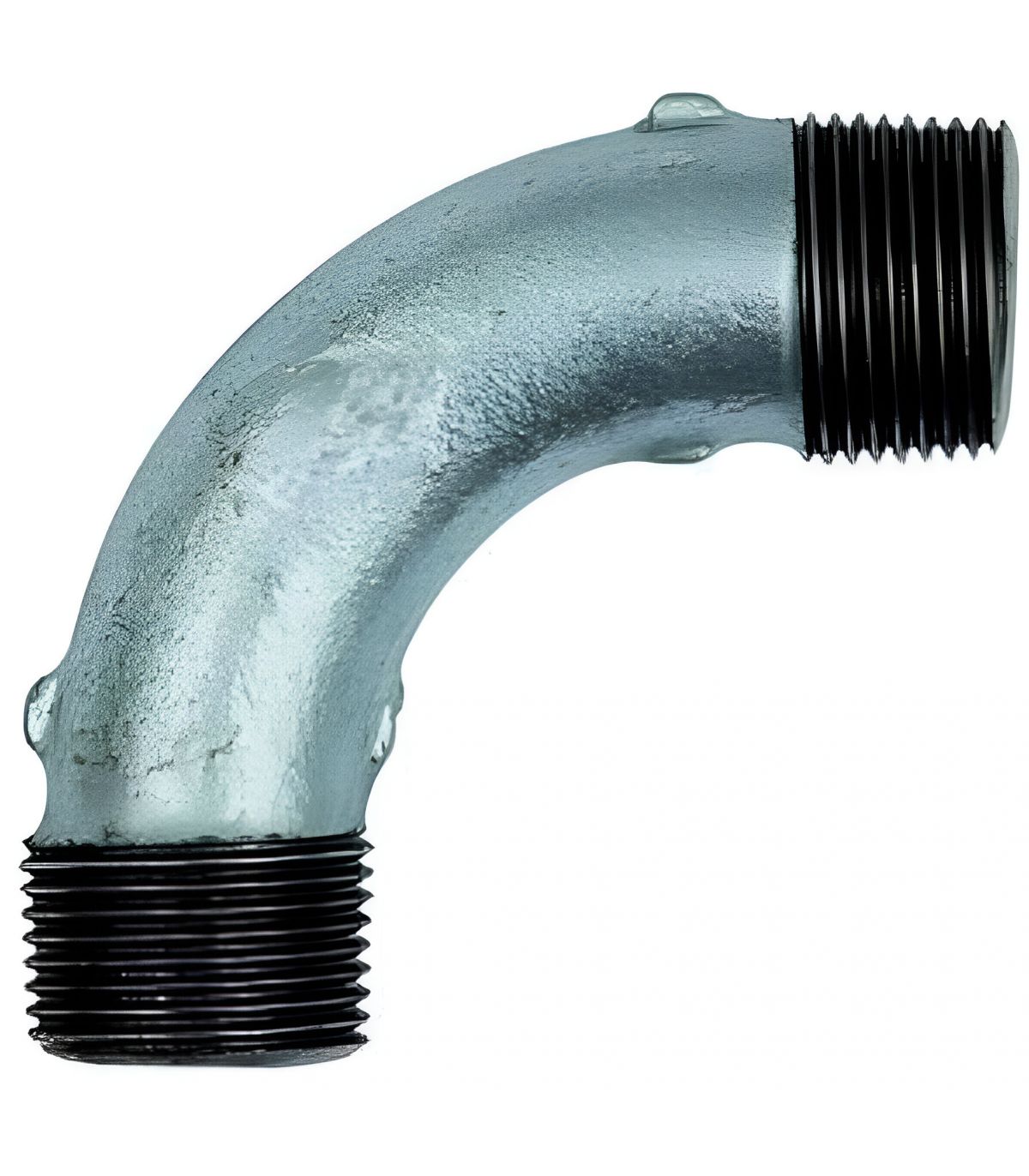

FIG. 3 90º CURVE GALVANIZED MALE

Fig. 3 Galvanized 90º male bend is an element of plumbing and piping systems. It functions to change the direction of a fluid (water, gas, etc.) at a 90º angle.

Both ends have a male thread. It needs to be screwed onto another fitting or pipe with a female thread.

Common uses: domestic installations, industry, construction.

Technical data sheet:

• Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
• Fastening threads according to ISO 228/1
• Nominal diameter dn under ISO 6708
• Dimensions according to ISO 49 & DIN 2950
• Manufactured under UNE standard en 10242
• Working pressure:
• Nominal pressure: PN-16 / PN-25 (300 lbs)
• Working ambient temperature range: -20/+300ºC
