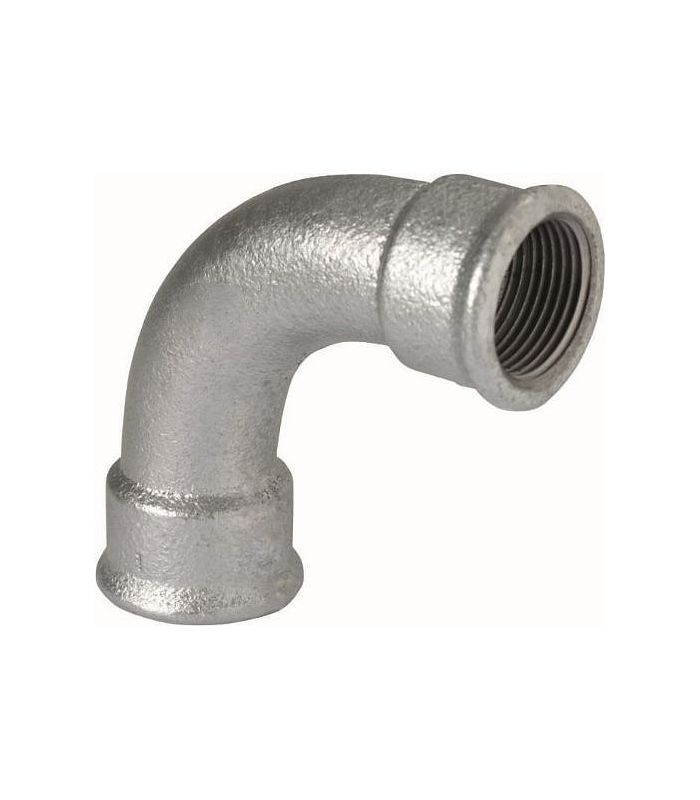

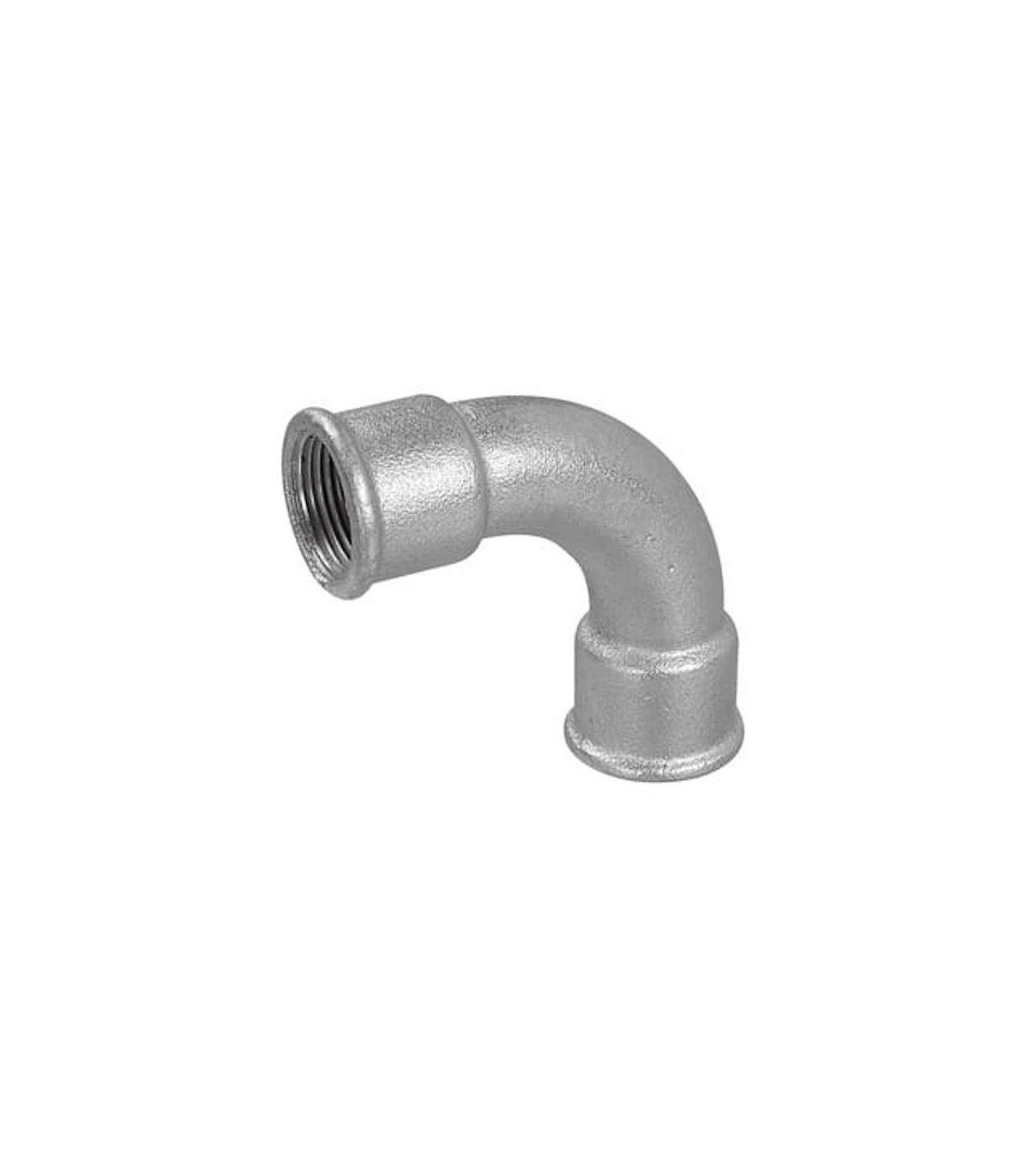

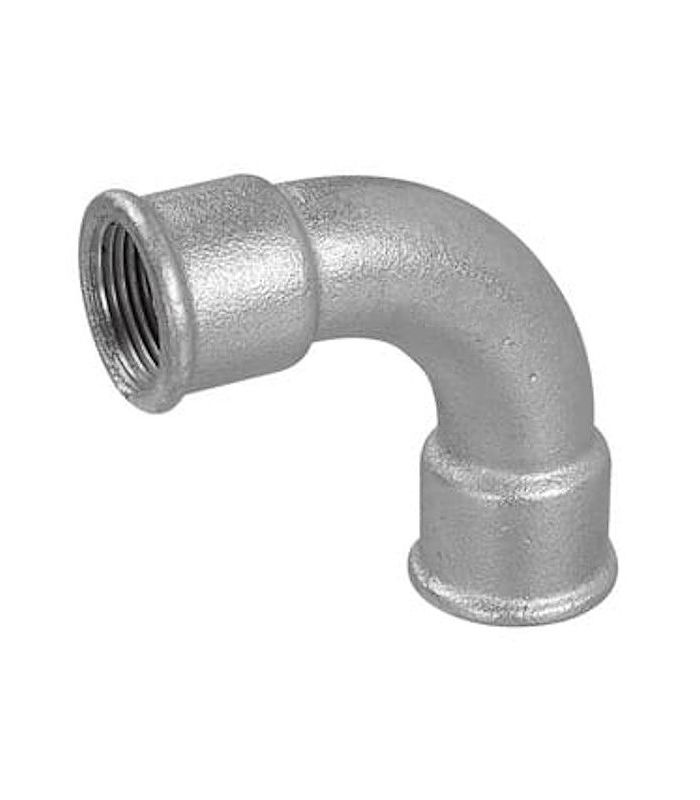

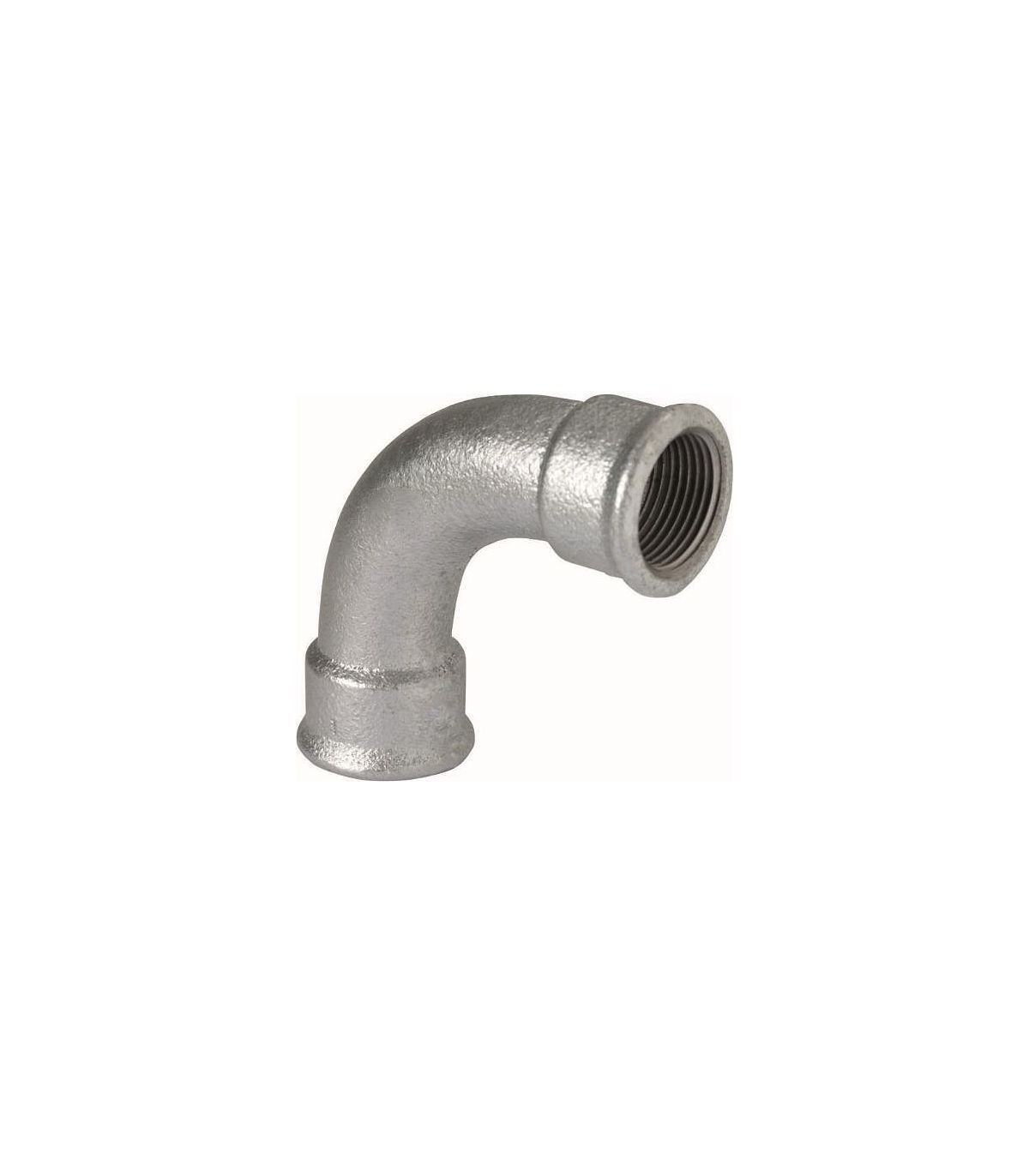

FIG. 2 GALVANIZED FEMALE 90º CURVE
FIG. 2 GALVANIZED FEMALE 90º CURVE
FIG. 2 GALVANIZED FEMALE 90º CURVE
FIG. 2 GALVANIZED FEMALE 90º CURVE

FIG. 2 GALVANIZED FEMALE 90º CURVE

Fig. 2 galvanized female 90º bend

It is a plumbing and piping system accessory used to change the direction of a fluid at a 90º angle.

Both ends have female threads. Requires male thread fittings to make the connection.

Technical data sheet:

  • Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
  • Fastening threads according to ISO 228/1
  • Nominal diameter dn under ISO 6708
  • Dimensions according to ISO 49 & DIN 2950
  • Manufactured under UNE standard en 10242
  • Working pressure:
  • Nominal pressure: PN-16 / PN-25 (300 lbs)
  • Working ambient temperature range: -20/+300ºC
€3.15 (tax included)
€2.60 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 2-1/2"
  • 3"
  • 4"
Reference:
12510016
Description

Fig. 2 galvanized female 90º bend

Product Details
12510016
