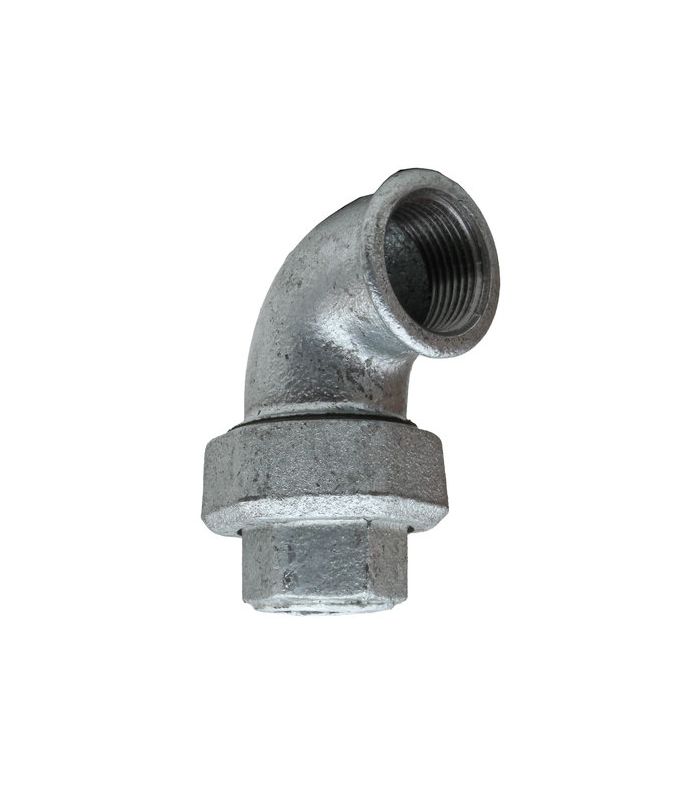

FIG. 96 ELBOW UNION 3 PIECE GALVANIZED FEMALE

FIG. 96 ELBOW UNION 3 PIECE GALVANIZED FEMALE

  • Union threads according to ISO 7/1 (DIN 2999 / BS 21)
  • Clamping threads according to ISO 228/1
  • Nominal diameter dn under ISO 6708
  • Dimensions according to ISO 49 & DIN 2950
  • Manufactured under UNE EN 10242 standard
  • Work pressure:
  • Nominal pressure: PN-16 / PN-25 (300 lbs)
  • Working ambient temperature range: -20/+300ºC
€6.97 (tax included)
€5.76 (tax excl.)
SELECT THE THREAD
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
Reference:
12590016
Description

Fig. 96 galvanized female 3-piece union elbow

Product Details
12590016
