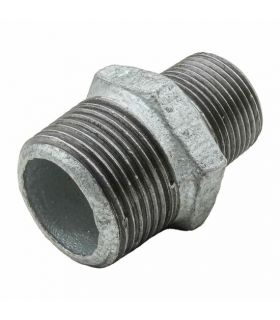

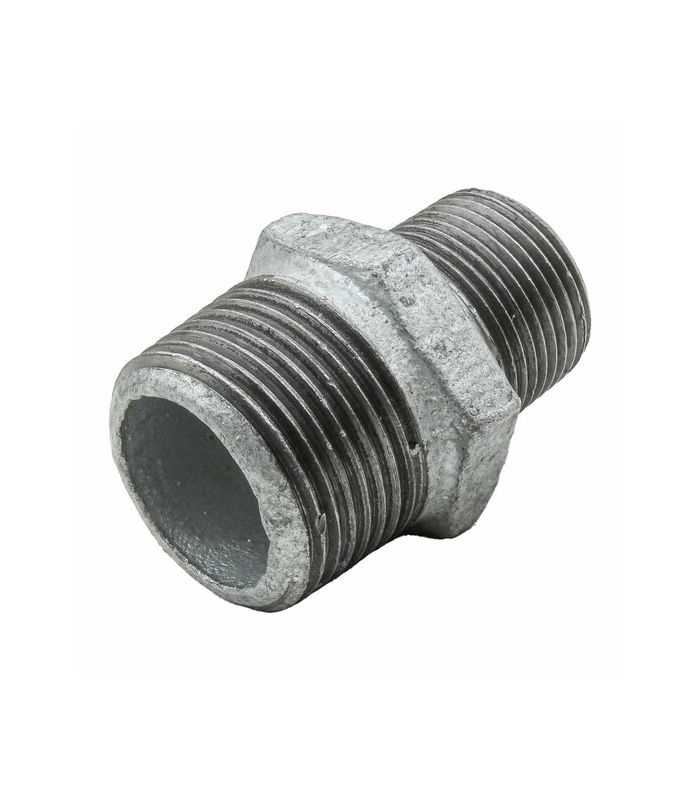

FIG. 245 GALVANIZED MALE-MALE REDUCER

Fig. 245 Galvanized male-male reduction

It is a piece with male threads at both ends and a decreasing internal diameter.

It is used to join two pipes or tubes of the same material but of different diameters in a safe and watertight manner, allowing the flow of liquids or gases.

Applications: Plumbing, air conditioning, irrigation, gas installations, etc.

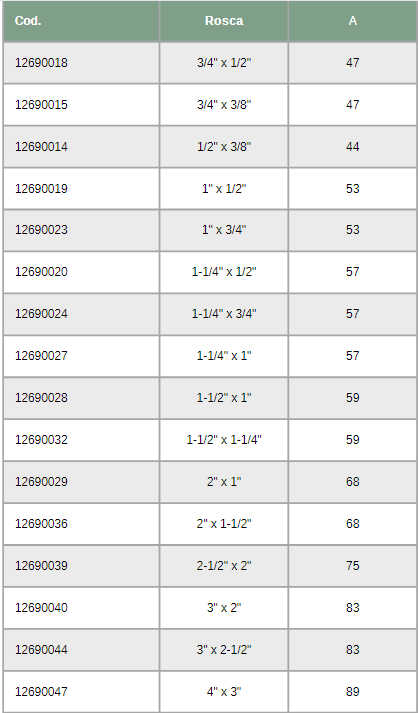

Technical data sheet:

• Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
• Fastening threads according to ISO 228/1
• Nominal diameter dn under ISO 6708
• Dimensions according to ISO 49 & DIN 2950
• Manufactured under UNE standard en 10242
• Working pressure:
• Nominal pressure: PN-16 / PN-25 (300 lbs)
• Working ambient temperature range: -20/+300ºC
